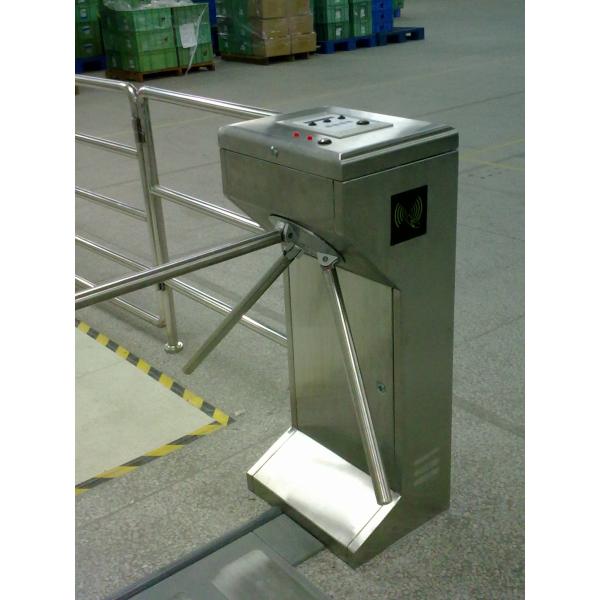

Bidirectional Vertical Tripod Turnstile , Office Automated Gate Systems

Product Classification

Model:DLX-301

==============================================

Product Presentation

1. Structure: the entire product appearance plate adopts 304 stainless steel plate stamping forming, rustproof, durable,

2. Dimensions: Length1200xWidth350× height 1000 (mm)

3. Weight:70kg.

4. Brake lever length: 750-850(mm)

5. Brake lever steering: one-way and two-way (optional)

6. Working environment: indoor and outdoor(It's better to have a shelter outside)

==================================================================

Standard features
◆ mechanical clamping function: automatic mechanical clamping during the operation of the gate is safer and more reliable;
◆ the electric control is driven by dc motor, which is stable and reliable.
◆ delay function: prevent the gate from hitting the bicycle;
◆ various control functions: through setting, the brake can be set to the normally open mode in a special period of time to meet the needs of a large number of people;
◆ access mode selection: to meet different access requirements, can be set as two-way swipe card or one-way swipe card plus free access;

=========================================================================================

Extend the functionality
◆ selection of soft leather gate: in order to better protect pedestrian traffic safety, the door body can choose red or blue foam gate.

=========================================================================================

Product parameters
◆ power supply :AC220V±20%V, 50Hz;
◆ operating environment temperature :-40℃ -70 ℃;
◆ relative humidity: less than 95%, no condensation;
◆ traffic speed: 40 people/min (IC card);
◆ dc motor: 20W/24V;
◆ input interface: standard switch signal;
◆ communication interface: RS485 communication distance: <1200 m;
◆ material: 304 stainless steel or 316 stainless steel;
◆ color: stainless steel wire drawing or spray, color optional.

=========================================================================================

To adapt to the workplace
◆ office space: business building, government offices, etc.
◆ institutions of science and education: colleges and universities, research institutes, libraries, etc.
◆ commercial service places: supermarkets, shopping malls, hotels, clubs, Banks, etc.
◆ leisure and entertainment places: parks, scenic spots, amusement parks, etc
◆ transportation station: bus station, railway station, subway station, airport, etc.
