High Temperature Resistance ESD Adhesive Tape 3.4mil Thickness
High Temperature Resistance ESD Adhesive Tape 3.4mil Thickness
High Temperature Resistance ESD Adhesive Tape 3.4mil Thickness
High Temperature Resistance ESD Adhesive Tape 3.4mil Thickness
High Temperature Resistance ESD Adhesive Tape 3.4mil Thickness
High Temperature Resistance ESD Adhesive Tape 3.4mil Thickness
High Temperature Resistance ESD Adhesive Tape 3.4mil Thickness
High Temperature Resistance ESD Adhesive Tape 3.4mil Thickness
Specifications
Brand Name :
KHJ
Model Number :
E1-MH306
Certification :
CE、ROHS、ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Supply Ability :
10000 M2/Day
Delivery Time :
1 Week
Packaging Details :
Poly Bag+ Carton
Payment Terms :
L/C, T/T
Product Name :
E1-MH306
Total Tape Thickness :
0.085±0.01
Adhesion to Steel :
3～5N/25mm
Tensile Strength at Break :
≥5（KN/M）
Elongation at Break :
≥5%
Maximum Operating Temperature :
200℃
Description

High Temperature Resistance ESD Adhesive Tape 3.4mil Thickness

Crepe paper asking Tape-E1-MH306 with super Anti-static and High temperature resistance

E1-MH306 is a crepe paper tape with super temperature resistant& anti- static performance,which is masking for important areas of PCB during wave soldering process.

Features And Benefits:

1. Excellent high temperature and anti-static performance

2. Fulfill RoHS standard

3. Easy tearing ,no glue residue

4. Good resistance to chemical solvents, high adhesion

Properties:

Item esd grid tape Typical Value
Imperial Metric
Total Thickness 3.4mil 0.085±0.01mm
Adhesion to Steel 0.68～1.14lbs/in 3～5N/25mm
Tensile Strength ≥28.56lbs/in ≥5(KN/M)
Elongation ≥5% ≥5%
Surface resistance 106-9ohms 106-9ohms
Peeling static charge ≤100V ≤100V
Heat Resistance 392℉ 200℃

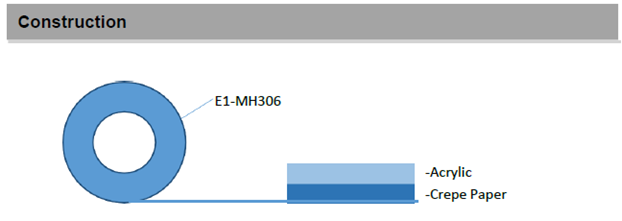

Construction:

High Temperature Resistance ESD Adhesive Tape 3.4mil Thickness

Application:

Mainly masking for gold finger and other socket during wave soldering process.

High Temperature Resistance ESD Adhesive Tape 3.4mil Thickness

Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.

Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.

Why choose us?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Environmentally friendly products.

Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
