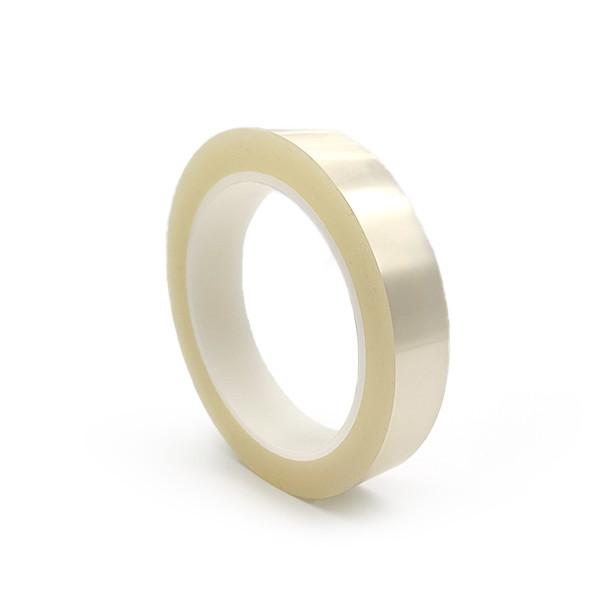

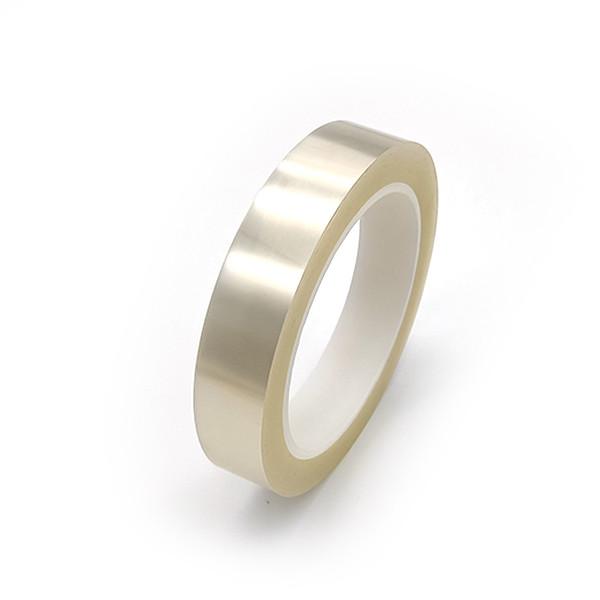

Anti Static ESD UV Release Tape Ower Adhesion After UV Irradiation ODM
Anti Static ESD UV Release Tape Ower Adhesion After UV Irradiation ODM
Anti Static ESD UV Release Tape Ower Adhesion After UV Irradiation ODM
Anti Static ESD UV Release Tape Ower Adhesion After UV Irradiation ODM
Anti Static ESD UV Release Tape Ower Adhesion After UV Irradiation ODM
Anti Static ESD UV Release Tape Ower Adhesion After UV Irradiation ODM
Anti Static ESD UV Release Tape Ower Adhesion After UV Irradiation ODM
Anti Static ESD UV Release Tape Ower Adhesion After UV Irradiation ODM
Specifications
Brand Name :
KHJ
Model Number :
E1-UV381S
Certification :
RoHS
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000 rolls per month
Delivery Time :
For samples 1-3 days and for mass order depends on your QTY.
Packaging Details :
Plastic bag + carton
Product Name :
E1-UV381S
Backing Thickness :
0.100 ±0.002mm
Total Tape Thickness :
0.120±0.005mm
Peeling strength :
Before UV: >6N/25mm; After UV: 0.3N/25mm
Tensile Strength at Break :
8KN/M
Elongation at Break :
≥45%
Description

Anti Static ESD UV Release Tape Ower Adhesion After UV Irradiation ODMAnti Static ESD UV Release Tape Ower Adhesion After UV Irradiation ODMAnti Static ESD UV Release Tape Ower Adhesion After UV Irradiation ODM

Anti Static UV Release Tape Ower Adhesion After UV Irradiation ODM

Anti-static high temperature UV-releasing adhesive polyester tape E1-UV381S lower adhesion after UV irradiation

E1-UV381S is a high performance product coating UV adhesive on the surface of polyester. It has high initial peeling strength. Low adhesion after UV irradiation and no residue after peeling off.

Features and Benefits:

1. High initial adhesion.

2. Low adhesion after UV curing, easy to separate.

Properties:

Item

 Typical Value

Test Method
Metric
Backing 0.100mm /
Total Thickness 0.120±0.005mm /
Peeling strength Before UV 6N/25mm GBT 2792-2014
After UV 0.03N/25mm
Tensile Strength ≥8(KN/M) GBT 30776-2014
Elongation ≥45% GBT 30776-2014
Surface Resistance 10 6~9 ohms /

Construction:

Anti Static ESD UV Release Tape Ower Adhesion After UV Irradiation ODM

Application:

1. Wafer, component, glass cutting and grinding process cutting.

2. 3D glass bonding process, component packaging transfer.

3. Soft lithium battery protection, metal and anti-static protection.

Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.

Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.

Why choose us?

1. Provide samples and best service.

2. Good production capacity and fast delivery.

Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Various designs.

Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
