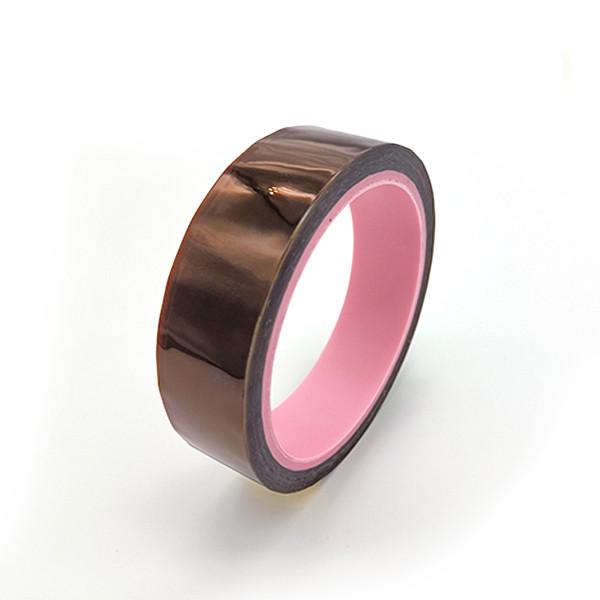

ESD Polyimide Heat Resistant Tape 290 °C 0.05 Thickness OEM ODM
ESD Polyimide Heat Resistant Tape 290 °C 0.05 Thickness OEM ODM
ESD Polyimide Heat Resistant Tape 290 °C 0.05 Thickness OEM ODM
ESD Polyimide Heat Resistant Tape 290 °C 0.05 Thickness OEM ODM
ESD Polyimide Heat Resistant Tape 290 °C 0.05 Thickness OEM ODM
ESD Polyimide Heat Resistant Tape 290 °C 0.05 Thickness OEM ODM
ESD Polyimide Heat Resistant Tape 290 °C 0.05 Thickness OEM ODM
ESD Polyimide Heat Resistant Tape 290 °C 0.05 Thickness OEM ODM
Specifications
Brand Name :
KHJ
Model Number :
E1-IH803H
Certification :
RoHS
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Supply Ability :
10000 square meters/day
Delivery Time :
3~5days after payment done
Packaging Details :
Plastic bag + carton
Payment Terms :
L/C, T/T
Product name :
E1-IH803H
Backing Thickness :
0.025mm
Total Tape Thickness :
0.05±0.005mm
Adhesion to Steel :
4N/25mm
Upmost Temperature :
290℃
Static Discharge (Removal from roll) :
<100V
Description

ESD Polyimide Heat Resistant Tape 290 °C 0.05 Thickness OEM ODM

High funcation high temperature resistant ESD polyemide tape E1-IH803H polyimide heat resistant adhesive tape with good heating resistance

E1-IH803H is a polyimide film-backed silicone adhesive tape with super heat resistance and extremely low electrostatic discharge properties. And insulation resistance of adhesive side is measurable.

Features And Benefits:

1. Low electrostatic discharge at unwind and removal.

2. Resistant high temperature up to 290℃.

3. Excellent tensile strength & Elongation.

4. RoHS Compliant.

Application:

Masking for golden finger of Print circuit boards when wave soldering or reflow soldering process, surface protection under the high temperature without any residue.

ESD Polyimide Heat Resistant Tape 290 °C 0.05 Thickness OEM ODM

Properties:

Product Units Test values
Backing Thickness: mm 0.025
Total Tape Thickness: mm 0.055±0.005
Tack ≥26(J.DOW/#)
Adhesion to Steel: N/25mm 4N
Tensile Strength at Break: KN/M ≥3.5
Elongation at Break: % ≥45%
Upmost Temperature ° C 290
Surface Resistance ohms 106~9ohms
Static Discharge(Removal from roll) Voltage <100V

Construction:

ESD Polyimide Heat Resistant Tape 290 °C 0.05 Thickness OEM ODM

Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.

Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.

Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. SGS certification.

3. Advanced production and processing equipment, environmentally friendly and reliable products.

Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
