2mil Low Static Heat Resistant Adhesive Tape For Golden Finger
2mil Low Static Heat Resistant Adhesive Tape For Golden Finger
2mil Low Static Heat Resistant Adhesive Tape For Golden Finger
2mil Low Static Heat Resistant Adhesive Tape For Golden Finger
2mil Low Static Heat Resistant Adhesive Tape For Golden Finger
2mil Low Static Heat Resistant Adhesive Tape For Golden Finger
2mil Low Static Heat Resistant Adhesive Tape For Golden Finger
2mil Low Static Heat Resistant Adhesive Tape For Golden Finger
Specifications
Brand Name :
KHJ
Model Number :
E2-IH823C
Certification :
RoHS
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Supply Ability :
10000 square meters/day
Delivery Time :
3~5days after payment done
Packaging Details :
Plastic bag + carton
Payment Terms :
L/C, T/T
Product Name :
E2-IH823C
Backing Thickness :
0.025mm
Total Tape Thickness :
0.050±0.005mm
Elongation at Break :
≥10%
Static Discharge :
<100V
Tensile Strength at Break :
≥2（KN/M）
Description

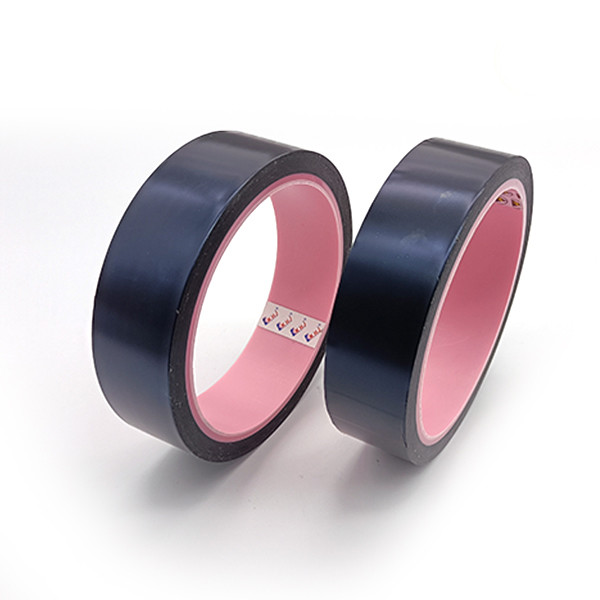

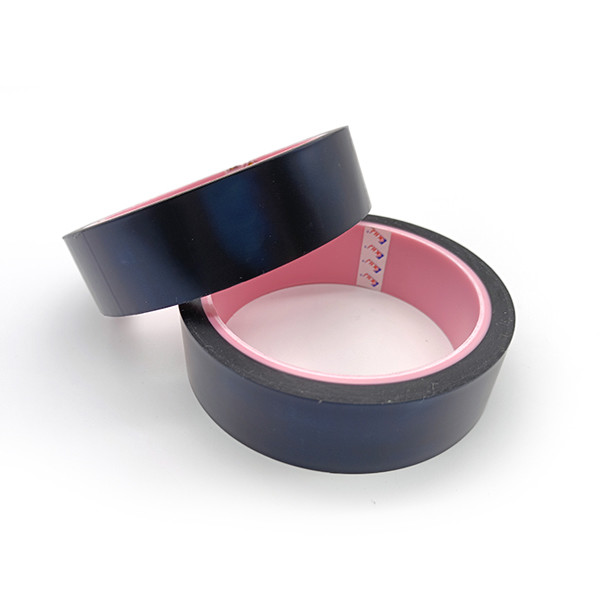

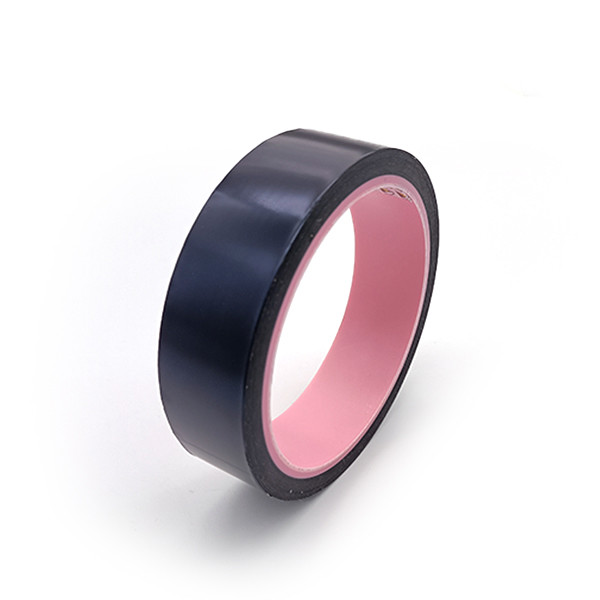

2mil Low Static Heat Resistant Adhesive Tape For Golden Finger

2mils heat resistant ESD PI tape E2-IH823C heat resistant adhesive tape with good heating resistance and low static

E2-IH823C is a polyimide film-backed silicone adhesive tape with super heat resistance and extremely low electrostatic discharge properties. And insulation resistance of adhesive side is measurable.

Features And Benefits:

1. Low electrostatic discharge at unwind and removal.

2. Resistant high temperature up to 280℃.

3. Excellent tensile strength & Elongation.

4. RoHS Compliant.

Properties:

Item high temp resistant tape Typical Value
Backing 0.025mm
Total Thickness 0.050±0.005mm
Adhesion to Steel 4-6N/25mm
Tensile Strength ≥2(KN/M)
Elongation ≥10%
Surface Resistance 106-9ohms
<1011ohms
Static Discharge <100V
Operating Temperature 290℃

Construction:

2mil Low Static Heat Resistant Adhesive Tape For Golden Finger

Application:

Masking for golden finger of Print circuit boards when wave soldering or reflow soldering process, surface protection under the high temperature without any residue.

2mil Low Static Heat Resistant Adhesive Tape For Golden Finger

Storage

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.

Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.

What are our advantages?

1. Good production capacity and fast delivery.

2. Good reputation and after-sales service team.

3. Environmentally friendly products.

4. Professional manufacturer for nearly 20 years.

Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
