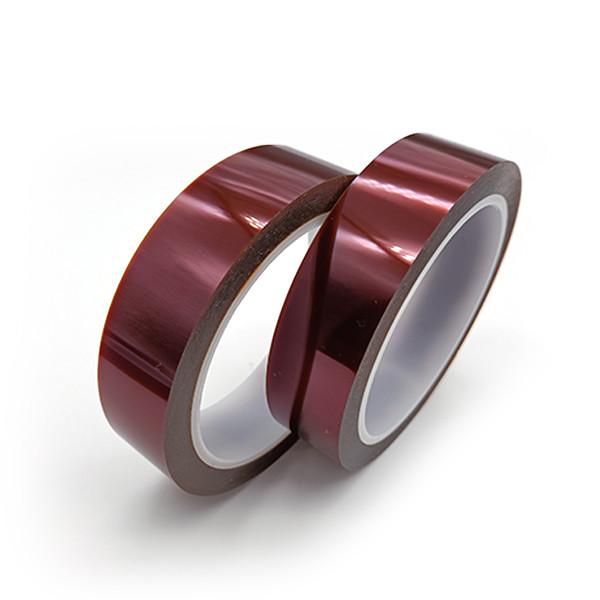

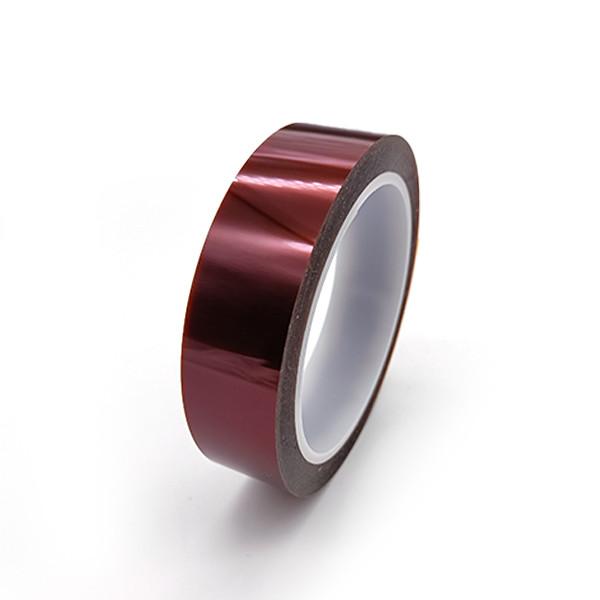

Silicone Adhesive Heat Proof Double Sided Tape 8.0mil Polyimide Tapes
Silicone Adhesive Heat Proof Double Sided Tape 8.0mil Polyimide Tapes
Silicone Adhesive Heat Proof Double Sided Tape 8.0mil Polyimide Tapes
Silicone Adhesive Heat Proof Double Sided Tape 8.0mil Polyimide Tapes
Silicone Adhesive Heat Proof Double Sided Tape 8.0mil Polyimide Tapes
Silicone Adhesive Heat Proof Double Sided Tape 8.0mil Polyimide Tapes
Silicone Adhesive Heat Proof Double Sided Tape 8.0mil Polyimide Tapes
Silicone Adhesive Heat Proof Double Sided Tape 8.0mil Polyimide Tapes
Specifications
Brand Name :
KHJ
Model Number :
DIH775A-B
Certification :
RoHS
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Supply Ability :
50000 rolls per month
Delivery Time :
For samples 1-3 days and for mass order depends on your QTY.
Packaging Details :
Plastic bag + carton
Payment Terms :
L/C, T/T
Backing Thickness :
0.075mm
Total Thickness :
0.200±0.01mm
Adhesion to Steel 1.8lbs/in :
A adhesive：8.0N/25mm
Adhesion to Steel 0.18lbs/in :
B adhesive: 0.8N/25mm
Tensile Strength :
≥8（KN/M）
Elongation :
≥50%
Description

Silicone Adhesive Heat Proof Double Sided Tape 8.0mil Polyimide Tapes
With double-side coated silicone adhesive DIH775A-B polyimide tape

DIH775A-B is a polyimide film-backed tape with two sides coated silicone adhesive, which has excellent properties of high temperature resistance.

Features And Benefits:

1. Excellent tensile strength & Elongation

2. Withstand Long periods of heat up to 260℃ ; withstand short time of heat up to 300℃

3. Both-sides with different adhesion, no any residue after removal.

Properties:

Item Typical Value
Imperial Metric
Backing 3.0mils 0.075mm
Total Thickness 8.0±0.4mil 0.200±0.01mm
Adhesion to Steel 1.8lbs/in A adhesive:8.0N/25mm
0.18lbs/in B adhesive: 0.8N/25mm
Tensile Strength ≥45.7lbs/in ≥8(KN/M)
Elongation ≥50% ≥50%
Breakdown voltage >8KV >8KV

Operating

Temperature

 536℉ 280℃


Construction:

Silicone Adhesive Heat Proof Double Sided Tape 8.0mil Polyimide Tapes

Application:

1. Mask for printed circuit boards during wave solder or solder dip process.

2. Masking contacts during spray painting, powder coating & solder coating.

3. Bundling of transformer, motor, battery & electronic components for insulation purpose.

Silicone Adhesive Heat Proof Double Sided Tape 8.0mil Polyimide Tapes

Storage:

1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

2. Shelf life: 12 months from the date of manufacture when stored in initial packing.

Precaution Reminder:

1. Surface should be clean, dry, free of dust, oil or other contaminants.

2. Proper pressure required by roller, hand or press when applying.

3. Avoid repeat sticking to prevent adhesion decrease.

What are our advantages?

1. Professional tape manufacturer for nearly 20 years.

2. Gold supplier.

Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. Good reputation and after-sales service team.

Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
