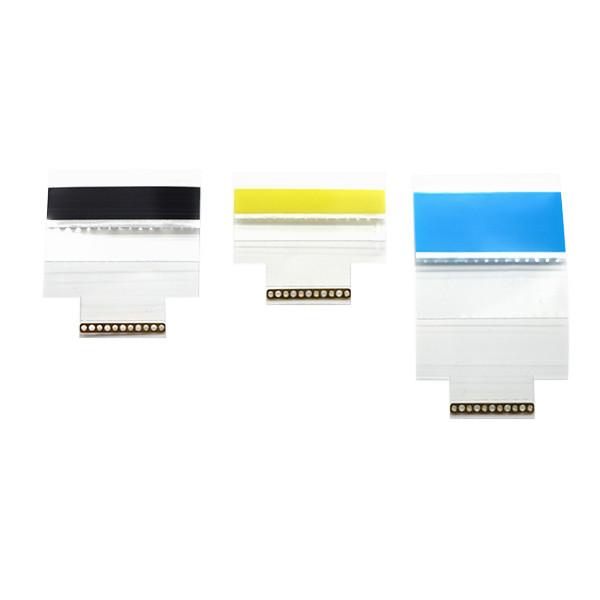

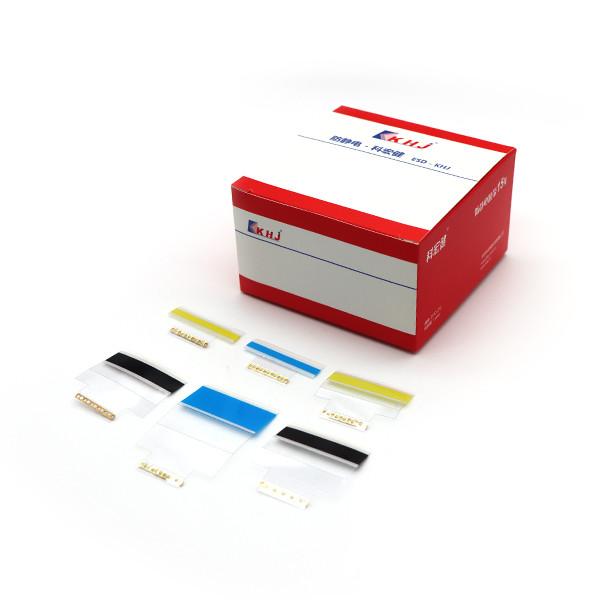

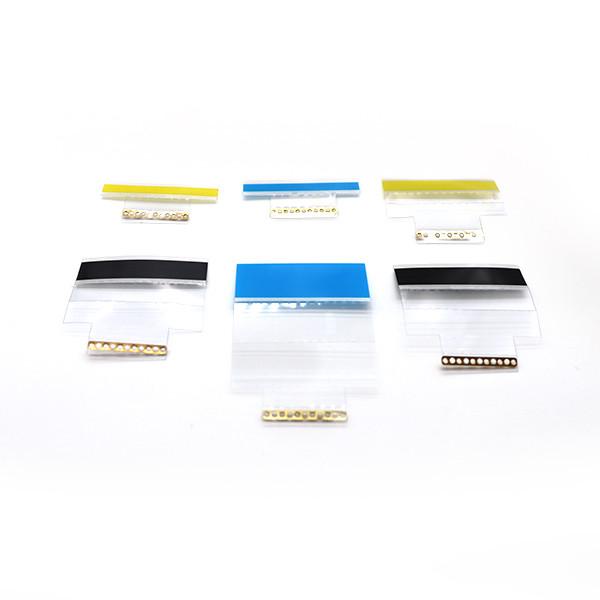

8mm 12mm 16mm 24mm SMT Splice Tape Labor Saving With Clip
8mm 12mm 16mm 24mm SMT Splice Tape Labor Saving With Clip
8mm 12mm 16mm 24mm SMT Splice Tape Labor Saving With Clip
8mm 12mm 16mm 24mm SMT Splice Tape Labor Saving With Clip
8mm 12mm 16mm 24mm SMT Splice Tape Labor Saving With Clip
8mm 12mm 16mm 24mm SMT Splice Tape Labor Saving With Clip
8mm 12mm 16mm 24mm SMT Splice Tape Labor Saving With Clip
8mm 12mm 16mm 24mm SMT Splice Tape Labor Saving With Clip
Specifications
Brand Name :
KHJ
Model Number :
SMS08 series
Certification :
RoHS
Place of Origin :
Guangdong, China
MOQ :
1 Bag
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000㎡/day
Delivery Time :
3-5 workdays
Product Name :
SMS08 series
Material :
PET
Adhesive :
Acrylic
Size :
8mm,12mm,16mm,24mm，32mm，44mm，56mm，72mm，88mm
Color :
Yellow, Black, Blue, Green, Pink, Etc Are Available
Description

8mm 12mm 16mm 24mm SMT Splice Tape Labor Saving With Clip

Multiple product types:


1. Double-sided splicing tape;
2. Single sided splicing tapes;
3. Splice tape with copper buckle;
4. Sealing lead tape;
5. Sharp corner splicing tapes;
6. Aluminum foil splicing tapes;
7. Machine splicing tapes;
8. Splicing tapes with holes;

Support 8mm-72mm carrier tape, at the same time have splicing pliers, splice cutter, splicing cart and other SMT splicing tool.

SMS08 Series SMT Splice Tape 8mm 12mm 16mm 24mm Labor Saving With Clip

Universal SMT splice tape with clip for more reliable jointing of carrier tape

Features And Benefits:

1. 08series single splice tape with clip is used for jointing carrier tapes in the SMT process, Both for paper & plastic carrier tape, it is proved to be a reliable and accurate connecting with our SMT Clip & Splice.

2. A Clip and a Single Splice Tape in one strip,Splice tape+clips designed for more reliable jointing. Easy to use,Labor-saving.

3. Available for 8mm,12mm,16mm,24mm, etc carrier tapes.

4. Available for all SMT machines except sensitive machine.

5. Yellow, Black, Blue, Green, Pink, Red, etc colors are available

Application:

08series splice tape with clipe is used for jointing carrier tapes more reliable in the SMT process.

Properties:

P/N Description of Goods Quantity Application
SMS-0808 SMT Super Clip & Splice 8mm 500pcs/box For 8mm carrier tape
SMS-0812 SMT Clip & Splice 12mm 500pcs /box For 12mm carrier tape

Structure:

8mm 12mm 16mm 24mm SMT Splice Tape Labor Saving With Clip

How to use:

Ideal application environment: 20-28℃,after sticking it onto carrier tapes, press it tightly at different locations on carrier tapes.This product is not proposed to be used as SMT cover tape extenders when SMT machine starts working.

Storage Condition:

Temperature: 20℃-30℃

Ralative Humidity(RH): 45%-65%

Shelf-life: One year

Notes:

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
