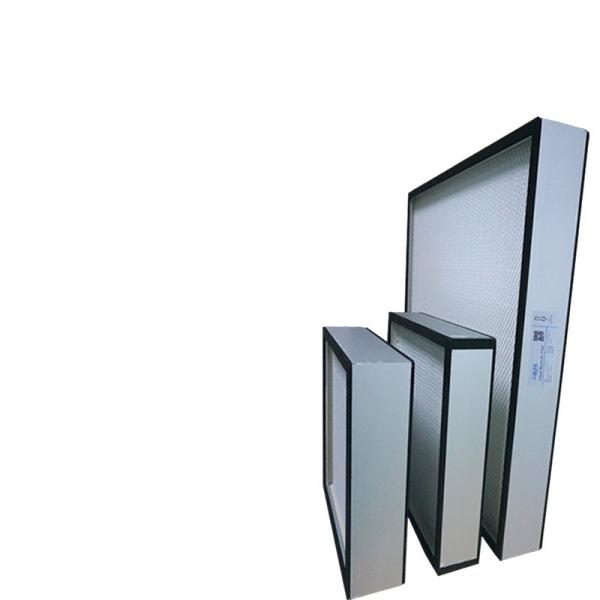

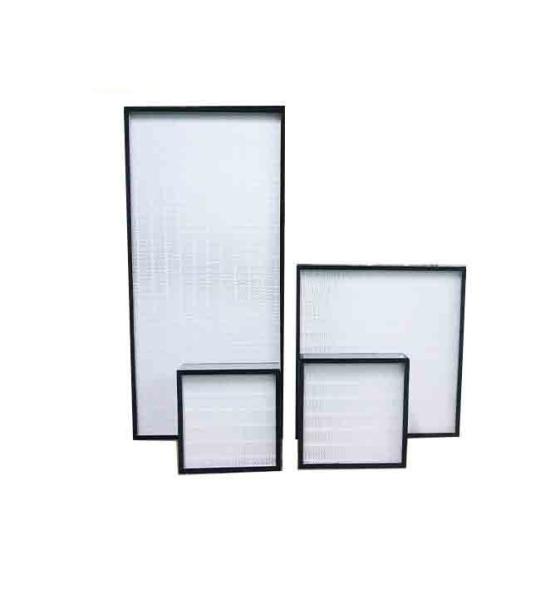

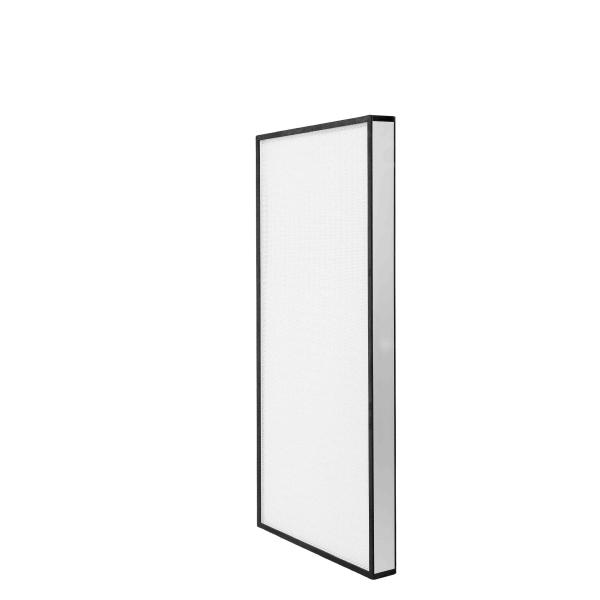

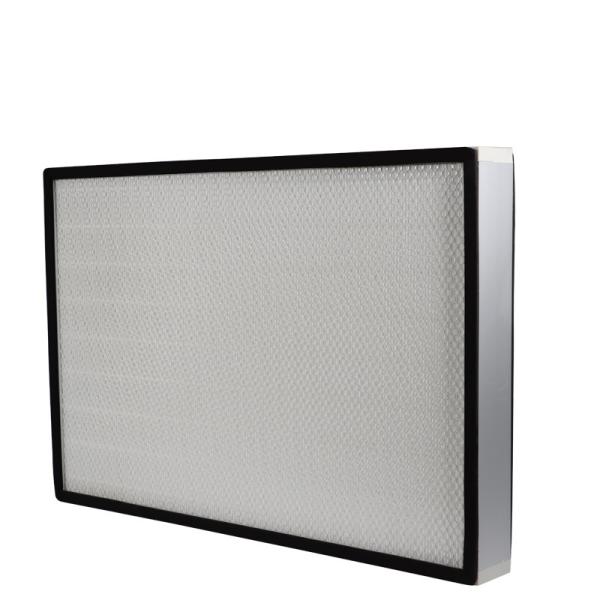

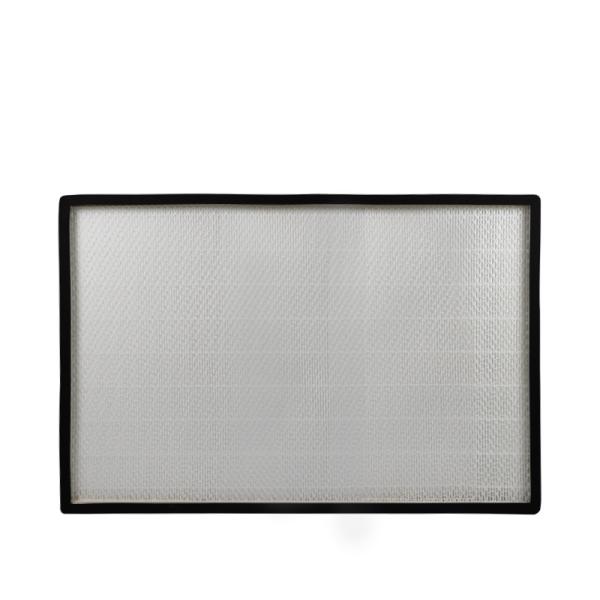

Pharmaceutical UL Cleanroom HEPA Filter Mini Pleated Gel Seal Media
Pharmaceutical UL Cleanroom HEPA Filter Mini Pleated Gel Seal Media
Pharmaceutical UL Cleanroom HEPA Filter Mini Pleated Gel Seal Media
Pharmaceutical UL Cleanroom HEPA Filter Mini Pleated Gel Seal Media
Pharmaceutical UL Cleanroom HEPA Filter Mini Pleated Gel Seal Media
Pharmaceutical UL Cleanroom HEPA Filter Mini Pleated Gel Seal Media
Pharmaceutical UL Cleanroom HEPA Filter Mini Pleated Gel Seal Media
Pharmaceutical UL Cleanroom HEPA Filter Mini Pleated Gel Seal Media
Specifications
Brand Name :
Fairtech
Model Number :
FT012
Certification :
CE,Rosh
Place of Origin :
China
MOQ :
1pcs
Price :
USD35-50pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000000pcs per Week
Delivery Time :
3-5days
Packaging Details :
1. Individual Package 2. Carton Package 3. Pallet Package
Name :
UL Certificated H14-U17 Mini Pleated Gel Seal HEPAULPA Media Air Filter Manufacturers For Pharmaceutical Cleanroom
Efficiency :
H13 HEPA Filter (Customized)
Type :
Air Cleaner Parts
Material :
Melt-blown and Carbon
Max Temperature :
70
Customization :
Logo/Packaging /Graphic (Min 10 Sets)
Frame Material :
Anodized Aluminum Profile
Filter Screen :
Mini-Pleated Ultra Thin Filter Screen
Description

UL Certificated H14-U17 Mini Pleated Gel Seal HEPAULPA Media Air Filter Manufacturers For Pharmaceutical Cleanroom

Hepa Filter Description:
All heating and cooling air duct systems naturally collect dust and contaminants. Clean rooms, such as those used in the electronics, pharmaceutical, and medical industries, require a controlled environment free of dust, airborne particles, and other contaminants. Ultra low particulate air (ULPA) filters and high efficiency particulate air (HEPA) filters are used in commercial air filtration systems to trap extremely small particulate contaminants.

Hepa Filter Material Instructions:
Structure: L-type side gel seal, Y-type top gel seal.
Media: Ultra-fine fiberglass filter paper.
Frame: Anodized aluminum alloy.
Separator: Hot-melt glue.
Sealant: Polyurethane.
Temperature: Maximum 90°C in continuous service.

Hepa Filter Application
Suitable for electronics, pharmaceutical industry, clean room, HEPA diffuser, laminar flow devices and the occasions require ultra-high cleanliness.

Hepa Filter Common Specifications

Model Actual size
W×H×D(mm)		 Air flow
(m³/h)		 Initial
pressure drop(Pa)		 Final
pressure drop(Pa)
H4BX1-70L5-WB1 484×484×70 630 249Pa
Face velocity 0.85m/sec		 500Pa
*Proposed value
H4PT2-70L5-WB1 630×630×70 1100
H4BX3-70L5-WB1 570×1170×70 1000 110Pa
Face velocity 0.45m/sec		 220Pa
*Proposed value
H4PT4-70L5-WB1 1170×1170×70 2100
H4BX1-90L5-WB2 484×484×90 630 220Pa
Face velocity 0.85m/sec		 440Pa
*Proposed value
H4PT2-90L5-WB2 630×630×90 1100
H4BX3-90L5-WB2 570×1170×90 1000 98Pa
Face velocity 0.45m/sec		 200Pa
*Based on FFU performance
H4PT4-90L5-WB2 1170×1170×90 2100

Pharmaceutical UL Cleanroom HEPA Filter Mini Pleated Gel Seal Media

Pharmaceutical UL Cleanroom HEPA Filter Mini Pleated Gel Seal Media

Pharmaceutical UL Cleanroom HEPA Filter Mini Pleated Gel Seal Media

FAQ:

1. Q: Are you manufacturer or trader?Where are your factory located?
A: We are manufacturer with professional designers and engineers. Our factory is located in Guangzhou city.

2. Q: How long is your warranty? Can we extend?
A: 12 months after installation and commissioning. Warranty can be extended with extra charge.

3. Q: Do you have professional engineer team fordesign and installation?
A: Yes, we have engineer team for ODM and OEM services

4. Q: What documents will you provide?
A: Usually we will provide DQ, IQ, PQ, OQ, FAT, SAT, operation manual, maintenance instruction, layout drawing etc.

Product tags

gel seal hepa filters

,

pu silicone sealant

,

sanitary silicone sealant
