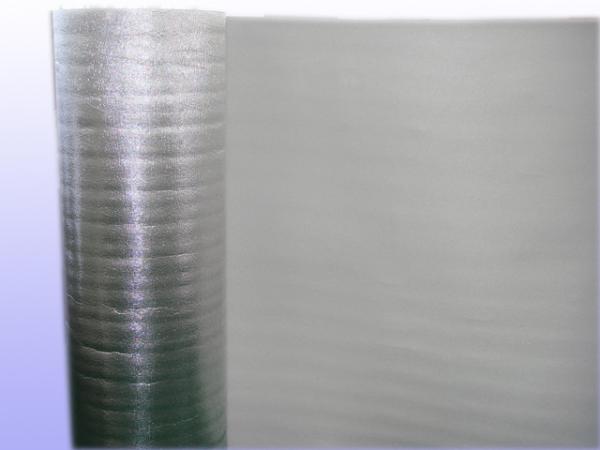

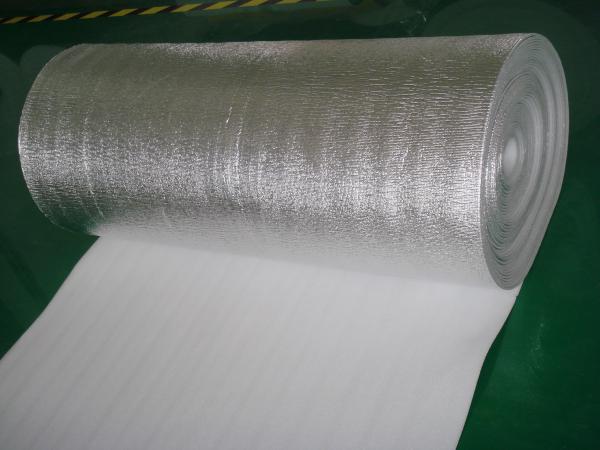

Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness
Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness
Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness
Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness
Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness
Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness
Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness
Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness
Specifications
Brand Name :
TOP
Model Number :
T-H-B-003
Place of Origin :
CHINA
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500000 sqm/day
Delivery Time :
25 days after receiving payment
Packaging Details :
po transparent bags
Reflectivity :
96-97%
Roll size :
1.2mx 38.1m length
Thickness :
3mm
Density :
20-23kg/m3
Structure :
metalised foil/epe
Feature :
heat insulation,waterproof, fireproof, moisture barrier
Color :
Silver or other colors can be printed
application :
wall,floor,roof, protect packages
Description

3mm , 1.2x38.1m Reflective PE EPE Foil thermal and heat insulation

Characteristics:

1) Smellless and non-toxic.
2) Clean,thin and lightweight.
3) Outstanding safety and environmental benefits.

4) Moisture-proof, heat preservation and energy conservation.
5) Easy to install, high efficiency.
6) Cost-effective and versatile.

Application:

1.Used in Roof ,attic ,stud walls and crawl spaces insulation

2.Used in Under Concrete ,HVAC Duct and metal building insulation

3.Used in Post Frame Building ,water heater insulation blankets or jackets, radiant floor and garage door insulation

4.Used in Ultra/Stanard Under Concrete Barrier,duct wrap insulation

Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness

Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness

Material Structure Metalised foil
Thermal conductivity 0.034W/MO
Apparent Density 46KG/M^3
Density 20-23KG/M^2
Roll Width max width is 1.58m,Length can be customized)
Water Vapour Transmission 0.012G/M^2 KPA
Tensile strength(MD) 13.43Mpa
Tensile strength(TD) 14.58Mpa
Reflectivity 9 6%-97%
Thickness 3mm
Body weight 180g/m2

Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness

Single Side Metalised Foil With PE Foam Heat Insulaiton 3mm Thickness

  • Ahorro energético.
  • Aislamiento total.
  • Excelentes acabados finales.
  • Elimina el calor radiante.
  • Rechaza el calor en climas cálidos.
  • Retiene el calor en zonas frías.
  • Es liviano y fácil de instalar.
  • Libre de CFC.
  • No provoca alergia.
PERMEABILIDAD AL AGUA Impermeable Dir. UEAtc
PERMEABILIDAD AL VAPOR DE AGUA 0.033 g/m2hkPa - 0.05 perms (gr/ft2*h*in.hg) ASTM E 96/IRAM 1735
EMITANCIA 0.03 ASTM C-1371-98
RESISTENCIA A HONGOS Resistente / No promueve crecimiento de hongos – moho ASTM C 1338
RESISTENCIA A LA TENSIÓN 13.5 N/cm ASTM D-683
TEMPERATURA DE OPERACIÓN - 20ºc / 80ºc ASTM C-1224
