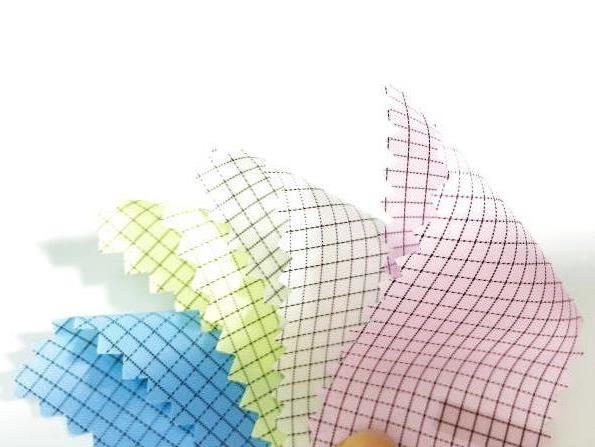

Antistatic 2.5mm Grid ESD Fabric Polyester 1/2 Twill White Blue Yellow Pink Stock
Antistatic 2.5mm Grid ESD Fabric Polyester 1/2 Twill White Blue Yellow Pink Stock
Antistatic 2.5mm Grid ESD Fabric Polyester 1/2 Twill White Blue Yellow Pink Stock
Antistatic 2.5mm Grid ESD Fabric Polyester 1/2 Twill White Blue Yellow Pink Stock
Antistatic 2.5mm Grid ESD Fabric Polyester 1/2 Twill White Blue Yellow Pink Stock
Antistatic 2.5mm Grid ESD Fabric Polyester 1/2 Twill White Blue Yellow Pink Stock
Specifications
Brand Name :
allesd
Model Number :
AF0083
Certification :
ISO/SGS/COO
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T
Supply Ability :
1,500,000 meters per month
Delivery Time :
15-25 working days
Packaging Details :
1roll/knitting bags
Price :
Negotiable
Material :
96% Polyester 4% Carbon Fiber
Color :
White Pink Yellow Blue
Width (cm) :
150
Weight (gr/sqm) :
120
Weave Style :
Twill 1/2
Surface resistivity :
106 ~ 107
Description

Antistatic 2.5mm Grid ESD Fabric Polyester 1/2 Twill White Blue Yellow Pink Stock

ESD Fabric 2.5mm Grid(Checked): AF0083

Description: Anti-static ESD Woven Polyester Fabric, 2.5mm Grid

Applications: ESD protection in clean rooms, work wear

Features:

1) It is also called"conductive silk", and it adopts the special polyester filament and high quality conductive yarns

2) This kind of garments/cap/boots/facemask which are sewed with esd fabric, offer good resistance to static, chemicals and abrasion. It is designed for Class 100-1000 cleanrooms and higher. And it is applicable in electronics, medicals, biology, optics, spaceflight industries etc

3) Meets ESD standards, system resistance 106-107ohms

Specifications:

Spec Value Test Method
Material 96% Polyester 4% Carbon Fiber
Available Colors White Pink Yellow Blue
Carbon Configuration Grid 2.5mm
Width (cm) 150
Weight (gr/sqm) 115~120
Surface Resistivity (ohm/unit) 106 ~ 107

Friction charges (V)

<150

Number of yarns (denier)

Warp

Weft

100

100
Weave style Twill 1/2
Air permeability (cc/cm²/sec) 30
Recommended Class Of Cleanroom Class 100~1000

Our ESD Woven Fabric 100D Series

Model Spec Yarn Count Weight Density Charge Density Friction Voltage
AF0060 Strip 5mm 100D48F*100D48F 110-115g/m2 165*82ends/inch 1.2uc/m <300V
AF0064 Strip 10mm 100D48F*100D48F 110-115g/m2 165*82ends/inch 1.2uc/m <300V
AF0080 Grid 5mm 100D48F*100D48F 110-115g/m2 165*82ends/inch 0.8uc/m <200V
AF0083 Grid 2.5mm 100D48F*100D48F 115-120g/m2 165*89ends/inch 0.8uc/m

<150V

Other ESD Fabric & Products we Supply

  • Other ESD Fabric: Antistatic TC and CVC fabric, Antistatic knitted diamond fabric, Antistatic knitted fabric, Antistatic polyester stripe fabric,
  • Cleanroom Apparels(Disposable)
  • Cleanroom Cleaning Supplies(Wipes, Tacky Rollers, Mops, Brushes, Swabs),
  • Cleanroom &ESD Chairs/Stools,
  • Cleanroom Documentation(Paper, Pen, Notebook),
  • Cleanroom Gloves(Finger Cots, PU Coated Glove, PVC Dotted Glove)
  • Cleanroom Mats(Sticky Mat, Table/Floor Mat, Anti-fatigue Mat),
  • ESD Package Materials(Bags, Tapes etc),
  • ESD Storage Materials (Bins, Trays, Circulation Box, Solvent Dispensers),
  • ESD Wrist/Heel Straps/Grounding Cords.
  • Static Control Ionizing Blower/Gun/Nozzle,
  • Illuminated Magnifier,
  • Cleanroom Curtain and etc
