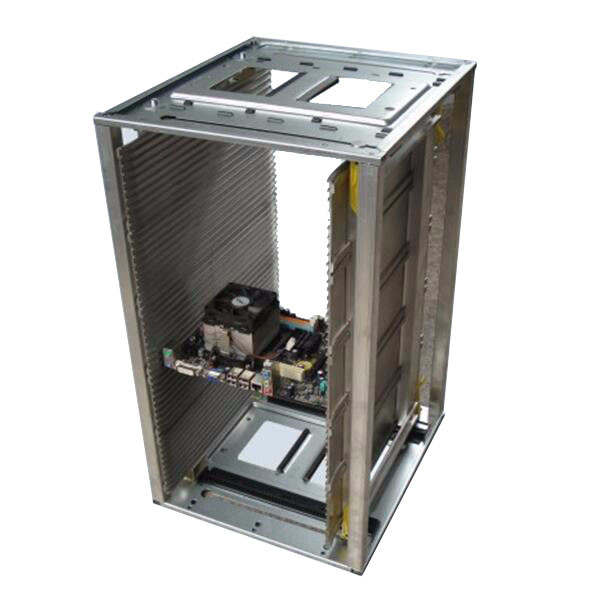

Gear Track ESD Safe Materials ESD PCB Magazine Rack Size 355x320x563 Mm
Gear Track ESD Safe Materials ESD PCB Magazine Rack Size 355x320x563 Mm
Gear Track ESD Safe Materials ESD PCB Magazine Rack Size 355x320x563 Mm
Gear Track ESD Safe Materials ESD PCB Magazine Rack Size 355x320x563 Mm
Gear Track ESD Safe Materials ESD PCB Magazine Rack Size 355x320x563 Mm
Gear Track ESD Safe Materials ESD PCB Magazine Rack Size 355x320x563 Mm
Gear Track ESD Safe Materials ESD PCB Magazine Rack Size 355x320x563 Mm
Gear Track ESD Safe Materials ESD PCB Magazine Rack Size 355x320x563 Mm
Specifications
Brand Name :
allesd
Model Number :
MR6603
Certification :
ISO/SGS
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T
Supply Ability :
5,000pcs per month
Delivery Time :
7-10 working days
Packaging Details :
1pcs/gift box, 4pcs/carton
Price :
Negotiable
Size :
355x320x563mm
PCB Boards Loaded :
50pcs
Top and Bottom Metal :
Yes
Size of PCB :
355*(50-250)mm
Adjustbale :
Gear track
Surface Resistance :
104-108 Ohms
Temp Resistance :
100-120℃
Description

Gear Track ESD Safe Materials ESD PCB Magazine Rack Size 355x320x563 mm

Description:

1, Surface resistance: 104-108 Ohms(100-120℃)

2, External dimension: 355x320x563mm

3, Available for storing 50 pieces of PCB plates

4, Sizes of PCBs to be accommodated:355*(50-250)mm

5, Side guide slot, with depth of 3mm, width of 5.5mm and pitch of 10mm

6, The top and bottom boards are made of metal

7, Adjustable plastic gear track design allows easy operation

Features:

1, Automation requires precision. For the use of the PCB Magazines in automated assembly lines, precision, stability and flexible are our most important quality assurance.

2, The stable and robust frame construction guarantees a long lasting use of the magazine rack in your production.

3, The rack walls are manufactured from conductive materials, which could be temp resistance to 120degree around

Standard Size Table & Information:

Model NO.

Base

Material

Adjust

Heat-

Resistan

Temp(℃)

Outer Dimension

(mm)

Adjustable

Width

(mm)

Ref.

Position

(mm)

Side board

structure

Weight

(kg)
L W H Material structure
MR6601 Metal

Gear

track

 100

400*320/380

*563

50-250/

300

 34 Polystyrene

Combined

panel

 7.2
MR6602 Plastic Screw 80 355*315*580 80-250 34 Polystyrene Whole panel 5.1
MR6602F Metal Screw 80 355*315*580 80-250 34 Polystyrene

Whole

panel

 5.2
MR6603 Metal

Gear

track

 100 355*320*563 50-250 34 Polystyrene

Combined

panel

 5.2
MR6603G Metal

Gear

track

 230 355*320*563 50-250 34 Polycarbonate

Combined

panel

 7
MR6603GL Metal

Gear

track

 502 355*320*563 50-250 34 Aluminum

Combined

panel

 6.7
MR6604 Metal Screw 100 355*320*563 50-250 34 Polystyrene

Combined

panel

 5.1
MR6604G Metal Screw 230 355*320*563 50-250 34 Polycarbonate

Combined

panel

 6.9
MR6604GL Metal Screw 502 355*320*563 50-250 34 Aluminum

Combined

panel

 6.7
MR6605 Plastic

Gear

track

 100 355*320*563 50-250 34 Polystyrene

Combined

panel

 4.9
MR6606 Metal

Gear

track

 100 460*400*563 50-330 34 Polystyrene

Combined

panel

 7.5
MR6606G Metal

Gear

track

 230 460*400*563 50-330 34 Polycarbonate

Combined

panel

 9.7
MR6607 Metal Screw 100 460*400*563 50-330 34 Polystyrene

Combined

panel

 7.4
MR6607G Metal Screw 230 460*400*563 50-330 34 Polycarbonate

Combined

panel

 9.7
MR6608 Metal

Gear

track

 100 535*460*570 50-390 34 Polystyrene

Combined

panel

 10.5
MR6609 Metal

Gear

track

 100 535*530*570 120-460 34 Polystyrene

Combined

panel

 12.7
MR6666 Metal

Belt

drive

 100 355*320*563 50-250 34 Polystyrene

Combined

panel

 7
MR6663 Metal

Gear

track

 100 355*320*563 50-250 34 Polystyrene

Whole

panel

 5.7
MR6665 Plastic

Gear

track

 100 355*320*563 50-250 34 Polystyrene

Whole

panel

 4.4
MR6610 Metal Screw 100 355*320*563

50-225

/75-225

 34 Polystyrene

Combined

panel

 7
MR6611 Metal

Gear

track

 100 355*320*363 50-250 34 Polystyrene

Combined

panel

 4
MR6603k Metal

Gear

track

 100 355*320*563 50-250 34 Polystyrene

Combined

panel

 5.3

Other Products we Supply

  • ESD Fabric
  • Cleanroom Apparels
  • Cleanroom Cleaning Supplies(Wipes, Tacky Rollers, Mops, Brushes, Swabs),
  • Cleanroom &ESD Chairs/Stools,
  • Cleanroom Documentation(Paper, Pen, Notebook),
  • Cleanroom Gloves(Finger Cots, PU Coated Glove, PVC Dotted Glove)
  • Cleanroom Mats(Sticky Mat, Table/Floor Mat, Anti-fatigue Mat),
  • ESD Package Materials(Bags, Tapes etc),
  • ESD Storage Materials (Bins, Trays, Circulation Box, Solvent Dispensers),
  • ESD Wrist/Heel Straps/Grounding Cords.
  • Static Control Ionizing Blower/Gun/Nozzle,
  • Illuminated Magnifier,
  • Cleanroom Curtain and etc

If you would like a HIGH-TEMP RESISTANT magazine rack, we have below 2 types for your options

Model: MR-6603G/Size: 355x320x563mm/Temp Resistance: 230degree

Gear Track ESD Safe Materials ESD PCB Magazine Rack Size 355x320x563 Mm

Model: MR-6603GF/Size: 355x320x563mm/Temp Resistance: 502degree/Metal Rack Walls.

Gear Track ESD Safe Materials ESD PCB Magazine Rack Size 355x320x563 Mm
