Electrostatic Fieldmeter Measuring Range 30KV Digital FMX-004 Non Contact Electrostatic Tester
Electrostatic Fieldmeter Measuring Range 30KV Digital FMX-004 Non Contact Electrostatic Tester
Electrostatic Fieldmeter Measuring Range 30KV Digital FMX-004 Non Contact Electrostatic Tester
Electrostatic Fieldmeter Measuring Range 30KV Digital FMX-004 Non Contact Electrostatic Tester
Electrostatic Fieldmeter Measuring Range 30KV Digital FMX-004 Non Contact Electrostatic Tester
Electrostatic Fieldmeter Measuring Range 30KV Digital FMX-004 Non Contact Electrostatic Tester
Electrostatic Fieldmeter Measuring Range 30KV Digital FMX-004 Non Contact Electrostatic Tester
Electrostatic Fieldmeter Measuring Range 30KV Digital FMX-004 Non Contact Electrostatic Tester
Electrostatic Fieldmeter Measuring Range 30KV Digital FMX-004 Non Contact Electrostatic Tester
Electrostatic Fieldmeter Measuring Range 30KV Digital FMX-004 Non Contact Electrostatic Tester
Electrostatic Fieldmeter Measuring Range 30KV Digital FMX-004 Non Contact Electrostatic Tester
Electrostatic Fieldmeter Measuring Range 30KV Digital FMX-004 Non Contact Electrostatic Tester
Specifications
Brand Name :
allesd
Model Number :
FMX-004
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100,000bags per month
Delivery Time :
7-10 working days
Packaging Details :
1000pcs pcs/vacuum bag, 20bags/carton
Product name :
ESD Test Meters
Color :
grey
Size :
123mm (L) x 73mm (W) x 25mm (D)
Feature :
Convenient, simple and accurate
Function :
Surface Resistance Test
Application :
Electronic industry,cleanroom,ect.
Description

Electrostatic Fieldmeter Measuring Range 30KV Digital FMX-004 Non-contact Electrostatic Tester

Advantages:

FMX-004 is a multifunctional digital tester equipped with a single-chip computer. The compact palm sized design features an easy
to see large LCD display, with a maximum of ± 30kV (measurement distance: 25mm). It is used for simple live measurement,investigation of specific live levels in areas where static electricity occurs, measurement of static electricity response plans and effects, and maintenance management.

Measuring range

0 to ±1.49KV ( Low range)
±1.0kVt0 ±30.00kV(High range)
(range hysteresis ±1.0kV to ±1.5kV)
0 to ±300V ( low balance measuring range)
Measuring distance 1"±1/64" ( 25mm±0.5mm), LED guide for correct distance

( between object and field meter)

 <1s
Response time 5 times/s
LCD display renewal rate ±10%
Accuracy 50°-100°F,(10°-40°),0-60%RH(non-condensing)
Ambient conditions Bar graph,red LCD positive polarity voltage, blue LCD negative polarity
Display features voltage
Bar graph precision ±0.1kV for low range ±2kV for high range,±20V for ion balance range
Digital reading Auto-ranging , three digits x.xx=0 t0 ±1.49kV,xx.x=±1.0kV to ±30.0kV(Hi),xxx=0 to 300 ( lon balance)
lon balance mode display (IB) is displayed
Battery capacity display indicatoror
HOLD switch to retain display after
measurement
Error sign (ERR) appears if the sensor
is damaged
Alarm feature Beep sound will be heard during the following actions;
Power on One beep
Power on with auto Off feature disabled Depress power button for more than 3 seconds three beeps
Auto power-Off Short beeps at 1 seconds interval for 5 seconds before power off
Over range Continuous sound
Auto power-off Power turns off automatically after five minutes,A OFF is
display whenever this features is disabled
Power source 9V, manganese battery (Battery Not Included because of
Shipping Policy)
Battery life In excess of 30 hours
Size 123mm (L) x 73mm (W) x 25mm (D)
Weight 170g
Case material Conductive resin( ABS)

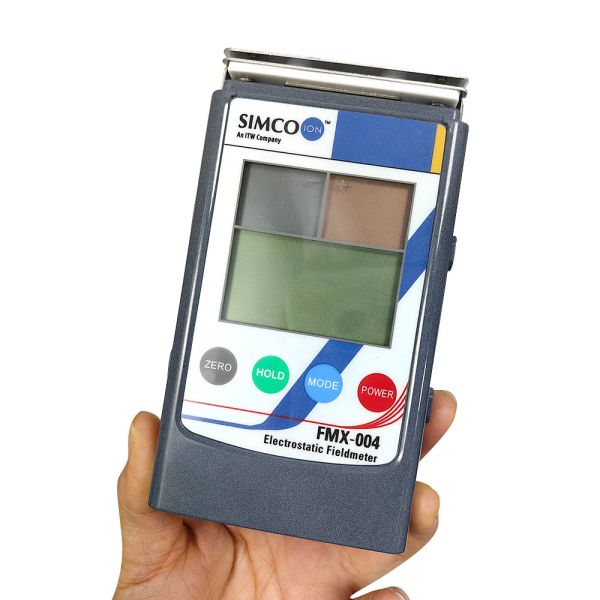

Picture:

Electrostatic Fieldmeter Measuring Range 30KV Digital FMX-004 Non Contact Electrostatic Tester
