24 BNC Ports Cctv Surge Protection Devices For Surveillance Video Transmission
24 BNC Ports Cctv Surge Protection Devices For Surveillance Video Transmission
24 BNC Ports Cctv Surge Protection Devices For Surveillance Video Transmission
24 BNC Ports Cctv Surge Protection Devices For Surveillance Video Transmission
24 BNC Ports Cctv Surge Protection Devices For Surveillance Video Transmission
24 BNC Ports Cctv Surge Protection Devices For Surveillance Video Transmission
Specifications
Model Number :
TS-24BNC5
Certification :
CE Compliance
Place of Origin :
Guangdong,China
Brand Name :
TSTLP
MOQ :
Negotiable
Price :
Negotiable if good quantity
Packaging Details :
By standard export box/carton
Delivery Time :
Around 7 working days upon receipt of payment
Payment Terms :
100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
Supply Ability :
2000 sets/month
Un :
5V
Connection Ports :
24
In :
2.5kA
Up(line-shield) :
≤ 25V
Bandwidth :
300MHz
Mounting on :
19'' distribution cabinet
Description

24 BNC ports cctv surge protection devices for surveillance video transmission

TSTLP 24 BNC ports cctv surge protection devices complying with IEC 61643-21 standards protects coaxial cable transmission devices, surveillance video signal transmission from interruption caused by surge current.

24 BNC Ports Cctv Surge Protection Devices For Surveillance Video Transmission

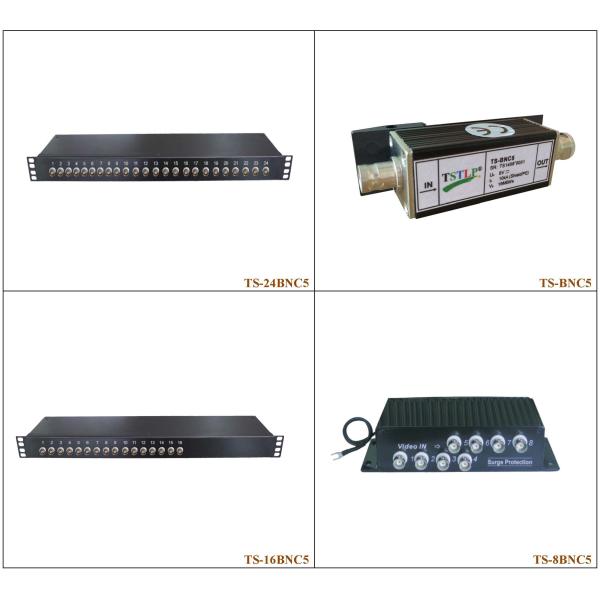

  • Technical Parameter S1
Model Number TS-8BNC5
TS-16BNC5
TS-24BNC5
Un 5V-
Uc 8V-
UOC 5KV(line-shield)
10KA(shield-PG)
In 2.5kA(line-shield)
5kA(shield-PG)
Imax 5kA(line-shield)
10kA(shield-PG)
Up ≤25V(line-shield)
Up ≤15V(line-shield)
≤600V(line/shield-PG)
tA ≤1ns (line- shield)
≤100ns (shield-PG)
fG 300MHz
Vs 16Mbits/s

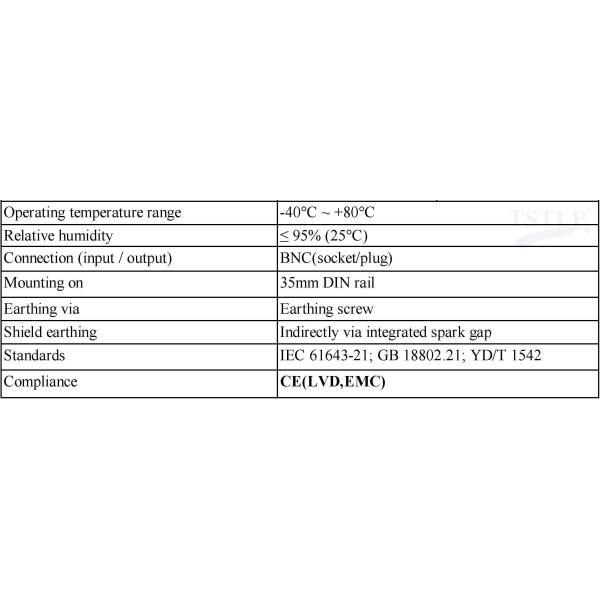

Technical Parameter S2

24 BNC Ports Cctv Surge Protection Devices For Surveillance Video Transmission

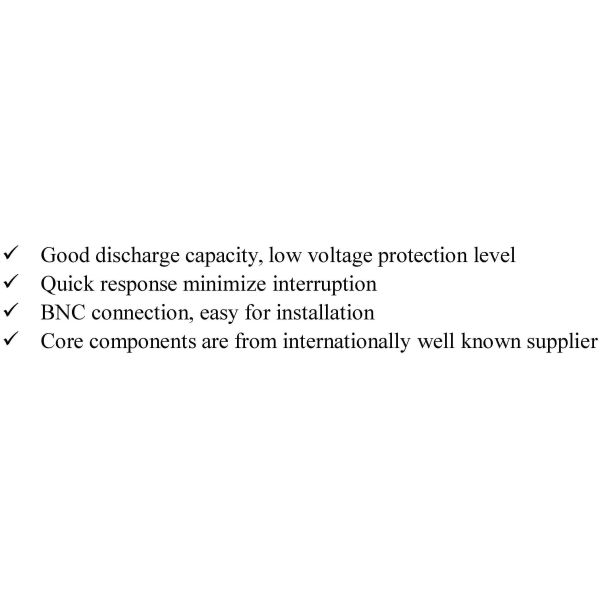

  • Features

24 BNC Ports Cctv Surge Protection Devices For Surveillance Video Transmission

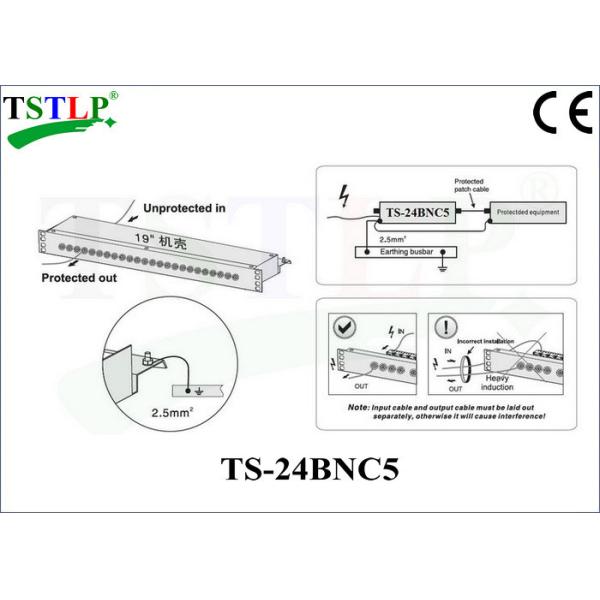

  • Installation Diagram

24 BNC Ports Cctv Surge Protection Devices For Surveillance Video Transmission

PDF Catalog Download - TS-8-16-24 BNC5 SPD.pdf

PDF Catalog Download - TS-BNC5 & TS-BNC8 SPD for C...
