Specifications
Model Number :
TS-ITS-ME Series
Certification :
CE Compliance
Place of Origin :
Guangdong,China
Brand Name :
TSTLP
MOQ :
Negotiable
Price :
Negotiable if good quantity
Packaging Details :
By standard export box/carton
Delivery Time :
Around 7 working days upon receipt of payment
Payment Terms :
100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
Supply Ability :
2000 sets/month
Un Selectable :
5v / 12v / 15v / 24v / 48v / 110v
In :
5kA
Imax :
10kA
Up :
15V / 25V / 40V / 60 V / 85 V / 300V
Product Colour :
Yellow
Surge Protection Device HS Code :
8536300000
Description

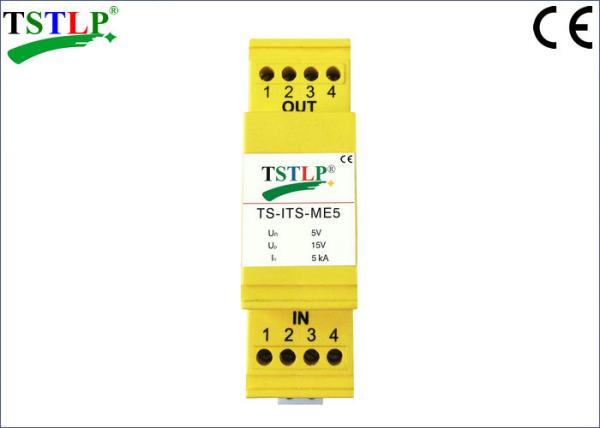

TTY / V11 / RS232 / RS422 / RS485 surge protection devices (RS485 SPD) / fire alarm surge protection

TS-ITS-ME series surge protection device are applied to the signal control system, such as RS232,RS422, RS485 lightning protection, V11, TTY, video,xDSL, fire alarm surge protection system, flexible to make it to be 2 wires, 3 wires, 4 wires or more wires protection.

TTY / V11 / RS232 / RS485 / RS422 Surge Protection Device Fire Alarm Surge Protection

  • Technical Specification
MODEL TS-ITS-ME5 TS-ITS-ME12 TS-ITS-ME15 TS-ITS-ME24 TS-ITS-ME48 TS-ITS-ME110
Product Application The series products are applied to the signal control system, such as 4-20mA,RS485,RS422, RS232, V11, TTY, video, xDSL, Fire Alarm System,Audio,flexible to make it to be 2 wires, 3 wires, 4 wires or more wires protection.
Un 5V 12V 15V 24V 48V 110V
Up 15V 25V 40V 60V 85V 300V
In 5kA 5kA 5k A 5kA 5kA 5kA
Imax 10KA 10KA 10kA 10KA 10KA 10KA
Series R*(1)* 1 Ω 1 Ω 1 Ω 1 Ω 1 Ω 1 Ω
Series R*(2)* 100μH 100μH 100μH 100μH 100μH 100μH
Load current*(3)* 400mA 400mA 400mA 400mA 400mA 400mA
Trans f( G )(4)* f=25 KHz with L; f=50 MHz with R
Operating Temperature -40℃～+80℃
Operating humidity ≤95%RH
If *(1), * (2) is installed, then R=1 Ω, L=100 μH *(3 ) >400 mA, need special making ;
(4):Max trans Fg

  • Main Character of TS-ITS-ME series for RS232,RS485, RS422 surge protection
  1. Adopting multi-level protection, reasonable between level matching.
  2. Fast response
  3. Precise Clamping, low voltage protection level(low Up),less insertion loss,double over-voltage protection function,making the safety of protected equipment get most securiy.
  4. Modular intergration, installed by 35mm Din Rail.
  • Installation Instruction ( 2 wires connection)

TTY / V11 / RS232 / RS485 / RS422 Surge Protection Device Fire Alarm Surge Protection

  • Installation Instruction ( 2 wires connection)

TTY / V11 / RS232 / RS485 / RS422 Surge Protection Device Fire Alarm Surge Protection

PDF Catalog Download - TS-ITS-ME SERIES SPD.pdf

PDF Catalog Download - TS-SP Series SPD.pdf

PDF Catalog Download - TS-SC Series SPD.pdf

PDF Catalog Download - TS-SD5-SD24 SPD.pdf

Tag: rs422 surge protection, fire alarm surge protection
