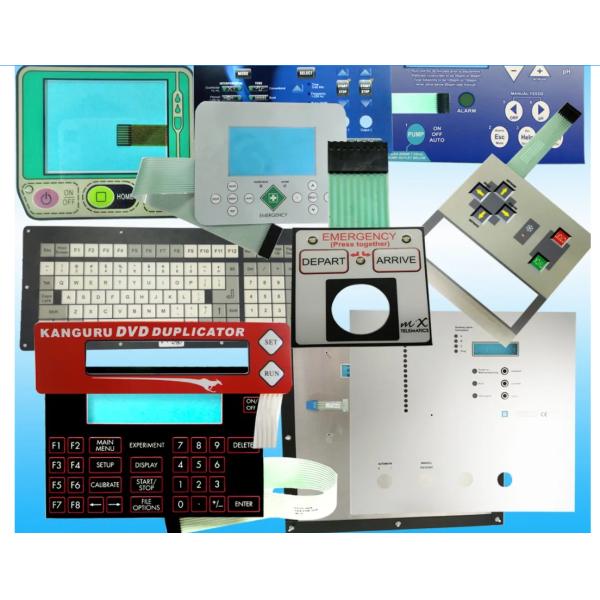

Pvc/pc/pet Membrane Switch On/off Push Button Keypad Waterproof function
Pvc/pc/pet Membrane Switch On/off Push Button Keypad Waterproof function
Pvc/pc/pet Membrane Switch On/off Push Button Keypad Waterproof function
Pvc/pc/pet Membrane Switch On/off Push Button Keypad Waterproof function
Pvc/pc/pet Membrane Switch On/off Push Button Keypad Waterproof function
Pvc/pc/pet Membrane Switch On/off Push Button Keypad Waterproof function
Pvc/pc/pet Membrane Switch On/off Push Button Keypad Waterproof function
Pvc/pc/pet Membrane Switch On/off Push Button Keypad Waterproof function
Pvc/pc/pet Membrane Switch On/off Push Button Keypad Waterproof function
Pvc/pc/pet Membrane Switch On/off Push Button Keypad Waterproof function
Specifications
Brand Name :
Esuntouch
Model Number :
EST
Certification :
ISO9001:2015
Place of Origin :
Shenzhen, Guangdong
MOQ :
1 piece
Payment Terms :
TT in advance
Supply Ability :
100000000 pcs/month
Delivery Time :
3-20 days
Packaging Details :
bubble/foam, box
Model :
OEM one button membrane switch
Application :
Remote Controller
Material :
PET PC PVC
Size :
Customized Size
Color :
RAL Color or Pantong color
Printing :
Silk Screen Printing
Surface :
Glossy or matte
key type :
flat or embossed
Back adhesive: :
3M 367 /3M 368
Price :
0.1-5 USD
Description
Product Description: Pvc/pc/pet Membrane Switch On/off Push Button Keypad Waterproof function
Pvc/pc/pet Membrane Switch On/off Push Button Keypad Waterproof function
1.Membrane keyboard Construct
Graphic Overlay:
F150 (0.15mm)
Overlay Adhesive:
DT6025 (0.125mm)
Lowwer Circuit:
FPC circuit (0.1mm)
LED Circuit Spacer:
DT6125 (0.225mm)
LED Circuit:
------ (0mm)
Rear Adhesive:
3M467 (0.005mm)
2.Electrical Properties
Operating Voltage:
≤ 50VDC
Working Current:
≤ 100mA
Loop Resistance:
<200Ω
Insulation Resistance:
50V (50MΩ)
Dielectric:
250 Vrms (50~60Hz 1min)
Contact Bounce:
< 5ms
Expected Life (Flat)
≥ 5million times
Expected Life (Tactile)
≥ 1 million times
Duraswitch
≥ 10million times
3.Mechanica Properties
Operation Force (Flat)
57~284g(2~10oz)
Operation Force (Tactile)
170~450g(6~14oz)
Operation Height (Flat)
0.1~0.5mm
Operation Height (Tactile)
0.6~1.5mm
4.Environment Parameter
Operation Temperature
-40~+80 Degree Centigrade
Storage Temperature
-40~+85 Degree Centigrade
Humidity
90%~95%, 240 hours
Atmospheric pressure
80 ~ 108kDa
Esuntouch Packaging & Shipping
Packing
1) Wrap in air bubble film
2) Put into foam box
3) Packed with extra carton box, which make sure the goods safety in transportation.
4) We accepted Customized package.
Delivery
To create and submit counter-drawings + artwork for your approval:2-3 working days
To build tooling and Sample Shipping:8-10 days
Mass Production Delivery:15-30 days after the sample confirmation
Shipping

1) Can be Shippded by international express such as DHL, FEDEX, EMS, TNT, UPS, or by Sea, by air, it's depends on customzers' requirement.
2) The tracking number will be informed once the package was delivered.
3) We will follow the shipment after we sent it. If you not receive goods on time, please contact us immediately, we will assist to get the goods smoothly.
About Esuntouch:
EsunTouch is a leading China-based professional manufacturer located in Baoan, Shenzhen. Main products are membrane switches, graphic overlays, TFT IPS LCD Display Module, capacitive & Resistive touch panel,Force Sensing Resistor, Capacitive Foil Sensor, Film Heater,Seat Sensor, flexible membrane circuit, acrylic panel, metal panel, sticker label, etc.
Our factory was established in 1995. All your orders will be processed in our ISO9001:2015 recognized plant. Excellent experience in manufacturing membrane switch for global clients for over 25 years is our strongpoint, that makes difference with our competitors.
EsunTouch has an extensive understanding about US and Europe quality standard in membrane switch and related products. Well-trained team members enable us to meet all your needs on products.
We are expecting the opportunity to hear your needs!
For quoting, design files are preferred. File in format of .ai, .cdr, .dxf, .pdf for artwork and circuit are sufficient for our quoting.
Welcome your email FRQ to sales at esuntouch dot com.
