Carbon Steel Material Withstand Voltage 0.6Mpa 200m² Non-Detachable Spiral Plate Heat Exchanger

BL Serial can non-open Spiral Plate Heat Exchanger , non-openable Coil Type Spiral Plate Heat Exchanger

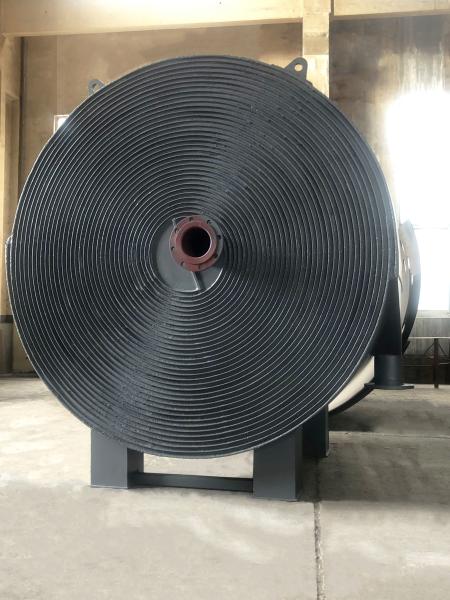

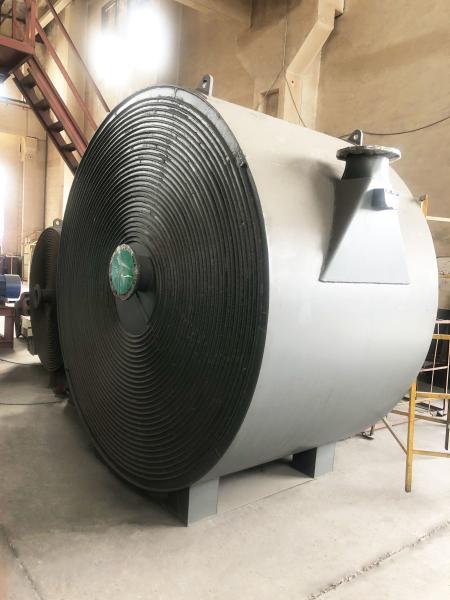

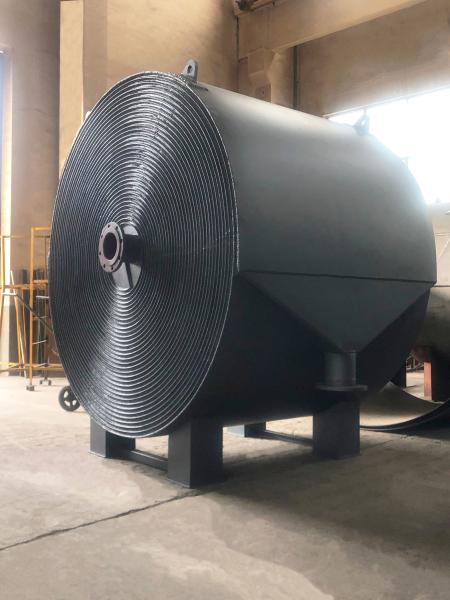

BL non-detachable Coil Type Spiral Plate Heat Exchanger

Spiral Plate Heat Exchanger Product Description

The spiral-plate heat exchanger is a kind of high-efficiency heat-exchange equipment, which is suitable for steam-steam,steam-liquid, liquid-liquid heat transfer.

It is applied to the industries such as chemistry, petroleum, solvent, medicine, foodstuff,light industry, textile, metallurgy, steel rolling, coking and so on.

It can be divided into the non-detachable/non-openable spiral-plate heat exchanger (BL)and detachable/open spiral-plate heat exchanger(KL).

Spiral Plate Heat Exchanger Structure and function

1. This equipment is made of 2 pieces of rolled steel. The rolled steel forms 2 uniform spiral channels, so 2 kinds of heat transfer media can reversely flow and the heat transfer effect is greatly enhanced.Even 2 kinds of media with small temperature difference can achieve the ideal heat transfer effect.The adapter tube on the shell uses the tangential structure, so the local resistance is low.Because the curvature of spiral channel is uniform and there is no big diversion and the total resistance is low when the liquid flows in the equipment, the designed flow rate can be improved in order to make it have higher heat transfer capacity.

2. The end face of type BL non-detachable spiral-plate heat-exchange spiral channel is sealed by welding.So, it has higher leakproofness.

3. The structural principle of type KL detachable spiral-plate heat exchanger is basically same with that of non-detachable heat exchanger. But, its 2 channels can be opened and cleaned. It can be widely applied.

4. KL model removable spiral plate heat exchanger has the same structure and principal with non-removable spiral plate heat exchanger. But its two pass way can be removed and cleaned separately and it has wider using range.

5. The spiral-plate heat exchanger can be divided into PNO.6, 1.0,1.6,2.5PMa (it refers to the maximum tolerable working pressure of single channel) according to the nominal pressure.

6. It can be divided into carbon steel and stainless steel according to the material.

7. The users can select them according to the actual process condition. Parallel combination, series combination, same gap between equipment and channel. Mixed combination: one channel is combined in parallel. One channel is combined in series. Parallel combination, series combination, same gap between equipment and channel. Mixed combination: one channel is combined in parallel. One channel is combined in series.

BL serial non-detachable spiral heat exchanger Application and feature

BL serial non-detachable spiral heat exchangers are the necessary important equipment for the heat exchange in the ethanol, solvent, food fermentation, pharmacy, petrochemical industry, coking gasification and other industries, which plays an immeasurable role in the ethanol industry.

This serial spiral plate heat exchanger is suitable for the convective heat exchange between liquid and liquid, gas and gas, gas and liquid that contains less than 50% weight of particles.

BL serial non-detachable Spiral Plate Heat Exchanger

Main specifications and technical parameters

Carbon Steel Material Withstand Voltage 0.6Mpa 200m² Non-Detachable Spiral Plate Heat Exchanger

Packaging & Shipping

1)small parts use wooden box, large equipment use plastic film.
2) Columns are fastened with iron support.
3) FOB or CIF.
4) Sea shipping.

Jiangsu Wulong Machinery Co., Ltd. is a manufacturer of heat exchanger equipment in China. our products has been exported to more than 10 countries in Europe, Africa and Southeast Asia, and are well received by customers.
