Wet Process Hammer Mill Machine SJFS88 Serial For Fresh Cassava / Sweet Potato
Wet Process Hammer Mill Machine SJFS88 Serial For Fresh Cassava / Sweet Potato
Specifications
Brand Name :
Wulong
Model Number :
SJFS88
Certification :
ISO9001
Place of Origin :
Changzhou, Jiangsu
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
standard package for seaworthy export
Delivery Time :
Delivery according to the time agreed by both parties
Rotor diameter(mm) :
880
Spindle speed :
1480 r/min
Name :
Hammer Mill Machine
Feature :
large capacity
Material :
Carbon Steel or Stainless Steel
Application :
ethanol and starch industries
Description

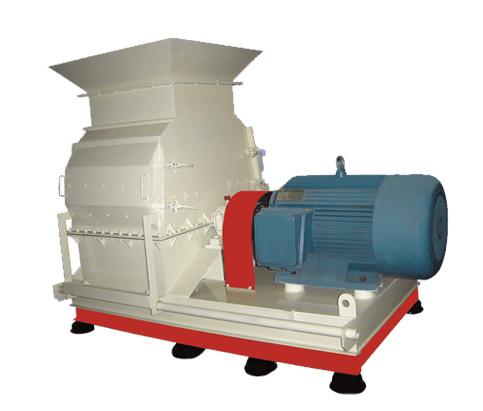

Wet Process Hammer Mill Machine SJFS88 Serial For Fresh Cassava / Sweet Potato

Application and Feature

SJFS88 serial wet process hammer mill is a new large type hammer mill developed and designed by our company from absorbing the advantages of dry and wet process hammer mill, specialized in milling raw materials such as fresh cassava, sweet potato and sugar beet for ethanol and starch industries.

● The serial hammer mill is characterized by large capacity, strong milling ability, low energy consumption, and high recovery rate, etc.

● Especially suitable for direct crushing of bulk raw materials, the machine adopts direct motor linkage, thus reducing power loss and improving economic benefits.)

● This type of hammer mill consists of rack, cover, rotor assembly, spray pipe, and motor, etc. Rotor assembly is checked in dynamic balance, balance deviation ≤5g, therefore, this type of hammer mill is characterized by compact structure, reliable and smooth running, and easy to install and operate, etc.

Main specifications and technical parameters

Items and type

SJFS88-60

SJFS88-80

SJFS88-100

SJF88-110

Rotor diameter(mm)

880

880

880

880

Width of crusher
chamber (mm)

600

800

1000

1100

Spindle speed (r/min)

1480

1480

1480

1480

Hammers

Type

II

II

II

II

Pieces

144

192

240

264

Motor

Type

Y280S-4

Y280M-4

Y315S-4

Y315M-4

Y315L1-4

Y315L2-4

Y355M-4

Power (kw)

75

90

110

132

160

200

220

Reference capacity (t/h)

10-15

15-20

20-25

25-32

Outline dimension (mm)

2280×1755×1520

2280×1755×1520

2280×1755×1520

3200×1520×1773

Reference weight (kg)

2500

3200

3500

4100
