HDTV Camera Black Satellite Coax Cable With Aluminum Tape Outer Conductor
HDTV Camera Black Satellite Coax Cable With Aluminum Tape Outer Conductor
HDTV Camera Black Satellite Coax Cable With Aluminum Tape Outer Conductor
HDTV Camera Black Satellite Coax Cable With Aluminum Tape Outer Conductor
HDTV Camera Black Satellite Coax Cable With Aluminum Tape Outer Conductor
HDTV Camera Black Satellite Coax Cable With Aluminum Tape Outer Conductor
HDTV Camera Black Satellite Coax Cable With Aluminum Tape Outer Conductor
HDTV Camera Black Satellite Coax Cable With Aluminum Tape Outer Conductor
Specifications
Brand Name :
BLG / OEM / ODM
Model Number :
COAXIAL CABLE
Certification :
CE / ROHS / ISO
Place of Origin :
CHINA
MOQ :
100 Rolls
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
3000 Rolls per Week
Delivery Time :
10 - 15 Work Days
Packaging Details :
100M / 200M Per Roll or 300M Per Wooden Spool
Inner Conductor :
Copper Clad Steel or Bare Copper
Insulation Layer :
Foam Polyethylene
Outer Conductor :
Aluminum Tape and Braiding
Jacket :
Polyvinyl Chloride
Description

Digital Flexible Coaxial Cable 75 Ohm RG6 CU / CCS For HDTV Camera Cable

Application:

Digital HDTV Video Links. Fixed Installation.

Center Conductor:

Bare Copper

18AWG

Nominal Diameter 1 x 1.02mm

Dielectric:

Skin Foam Polyethylene

Nominal Diameter: 4.6mm

Shield:

1st Shield: Al Foil 100% Coverage

2nd Shield: TC / Al - Mg Braid 95% Coverage

Jacket:

Flexible PVC / LSZH Compound

Nominal Diameter of Cable: 6.93mm

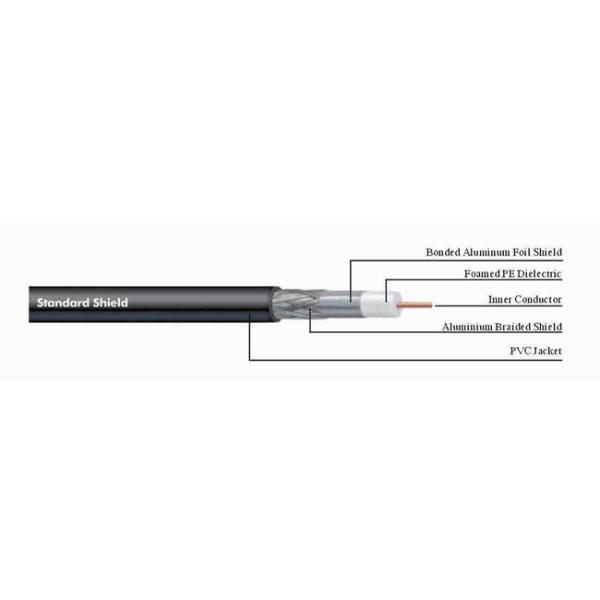

Cable Construction

Material Diameter
Inner Conductor Copper Clad Steel and Bare Copper 1.02mm
Insulation Layer Foam Polyethylene (FPE) 4.57mm
Outer Conductor Single - sided Aluminum Tape and Tinned Copper Wire or Aluminum Magnesium Alloy Braiding 5.20mm
Jacket Polyvinyl Chloride (PVC) 6.93mm

Electrical Properties and Mechanical Properties

Characteristic impedance 75 ohm
Rated capacitance 53.5 pf/m
Velocity of propagation 81%
Operating frequency 1 ~ 2000 MHz
Operating temperature - 40°C ~ + 85°C
Minimum bending radius 70 mm
VSWR 1 ~ 1000 MHz ≤ 1.15
1 ~ 2000 MHz ≤ 1.20
Attenuation at typical frequencies
MHz ≤ db / 100m MHz ≤ db / 100m
1 0.86 200 12.9
20 3.92 400 18.5
150 11 900 28.7

Packages:

* 100M / Roll, 4 Rolls / Carton

* 200M / Roll, 2 Rolls / Carton

* 300M / Wooden Reel, 1 Reel / Carton

* As Customer’s Requirements
