24AWG 26AWG BC Cat5e Computer Network Cable FTP Outdoor Waterproof HDPE Insulation
24AWG 26AWG BC Cat5e Computer Network Cable FTP Outdoor Waterproof HDPE Insulation
24AWG 26AWG BC Cat5e Computer Network Cable FTP Outdoor Waterproof HDPE Insulation
24AWG 26AWG BC Cat5e Computer Network Cable FTP Outdoor Waterproof HDPE Insulation
24AWG 26AWG BC Cat5e Computer Network Cable FTP Outdoor Waterproof HDPE Insulation
24AWG 26AWG BC Cat5e Computer Network Cable FTP Outdoor Waterproof HDPE Insulation
24AWG 26AWG BC Cat5e Computer Network Cable FTP Outdoor Waterproof HDPE Insulation
24AWG 26AWG BC Cat5e Computer Network Cable FTP Outdoor Waterproof HDPE Insulation
Specifications
Brand Name :
BLG / OEM / ODM
Model Number :
ETHERNET LAN CABLE
Certification :
CE / ROHS / ISO
Place of Origin :
CHINA
MOQ :
100 Rolls
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
3000 Rolls per Week
Delivery Time :
7 - 15 Work Days
Packaging Details :
305M / Roll / Easy Pull Box, 2 Boxes / Carton
Item :
FTP Cat5e Cable
Cable Type :
Outdoor
Cable Length :
305M / 1000FT
Conductor :
Bare Copper
Insulation :
HDPE
Outer Jacket :
Black PE
Description

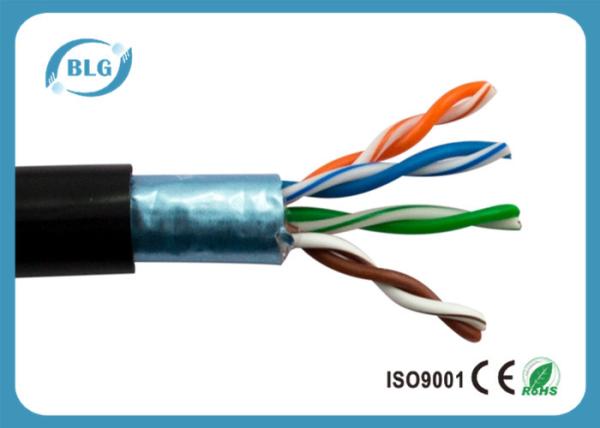

24AWG 26AWG BC Cat5e LAN Cable FTP Outdoor Waterproof Communication Cable

Features:

  • Fast and reliable connection
  • Twisted pairs with bright color for easy recognition

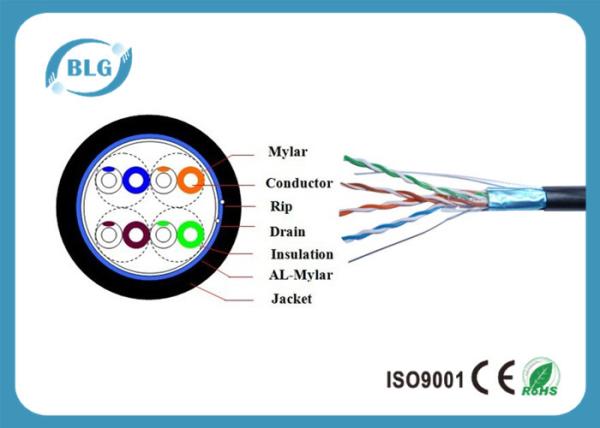

  • Polyester Tape, Drain Wire, Al Foil Shielding
  • Ripcord and foot - mark for convenient use
  • Smooth PE jacket for easy pulling in tight space
  • 1000ft per easy pull box, or as per customer's requirements
  • Sample available

Applications:

  • Computer network cabling project
  • Broadband network communication
  • Digital ISDN and ATM 155Mbps network
  • Ethernet network
  • Audio and data transmission

Cat5e FTP Outdoor Cable
Data Specifications
Inner Conductor Bare Copper / Copper - clad Aluminum
Conductor Diameter 24AWG Solid or Stranded
Insulation HDPE
Insulation Diameter 0.91 ± 0.05mm
Outer Jacket PE
Nominal O.D 5.8 ± 0.2mm
Pairs Color Code
Pair 1 Blue - white / blue
Pair 2 Orange - white / orange
Pair 3 Green - white / green
Pair 4 Brown - white / brown

Electrical Properties (at 20°C)
Conductor Resistance Max. 9.38Ω / 100m
Resistance Unbalance Max. 2%
Insulation Resistance Max. 150Ω / Km
Mutual Capacitance Max.5600pF / 100m
Capacitance Unbalance Max.330pF / 100m
Impedance 100 ± 15
Spark Test 2000V
Velocity of Propagation 67%

24AWG 26AWG BC Cat5e Computer Network Cable FTP Outdoor Waterproof HDPE Insulation24AWG 26AWG BC Cat5e Computer Network Cable FTP Outdoor Waterproof HDPE Insulation
