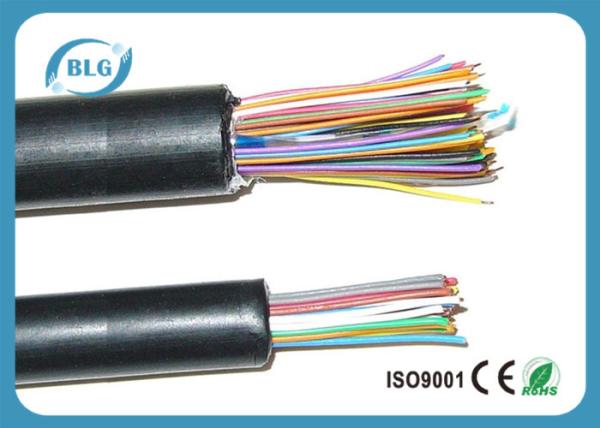

Black PE Sheath Telephone Line Cable Shield 10 / 20 / 25 / 50 / 100 Pairs Solid Copper Cable for Telephone and Secruity Monitor

Telephone Line Cable Application:

• Voice Calls,
• 2 ~ 10M Broadband Network,
• Building Intelligent Video Intercom and Security Monitoring Transmissions.
• Suitable Occasions: outdoor, waterproof, anti-aging, indoor, tube wells, anti-cold occasion.
• Working Temperature: - 30 ~ 60 °C

Telephone Line Cable construction:

Conductor

Material: 99.99% Oxygen - free Copper Wire

Conductor Nominal Diameter: 0.5 ± 0.005 mm

Conductor Elongation Rate: ≥ 15%

Insulation

Material: High Density Polyethylene ( HDPE )

Insulation Diameter: 0.88 ± 0.02 mm

Insulated Main Colors: White Red Black Yellow Purple

Insulated Auxiliary Colors: Blue Orange Green Brown Gray

Twisted: Two Conductors with Insulation Twisted

Telephone Line Cable Twisted insulation color code as table show

Telephone Line Cable Core Binding Tape:

Non - Hygroscopic Impermeable High Strength Polyester Film

Telephone Line Cable Jacket

Material: Medium - density PE Special for Cable Sheathing

Sheath Minimum Thickness: 1.4mm

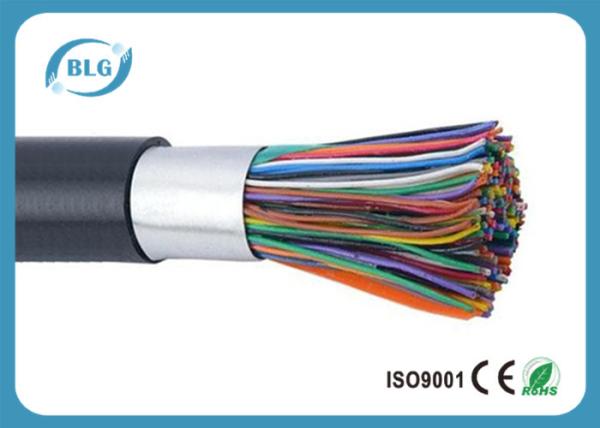

Telephone Line Cable Plastic Coated Aluminum Tape:

Plastic coated aluminum tape sheath mechanical and physical properties: meet standard YD / T 322-1996 standard.

Ripcord:

Does not absorb moisture, not oil, continuously throughout the entire cable, strong enough to open the cable.

Finished cable electrical performance: Conforms to standard YD / T 322-1996 .

The length of the cable manufacturing: 305m, 500m, 1000m, 2000m

Packing size: 305m - 70 * 40cm, 500m - 80 * 40cm, 1000m - 100 * 50cm, 2000m - 120 * 70cm

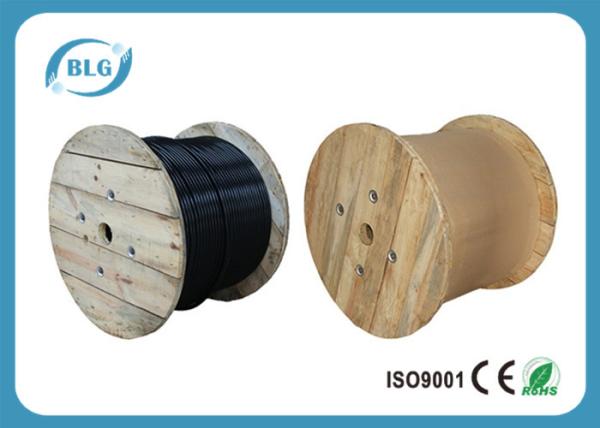

Packing mode: Wooden Drum + Bubble Film + Kraft Paper + Batten + Steel Tape Sealing

Telephone Line Cable Electrical Characteristics:

Telephone Line Cable Payment Terms:

1) L / C at sight

2) T / T: 30% deposit by T / T, 70% balance by T / T before shipment

3) Western Union: 30% deposit, 70% balance before shipment

Telephone Line Cable FAQ:

Q1: Are you a trading company or manufacturer?

A1: Shenzhen BLG is a professional manufacturer, not a trading company, Thus we can control your order from the first beginning to the last.

Q2: What kinds of products does Shenzhen BLG Cable manufacture?

A2: We specialize in the production of Cat5e Cat6 LAN Cable, Patch Cable, Telephone Cable etc..

Q3: What kind of certificates can be offered ?

A3: We can provide the products certified by CE; ISO; RoHS.

Q4: Can we have our logo or company name to be printed on your products or the package?
A4: Yes, you can. Logo and company name can be printed on the cable jacket and package boxes.

Q5: How much the Courier freight will be for the samples?

A5: Courier freight depends on the quantity, weight and carton size and your area.

Q6: How can I get your price list?

A6: Please leave your contact way to us. We will contact to you and pass our quotation sheet to you.
