50μM STP Patch Cord 2% Max Resistance Unbalance With Yellow Color 24AWG
50μM STP Patch Cord 2% Max Resistance Unbalance With Yellow Color 24AWG
50μM STP Patch Cord 2% Max Resistance Unbalance With Yellow Color 24AWG
50μM STP Patch Cord 2% Max Resistance Unbalance With Yellow Color 24AWG
50μM STP Patch Cord 2% Max Resistance Unbalance With Yellow Color 24AWG
50μM STP Patch Cord 2% Max Resistance Unbalance With Yellow Color 24AWG
Specifications
Brand Name :
OEM/BLG
Model Number :
FTP Patch Cable
Certification :
CE/ROHS/ISO
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 Pieces / Week
Delivery Time :
10 - 15 Work Days
Packaging Details :
1 Piece / PE Bag, 200 Pieces / Carton
Conductor Material :
Bare Copper
Wire Guage :
24AWG
Shielded :
Yes
Jacket :
PVC
Connector :
50μm RJ45
Length :
2~100m, customized
Description

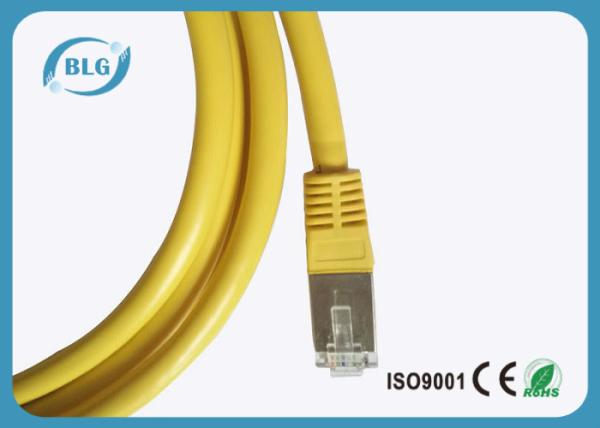

CAT6 FTP Patch Cord Cable 8P8C 50μm RJ45 Computer Networking Yellow

Item no CAT6 FTP Patch Cord Cable Insulation Average Thickness 0.29mm
Conductor Material Pure copper Insulation Minimum Thickness 0.25mm
Conductor AWG 24 Insulation Diameter 0.91mm
Conductor Diameter 7*0.2mm Pair Twist Diameter 2.30mm
Insulation Materia PE PET w=24mm h= 0.015mm
Jacket Diameter 6.0mm Drain Wire 0.40mm
jacket color customize Cable Diameter 6.0mm
Rip-cord 1*3D Jacket Material PVC
Jacket Average Thickness 0.58mm Jacket Minimum Thickness 0.53mm
printing standard or as customize
package Packing: Inner packed in coils or drums, outer packed in Carton box or pull out box or pallet,305m/box or 500m/drum, or as buyer's requirement
supply Both in stock and make to order. According to customer's need.

Mechanical Properties


Insert times ≥1500 times
Contact stability 20mΩ max variation
Pin retentively ≥110N
Elongation:Min. 300%
Tensile strength:Min.1.68Kg/mm2
Ratted Temperature: -20 up to +75°C

Electrical Properties (at 20°C)
Conductor Resistance Max.9.38Ω/100m
Resistance Unbalance Max.2%
Insulation Resistance Max.150Ω/Km
Mutual Capacitance Max.5600pF/100m
Capacitance Unbalance Max.330pF/100m
Impedance 100±15
Spark Test 2000v
Velocity of Propagation 67%

Contact point plate 2.54mm nickel core plated gold 1.27mm
Frequency: 155MHz or 300Mhz
