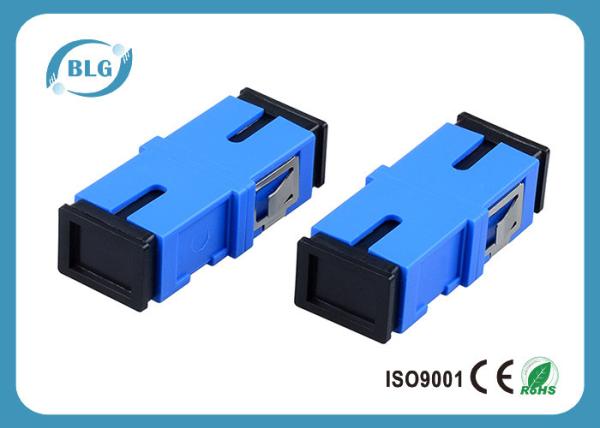

Blue Dulplex Fiber Optic Cable Accessories Adapter For FTTH Network System
Blue Dulplex Fiber Optic Cable Accessories Adapter For FTTH Network System
Blue Dulplex Fiber Optic Cable Accessories Adapter For FTTH Network System
Blue Dulplex Fiber Optic Cable Accessories Adapter For FTTH Network System
Specifications
Brand Name :
OEM
Model Number :
Adapter
Certification :
CE/ROHS/ISO
Place of Origin :
China
MOQ :
500pieces
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
5000pcs/week
Delivery Time :
3~10days
Packaging Details :
Piece/Pieces per Week fiber optic adaptor
Channel :
Dulplex; Simplex
Mode :
Singlemode & Multimode
Optional Connector :
SC,LC,FC,ST,MU,MTRJ
Material :
PVC
Application :
FTTH system
Description

Fiber Optic Cable Assemblies SM SX / DX SC / APC Fiber

Optical Adapter

Fiber optic adapters join separated connectors. They are assembled in panels and

allow connecting pigtails with patchcords. For every type of connector there is

equivalent type of adapter.

Generally there are 2 types of alignment sleeve within an adapter-phosphor bronze

for multimode and ceramic for singlemode. the adapter si purely ot support and lock the

connectors together in the distribution box.

Features:


--- Low insertion and back reflection

--- High precision alignment


--- Telcordia, TIA/EIA compliance

--- Compact design


--- Plastic housing

SPECIFICATIONS

Single mode

Multimode

Insertion Loss

<0.2dB

<0.2dB

Plug and unplug

force(g/f)

200-600

Durability

plug and unplug 1000times

Operating Temperature

-40 to +75

-40 to +75

Technical Date

Product

name

Insertion loss

Repeatability

Rensility resist

Plug times

Temperature

SC/UPC SM simplex

≤ 0.2dB

≤ 0.1dB

200g-600g

1000 times

-40℃~80℃

SC/UPC MM simplex

≤ 0.2dB

≤ 0.1dB

200g-600g

1000 times

-40℃~80℃

SC/UPC SM duplex

≤ 0.2dB

≤ 0.1dB

200g-600g

1000 times

 -40℃~80℃

SC/UPC SM duplex

≤ 0.2dB

≤ 0.1dB

200g-600g

1000 times

 -40℃~80℃

SC/UPC MM duplex

≤ 0.2dB

≤ 0.1dB

200g-600g

1000 times

 -40℃~80℃

SC/APC SM simplex

≤ 0.2dB

≤ 0.1dB

200g-600g

1000 times

 -40℃~80℃

SC/APC MM duplex

≤ 0.2dB

≤ 0.1dB

200g-600g

1000 times

 -40℃~80℃

Applications

Telecommunications, access network

Optic fiber CATV

LAN and Access Network

Terminal of the devices and multimedia

Testing and hospital devices

Industry and military applications

Blue Dulplex Fiber Optic Cable Accessories Adapter For FTTH Network SystemBlue Dulplex Fiber Optic Cable Accessories Adapter For FTTH Network System
