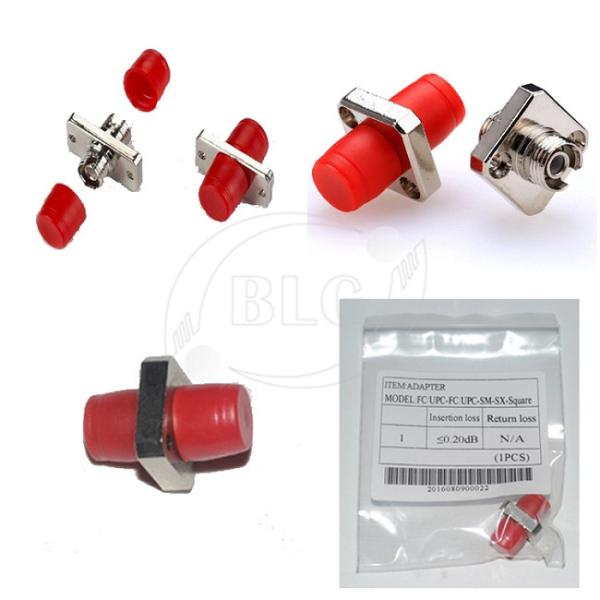

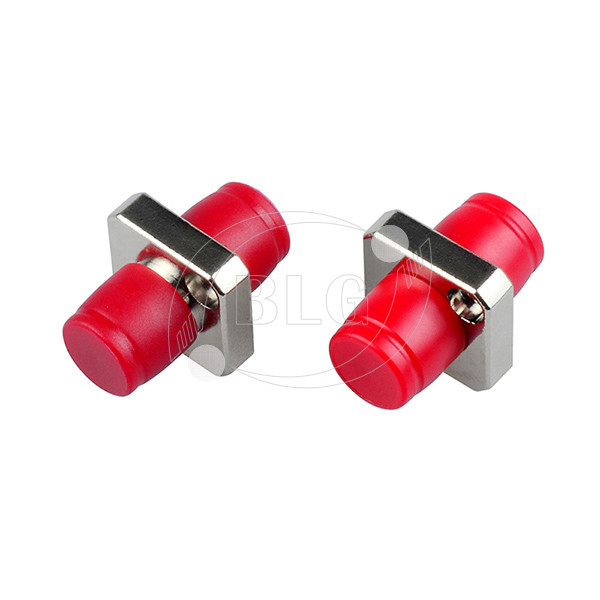

Simplex Square Fiber Optic Connector Adapters For Telecommunications Corrosion Resistant
Simplex Square Fiber Optic Connector Adapters For Telecommunications Corrosion Resistant
Simplex Square Fiber Optic Connector Adapters For Telecommunications Corrosion Resistant
Simplex Square Fiber Optic Connector Adapters For Telecommunications Corrosion Resistant
Specifications
Brand Name :
OEM
Model Number :
FC Fiber Optic Adapter
Certification :
CE/ROHS/ISO
Place of Origin :
China
MOQ :
500Pieces
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
5000pieces/week
Delivery Time :
3~10days
Packaging Details :
PP bag and carton
connector :
FC/UPC, FC/APC
Sleeve Material :
Ceramic or Brozen Sleeve
Cores :
simplex, duplex
Tensile Strength :
200 to 600N
Mode :
single mode, multi mode
Application :
FTTH FTTB FTTX Network
Description

Duplex / Simplex Square Connector FC Flange Coupler

Fiber Optic Adapter SM or MM Mode

1. Product Introduction:


Fiber optic Adapter are used to calibrate two fiber optic connectors.The types of

these adapter are FC(PC/APC),LC(simplex or duplex),ST,MU,MTRJ,E-2000 and so

on.

2. Specifications:

Connector Type

FC

Operating Wavelength

1260nm-1650nm

Insertion Loss

≤0.2dB, max 0.3dB

Return Loss

PC≥45dB ,UPC≥50dB,APC≥65dB

Exchangeability

≤0.20dB

Vibration

10-60Hz, 1.5mm ≤0.10dB

Tensile

≤0.10dB (0-15Hg, except Ø0.9mm)

Plug times

>1000 (Times), ≤0.20dB

Storage Temperature

-40°C ~ +85°C

Operating Temperature

-40°C ~ +85°C

Relative humidity

95%, (+25°C~ +65°C, after 100h)


3. Feature


1). Low insertion loss and back reflection loss

2). Ferrule end surface pre-domed

3). Precision anti-rotation key and corrosion resistant body

4). UL-rated plastic housing

5). Telcordia style boots

6). Free-floating ceramic ferrule

7). Zirconia sleeves or Phosphor bronze sleeves

8). D-shaped easily installs into panel mount

9). RoHS compliant


4. Applications:


Telecommunications,acccess network

Optic fiber CATV LAN and Access Network

Terminal of the devices multimedia

Testing and hospital deveces

Other industry and military applications

Simplex Square Fiber Optic Connector Adapters For Telecommunications Corrosion Resistant

Simplex Square Fiber Optic Connector Adapters For Telecommunications Corrosion Resistant
