Flexible Electric Cable Power Copper Rubber Insulated

Flexible Cable

Product Description

H03RN-F, H05RN-F(05RN8-F), H07RN-F(07RN8-F) is a lightweight, harmonized,

rubber insulated, flexible and jacketed multi-conductor European cord.

Basic structure

Conductor: Stranded bare or tinned soft copper wire

Insulation: EPR (Ethylene-Propylene Rubber)

Sheath: Neoprene (Chloroprene rubber)

Rated Voltage

300/300V (H03RN-F)

300/500V (H05RN-F)

450/750V (H07RN-F)

Temperature rating

Conductor operating temperature -30° C to +60° C (85° C max)

The other cables we can also produced have: H03RN-F, H05RN-F, H07RN-F etc.

Please feel free to contact us if you need more detailed information!

Structure:

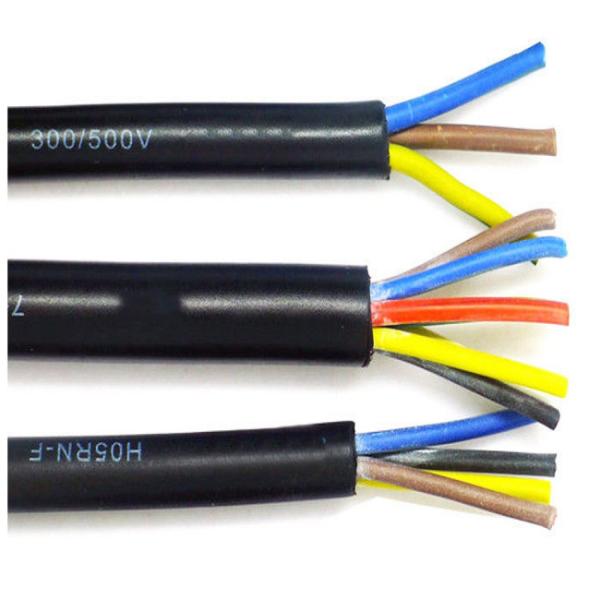

H05RN-F (Class 5 plain or tinned copper conductor/EPR rubber insulation/PCP

sheath) Lightweight rubber sheathed cable

H05RR-F (Class 5 plain or tinned copper conductor/EPR rubber insulation/ NEOPRENE sheath)Lightweight rubber sheathed cable.

H07RN-F (Class 5 plain or tinned copper conductor/EPR rubber insulation/

NEOPRENE sheath ) Heavy duty chloroprene sheathed cable

H07ZZ-F Low smoke halogen free rubber cable

H01N2-D Rubber sheathed welding cable

Working condition:

1. The rated voltage for YQ type is 300/300 V, YZ/YZW type(H05RN-F) is

300/500V,YC/YCW type(H07RN-F) is 450/750V.

2. The long-term working temperature allowed by conductor should be not more than

60° C.
3. W-type cable with climate resistance and oil resistance, suitable for outdoors or in

contact with oil occasions.

4. ZR type cable has flame retardant properties, can be used for fire-retardant

occasions.

5. Service temperature:-30ºC +60ºC

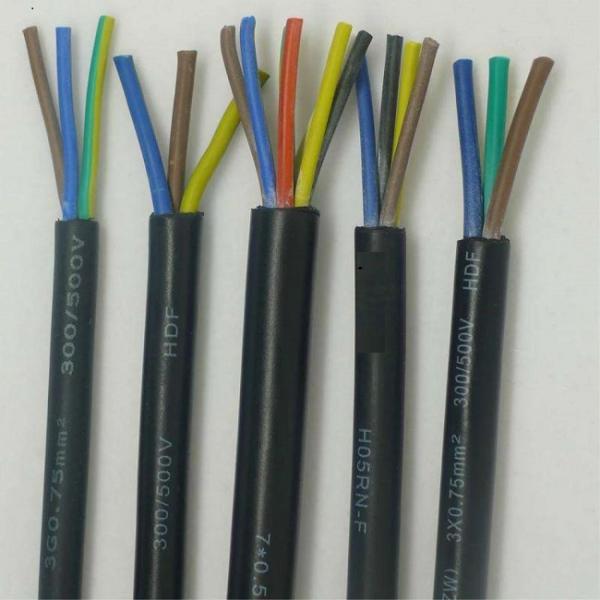

6. Core indentification:

2 cores: Brown, Blue

2 cores+earh(3G):Brown, Blue,+Green/Yellow

3 cores+earth(4G):Brown, Blue,Black,+Green/Yellow

4 cores + earth(5G):Brown, Blue,Black,Black,+Green/Yellow
