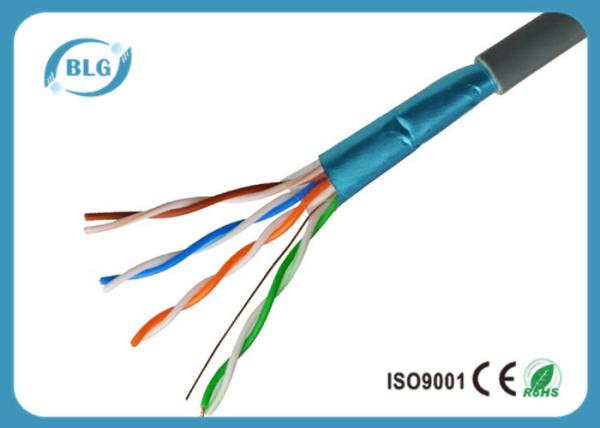

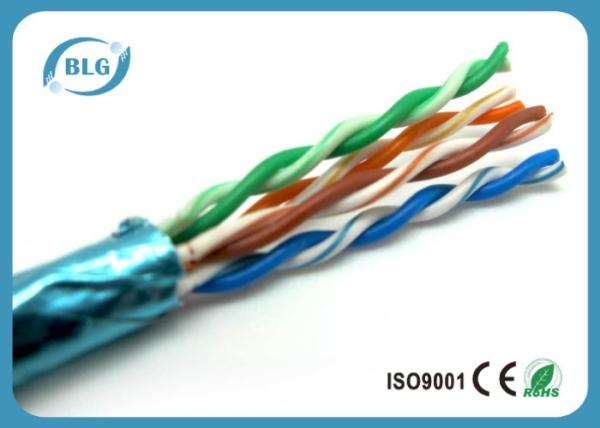

Cat5e FTP Ethernet Network Cables CCA 4 Pair Indoor 305m Pull Box Customized Length
Cat5e FTP Ethernet Network Cables CCA 4 Pair Indoor 305m Pull Box Customized Length
Cat5e FTP Ethernet Network Cables CCA 4 Pair Indoor 305m Pull Box Customized Length
Cat5e FTP Ethernet Network Cables CCA 4 Pair Indoor 305m Pull Box Customized Length
Cat5e FTP Ethernet Network Cables CCA 4 Pair Indoor 305m Pull Box Customized Length
Cat5e FTP Ethernet Network Cables CCA 4 Pair Indoor 305m Pull Box Customized Length
Specifications
Brand Name :
OEM/BLG
Model Number :
Ethernet Cable Cat5e FTP Cable
Certification :
ISO/CE/ROSH
Place of Origin :
China
MOQ :
100 Rolls
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
3000 Rolls per Week
Delivery Time :
7 - 15 Work Days
Packaging Details :
305M / Roll / Easy Pull Box, 2 Boxes / Carton
Conductor :
0.5mm CCA
Shielded :
Al-foli
Insulation :
HDPE
Drain wire :
0.4mm CCA
Color :
Optional
Jacket :
PVC
Description

Ethernet Cable Cat5e FTP Cable 0.5mm CCA 4 Pair Indoor 305m Pull Box Customized Length

Construction FTP
ConductorDimension(mm) 0.5
Core Dimension(mm) 0.9
No.of Pairs 4
Nom.OD(mm) 5.8
Type of Jacket PE/PVC/LSZH
Remark 100MHz
Messenger /

Cable Applications:
This 4-pair Category 5e cable
Propagation Delay and any other criteria as specified in the emerging standard.
Applications can include voice, ISDN, ATM 155 and 622 Mbps,
100Mbps TPDDI, Fast and Gigabit Ethernet;
Shielding protects against EMI/RFI interference.
standard compliances:
All proposed category 5e requirements as per ANSI/TIA/EIA, ISO/IEC, and CENELEC EN Standards;
ANSI/TIA/EIA 568-B.2 CAT 5e;
ISO/IEC 11801 CLASS D 2nd Edition;

CENELEC EN 50173-1;

CENELEC EN 61156-5, CENELEC EN 50288-2-1 horizontal cable;

Flame retardancy is verified according to IEC 60332-1.
OEM serves
Custom for your requirement:
Conductor: Solid bare Copper/CCS/CCA
AWG:23/ 24
Insulation: Foam PE/solid PE
Jacket: PVC/LSZH
Packing: Neutral packing/Logo packing
Packing ways: 305m/100m
Packing style: Wooden roller/Carton

Cable Product characteristic:

Structure:

A naked copper line,gather the ethylene(PE)to insulate,two insulation lines twist together,the ethylene or PVCs or low smoke jecket without halogen

Standard:

The nation standard YD/T1019-2001;ANSI/EIA/TIA-568-B.2-2001;ISO/IEC11801

Application:

Be applicable to the work station plug and other level cloth line,Can be apply in the speech, Integrated Services Digital Network(ISDN),ATM155Mbps,the 100 Mbps TPDDI, fast ether net and IEEE802.3/5/12

Standard:

EIA568A and ISO/IEC11801.

Packing:

wooden drums or reels or as your request

Cat5e FTP Ethernet Network Cables CCA 4 Pair Indoor 305m Pull Box Customized Length

Cat5e FTP Ethernet Network Cables CCA 4 Pair Indoor 305m Pull Box Customized Length

Cat5e FTP Ethernet Network Cables CCA 4 Pair Indoor 305m Pull Box Customized Length
