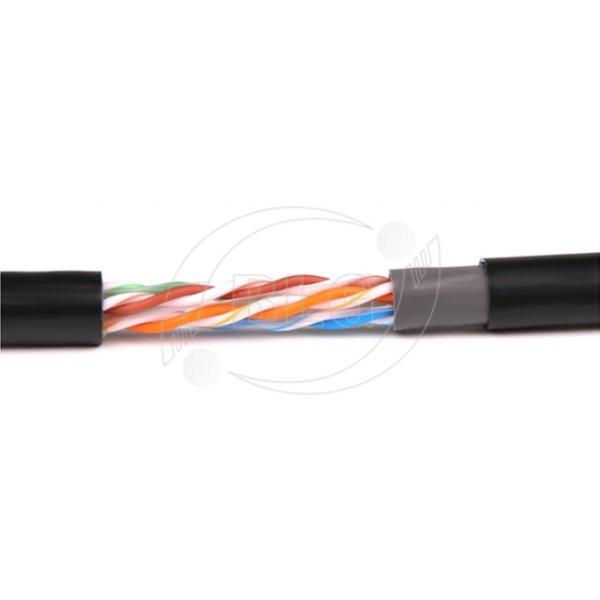

1000FT Shield Ethernet Lan Cable Gel Filled 8 Cores 24AWG 4 Pairs For Outdoor
1000FT Shield Ethernet Lan Cable Gel Filled 8 Cores 24AWG 4 Pairs For Outdoor
1000FT Shield Ethernet Lan Cable Gel Filled 8 Cores 24AWG 4 Pairs For Outdoor
1000FT Shield Ethernet Lan Cable Gel Filled 8 Cores 24AWG 4 Pairs For Outdoor
Specifications
Brand Name :
BLG / OEM / ODM
Model Number :
ETHERNET LAN CABLE
Certification :
CE / ROHS / ISO
Place of Origin :
CHINA
MOQ :
100 Rolls
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
3000 Rolls per Week
Delivery Time :
10 - 15 Work Days
Packaging Details :
305M/Roll/Easy Pull Box, 2 Boxes/Carton
Item :
Ethernet LAN Cable
Type :
Cat6 FTP
Pairs :
4 Pairs
Filler :
Jelly Filled
Shield :
Polyester Tape + Al Foil
Jacket :
Black PE
Description

1000FT Shield Cat6 LAN Cable with Gel Filled 8 Cores FTP 24AWG 23AWG CU Outdoor

Gel Filled Cat6 LAN Cable:

1) CONDUCTOR

  • Raw material of the conductor: Bare Copper
  • Conductor Diameter: 0.50mm / 0.57mm

2) INSULATION

  • Raw material of the conductor: HDPE Insulation
  • Quantity: 4 twisted pairs

Blue / white-blue; Green / white-green;

Orange / white-green; Brown / white-brown;

  • Insulation Diameter: 1.0 ± 0.02mm
  • Average thickness: 0.02245 mm
  • Minimum point thickness: 0.2220mm

3) Filler: Cross Separator

4) Jelly Filled

5) Shield: Polyester Tape + Drain Wire + Al Foil

6) RIP CORD

7) SHEATH

  • Sheath material: PE
  • Nominal Diameter: 7.30 ± 0.3mm
  • Average thickness: 0.55mm
  • Minimum point thickness: 0.5mm

Applications:

  • 100 Base - TX
  • 100 VG - AnyLan
  • 1000 Base - T ( Gigabit Ethernet )
  • ATM
  • Noisy Environments

Description:

  • Rated Temperature: 60°C, 75°C, 90°C
  • Solid Bare Copper Conductor
  • PE Jacket, RoHS Compliant
  • Complies to ANSI / TIA - 568 - C. 2, ISO / IEC 11801
  • Operating Temperature: - 30°C ~ + 50°C
  • Minimum Bending Radius: 8D

Electrical Characteristics:

Frequency (MHz) Impedance (Ohm) Return Loss (≥dB) Attenuation (≤dB/100m) NEXT (≥dB/100m) ELFEXT (≥dB/100m) PS-NEXT (≥dB/100m) PS-ELFEXT (≥dB/100m) Delay Skew (ns/100m) NVP
1 100±15 20 1.9 74.3 67.8 72.3 64.8 ≤ 45 68%
4 23 3.7 65.3 61.8 63.3 52.8
8 24.5 5.3 60.3 55.7 58.8 46.7
10 25 5.9 59.3 53.8 57.3 44.8
16 25 7.5 56.3 49.7 54.3 40.7
20 25 8.4 54.8 47.8 52.8 38.7
25 24.3 9.5 53.4 45.8 51.4 36.8
31.25 23.6 10.6 51.9 43.9 49.9 34.9
62.5 21.5 15.4 47.4 37.9 45.4 28.8
100 20.1 19.8 44.3 33.8 42.3 24.8
155 18.8 25.1 41.4 27.8 39.4 20.9
200 18 29 39.8 25.8 37.8 18.7
250 17.3 32.8 38.3 24.3 36.3 16.8
300 100 ± 20 16.8 36.4 37.1 22.9 35.1 15.2
* 350 16.3 39.8 36.1 21.8 34.1 13.9
* 400 15.9 43 35.3 20.7 33.7 12.7
* 450 100 ± 22 15.5 46.3 34.3 19.8 32.5 11.7
* 500 15.2 48.9 33.8 19 31.8 10.8

Remarks: * are the reference values

Packaging Details:

1. 305M / Roll / Color Pull Box, 2 Boxes / Carton

For 20’GP container: 700 Rolls

For 40’HQ container: 1700 Rolls

2. 200M / 270M per Roll or 500M / Wooden Drum are Available

3. Customized Package are Available

Delivery time:

As for one 40'HQ container, we can finish them 10 - 15 days after receiving the deposit and we usually complete the order within 7 - 15 days. It also depends on the items and the order quantities.

Payment terms:

1) L / C at Sight

2) T / T: 30% Deposit by T / T, 70% Balance by T / T Before Shipment

3) Western Union: 30% Deposit, 70% Balance Before Shipment
