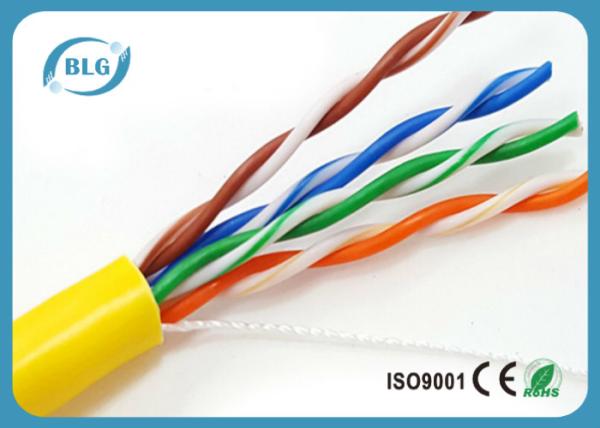

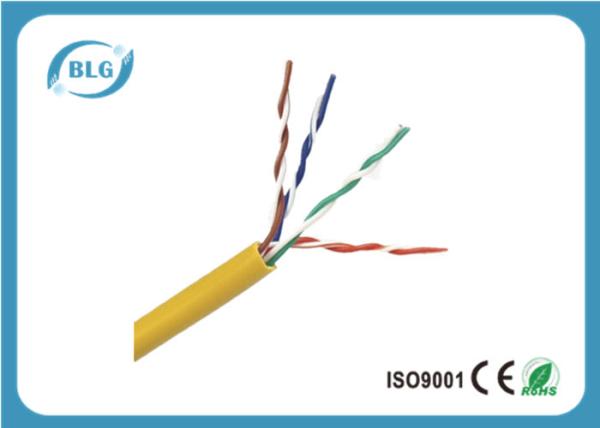

26AWG Category 5e Ethernet Cable 1000ft 4 Pair Solid Bare Copper Unshielded Twisted Pair
26AWG Category 5e Ethernet Cable 1000ft 4 Pair Solid Bare Copper Unshielded Twisted Pair
26AWG Category 5e Ethernet Cable 1000ft 4 Pair Solid Bare Copper Unshielded Twisted Pair
26AWG Category 5e Ethernet Cable 1000ft 4 Pair Solid Bare Copper Unshielded Twisted Pair
Specifications
Brand Name :
BLG/OEM
Model Number :
Cat5 Ethernet Cable
Certification :
CE/ROHS/ISO
Place of Origin :
China
MOQ :
50 rolls
Price :
Nigotable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2 container /week
Delivery Time :
7-15days
Packaging Details :
1) Lenght :1000ft per roll; 2) Packing: box +carton.
Item Name :
cat5 Ethernet Cable
Conductor OD. :
0.4MM
Material :
Bare Copper
Shlieded :
UTP
Jacket :
PVC/LOSH
Package :
Easy pull box
Description

Cat5 1000ft, 26AWG 4 Pair Solid Bare Copper Unshielded Twisted Pair

(UTP) , Bulk Ethernet Cable

No. of Core 4 Pairs
Conductor Material BC(Bare Copper)
Construction 1/0.40 ± 0.002mm
Insulation Material HDPE
Filler /
Shield Material /
Braiding /
Drain Wire Material /
Rip Cord Nylon
Jacket Material PVC
O.D. 4.8 ± 0.30mm
Color Customized
Marking Customized
Length Optional
Package Easy pull box
Temperature Rating 60℃
Operating Temperature -20℃ ~ 80℃
Voltage 30V

Electrical Specifications

Dielectric strength 2.5KV dc-2seconds
Conductor resistance Max 9.38ohm/100M at 20°C
Max. ring resistance 16.8 ohm/100M at 20°C
Max. mutual capacitance 560 pf/100M
Max. capacity unbalance 330 pf/100M
Standard impedance 100±15 ohm between 1Mhz and 100Mhz
Minimum bending radius 50mm
Working temperatures -20~60°C
Fluke Test on DTX1800(USA) 100% pass 90m Fluke Test

Application:

10/100 Base-T4(IEEE 802.3)

100 Base -TX (Gigabit Ethernet)

155/622 Mbps ATM, LSDN

100Mbps TP-PMD

Token Ring

26AWG Category 5e Ethernet Cable 1000ft 4 Pair Solid Bare Copper Unshielded Twisted Pair

26AWG Category 5e Ethernet Cable 1000ft 4 Pair Solid Bare Copper Unshielded Twisted Pair

26AWG Category 5e Ethernet Cable 1000ft 4 Pair Solid Bare Copper Unshielded Twisted Pair
