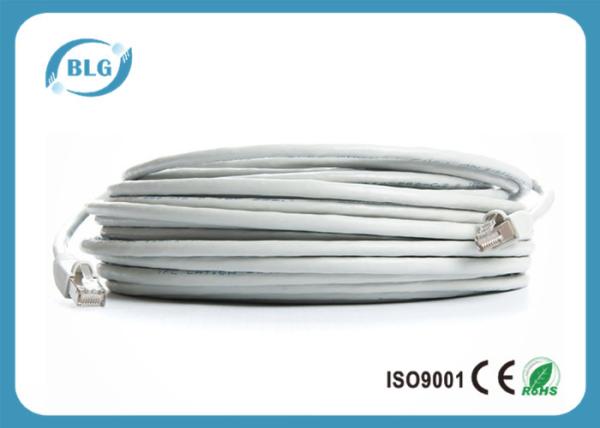

Cat6A STP Patch Cable PVC Jacket 23/24AWG Conductor With Shielded RJ45 Connectors
Cat6A STP Patch Cable PVC Jacket 23/24AWG Conductor With Shielded RJ45 Connectors
Specifications
Brand Name :
BLG / OEM / ODM
Model Number :
STP PATCH CABLE
Certification :
CE / ROHS / ISO
Place of Origin :
CHINA
MOQ :
1000 Pieces
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 Pieces / Week
Delivery Time :
10 - 15 Work Days
Packaging Details :
1 Piece / PE Bag, 200 Pieces / Carton or Customized
Item :
Shielded Patch Cable
Conductor :
23AWG / 24AWG
Connector :
FTP 8P8C RJ45 Male Plugs
Length :
1M ~ 50M Optional
Color :
Optional
Package :
Neutral or Customized
Description

Cat6A Shielded Patch Cable with Shielded RJ45 Connectors 1M 3M 5M

Application:

FTP Patch Cord is made by high quality patch cord cable and RJ45 modular plug. Head of patch cord with protection jacket can provide strain relief, help control cable bend and securely retain wires, provide multi - color, prolong operating life, easily use and mark. It ensures best transmission performance with other FTP products.

Features:

  • Multi - Length
  • Protected well, Prolong Operating Life, Easily Use
  • Fully Comply with and Exceed TIA / EIA - 568 - C. 2 & ISO / IEC 11801 Connect Hardware Requirements.

Electrical Characteristics:

Physical Parameters

  • Operating Temperature: - 20 ~ 60°C
  • Flammability Rating: CMX / CM
  • Operating Area: Working Area

Mechanical Parameters

  • Conductor Gauge: 23AWG, 24AWG
  • Pairs: 4P
  • Jacket Material: PVC
  • Wiring: 568A, 568B
  • Plug Insertion Life (minimum) : ≥ 1000 times
  • RJ45 Plug Housing Material: Polycarbonate (PC.)
  • Contact Blade: High Strength Copper Alloy, Gold Plated
  • Plug Boots Material: PVC

Electrical Parameters

  • Voltage Rating: ≤ 80Vac
  • Current Rating: ≤ 1.5A
  • Insulation Resistance: ≥ 500MΩ
  • Contact Resistance: ≤ 10MΩ

Wiring Scheme
ANSI / TIA / EIA - 568 - C. 2: T568A & T568B; ISO / IEC 11801
8 - Position Conductor / Pair Assignment
T568B: 1 - 2 / 3 - 6 / 4 - 5 / 7 - 8
T568A: 3 - 6 / 1 - 2 / 4 - 5 / 7 - 8
Construction
Construction: Solid or Strands, 23AWG, 4 Pairs Shielded Pair Identification: Pair 1= Blue/White Pair 2= Orange/White Pair 3= Green/White Pair 4= Brown/White
Cable Type: F/FTP Cat6A Patch Cable
Outer Cable Diameter: 6.6mm ± 0.2 mm Outer Jacket: PVC / LSZH Jacket
Connector
Item: RJ45 8P8C Modular Plug
Type: Shielded
IDC Blades: Phosphor Bronze, 100 micro inches nickel under plated & Gold selected
Plug Boot Type: Optional
Length: 1m ~ 50m or As per requested
Color: Grey / Green / Blue / White / Black / Red / Yellow etc.

Package:

  • 1 Piece / PE Bag, 300 PCS / Carton
  • 1 Piece / Blister Case, 200 PCS / Carton
  • OEM Package is Welcome

Delivery: 7 ~ 15 Days After the Order Confirmed

Certification:

  • CE
  • ISO
  • RoHS

Cat6A STP Patch Cable PVC Jacket 23/24AWG Conductor With Shielded RJ45 Connectors
