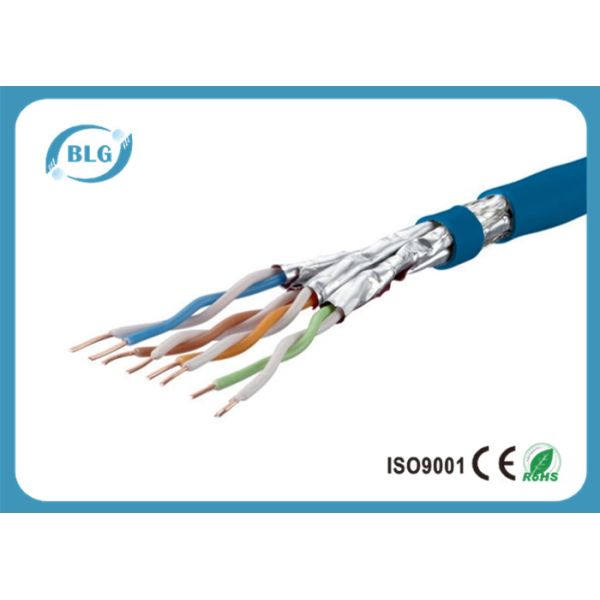

Ethernet CAT7 LAN Cable 23 AWG 1000FT Indoor

Dual Shielded Solid Copper S / FTP

S / FTP shielded CAT7 cable is ideal for voice, data, video and security applications. The CAT7 Cable is the premier solution for your network installation.

This CAT7 cable is a high speed 10 Gigabit Bulk Cable which consists of a 4 Pair / 8 Conductor configuration. These twisted pairs are individually shielded in order to repel electromagnetic interference (EMI) in electrically noisy environments. This CAT7 Cable is designed with an Overall Braid for extra interference protection. Additionally, this cable has a drain wire which grounds the electricity after it has been terminated. This drain wire is required on all shielded cable in order to prevent signal loss, cross - talk, and other performance issues.

CAT7 cable has individually shielded pairs (S / FTP), and is quality manufactured to meet and or exceed product certifications such as CAT7 T568C. 2 standards.

SPECIFICATION of Cat7 LAN Cable

1) CONDUCTOR

• Raw material of the conductor: Bare Copper
• Conductor Diameter: 7 * 0.16mm / 7 * 0.18mm

2) INSULATION

• Raw material of the conductor: Skin - foam - Skin
• Quantity: 4 twisted pairs

Blue / white - blue; Green / white - green;

Orange / white - green; Brown / white - brown;

• Insulation Diameter: 1.35 ± 0.02mm
• Average thickness: 0.02245 mm
• Minimum point thickness: 0.2220mm

3) 4 Pairs Shielded by Al Foil

4) DRAIN WIRE: O.D. 0.40mm CCS

5) OVERALL SCREEN: Al - Mg Braiding

6) RIP CORD

7) SHEATH

• Sheath material: PVC / LSZH
• Nominal Diameter: 7.70 ± 0.2mm
• Average thickness: 0.55mm
• Minimum point thickness: 0.5mm

Description:

• Rated Temperature: 60°C, 75°C, 90°C
• Solid Bare Copper Conductor
• PVC / LSZH Jacket, RoHS Compliant
• Comply to IEC61156 - 5, EN50173 & ISO 11801
• Operating Temperature: - 30°C ~ + 50°C
• Minimum Bending Radius: 8D

Electrical Characteristics:

Remarks: * are the reference values

Cable Construction:

Applications:

• VoIP
• ISDN
• Token
• 100M TP - PDM
• Analog and Data Video
• TR - 16 Active and Passive
• 155M / 522M / 1.2GATM
• IEEE802.3: 10 Base - T; 100 Base - T; 1000 Base - T; 10G Base - T

Packaging details:

1. Inner Packing: 305 meters / roll / box, 2 boxes / carton

2. Outer Packing: 2 boxes / carton

3. Other Packing: 500 meters / wooden reel or as requests

Delivery time:

As for one 40'HQ container, we can finish them 10-15 days after receiving the deposit and we usually complete the order within 7-15 days. It also depends on the items and the order quantities.

Payment terms:

1) L / C at sight

2) T / T: 30% deposit by T / T, 70% balance by T / T before shipment

3) Western Union: 30% deposit, 70% balance before shipment

FAQ:

Q1: Are you a trading company or manufacturer?

A1: Shenzhen BLG is a professional manufacturer, not a trading company, Thus we can control your order from the first beginning to the last.

Q2: What kinds of products does Shenzhen BLG Cable manufacture?

A2: We specialize in the production of Cat5e Cat6 LAN Cable, Patch Cable, Telephone Cable etc..

Q3: What kind of certificates can be offered ?

A3: We can provide the products according to ASTM, ICEA, BS, DIN, IEC and GB standards. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.

Q4: Can we have our logo or company name to be printed on your products or the package?
A4: Yes, you can. Logo and company name can be printed on the cable jacket and package boxes.

Q5: How much the Courier freight will be for the samples?

A5: Courier freight depends on the quantity, weight and carton size and your area.

Q6: How can I get your price list?

A6: Please leave your contact way to us. We will contact to you and pass our quotation sheet to you.
