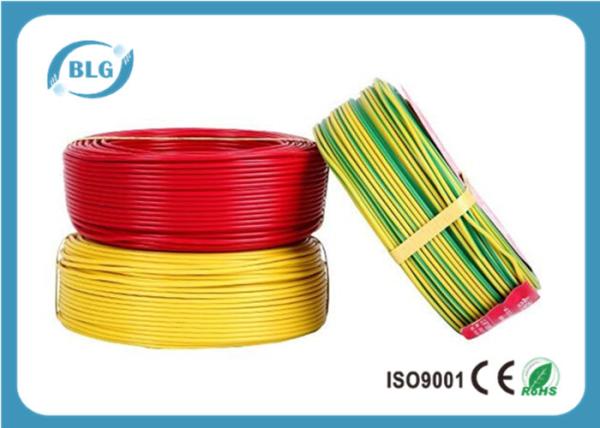

Soft BC House Electrical Cable , Single Core PVC Copper Electrical Wire
Soft BC House Electrical Cable , Single Core PVC Copper Electrical Wire
Soft BC House Electrical Cable , Single Core PVC Copper Electrical Wire
Soft BC House Electrical Cable , Single Core PVC Copper Electrical Wire
Soft BC House Electrical Cable , Single Core PVC Copper Electrical Wire
Soft BC House Electrical Cable , Single Core PVC Copper Electrical Wire
Soft BC House Electrical Cable , Single Core PVC Copper Electrical Wire
Soft BC House Electrical Cable , Single Core PVC Copper Electrical Wire
Specifications
Brand Name :
BLG / OEM / ODM
Model Number :
BV CABLE
Certification :
CE / ROHS / ISO
Place of Origin :
CHINA
MOQ :
100 Rolls
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
3000 Rolls per Week
Delivery Time :
10 - 15 Work Days
Packaging Details :
100M / 200M Per Roll or 300M or Wooden Spool
Item :
BV Insulated Copper Wire
Application :
Construction
Conductor :
Single Bare Copper
Jacket :
PVC
Description

BV Insulated Copper Wire PVC Solid Soft BC House Wiring Electrical Cable

The cable has the advantage high mechanical strength,good ambient stress resistance,good electrical properties and anti - chemical corrosion. It applies to electrical power transmission and distribution lines with AC rated Voltage up to 450 / 750V. The cable is for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.General purpose single core hard without sheathed cable conductor, it is fit for AC voltage 450 / 750V and below power plant, household appliances, instruments and telecommunications equipment, cable and wires. With anti-acid-base, oil resistance, moisture, mildew and other characteristics.

Specifications:

Single Core Cable
High Quality Affordable Cost
IEC / BS / VDE

Model Number BV CABLE
Rated Voltage 300 / 500V, 450 / 750V
Insulation PVC
Cores 1 Cores
Cross Section Area 0.5 ~ 630sqmm
Certification ISO9001, CE, RoHS
Standard applied IEC 60227, BS 6004, VDE 0281, GB / T 5023, JB / T8734
Max. working temp. 70°C, can be 90°C, 105°C per requirement
Conductor Class 1 / 2 plain annealed copper wires, solid or stranded.
Color Brown, Grey, Black, Blue, Green / Yellow or others on request
Packing 100 meters per roll or as per requirement

Name Conductor mm Insulation Related Voltage
BV 1.5mm2 Electric Cable 1.38 BC Strand PVC 2.8 450/750V
BV 2.5mm2 Electric Cable 1.75 BC Strand PVC 3.4 450/750V
BV 4mm2 Electric Cable 2.26 BC Strand PVC 3.9 450/750V
BV 6mm2 Electric Cable 7 / 1.04 BC Strand PVC 4.75 450/750V

Packing:

1. Packing Length: 100m/roll, 200m/roll, 305m/roll, 500m/roll

2. Inner packing: Transparent PE Film, Easy Pull Box, Wooden reel, Plastic Reel

3. Outer packing: Carton Box

4. Other packing available according to client's request.

Shipping:

Custom - made production lead time is 10 - 15 days.

Soft BC House Electrical Cable , Single Core PVC Copper Electrical Wire
