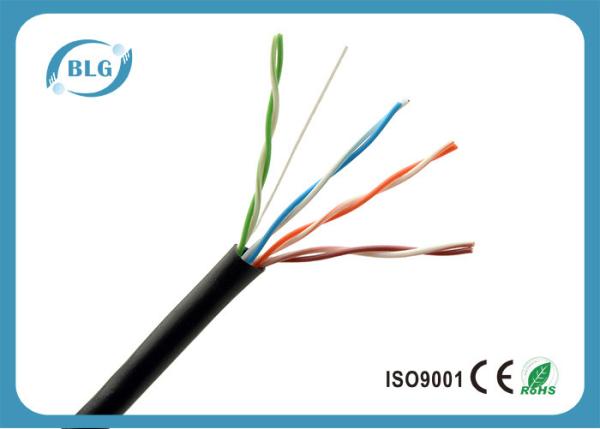

CCA Cat5e Outdoor Waterproof Ethernet Cable HDPE Insulation 305m Per Roll
CCA Cat5e Outdoor Waterproof Ethernet Cable HDPE Insulation 305m Per Roll
CCA Cat5e Outdoor Waterproof Ethernet Cable HDPE Insulation 305m Per Roll
CCA Cat5e Outdoor Waterproof Ethernet Cable HDPE Insulation 305m Per Roll
Specifications
Brand Name :
BLG/OEM/ODM
Model Number :
CAT5e LAN Cable
Certification :
CE/ROHS/ISO
Place of Origin :
China
MOQ :
50 rolls
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2 container /week
Delivery Time :
7~15days
Packaging Details :
305M per roll per easy pull box
Item :
UTP Outdoor Cat5e
Conductor Material :
BC/CCC/CCA
Wire Guage :
24/26/28AWG
Insulation :
HDPE
Jacket: :
PE
Color :
Black
Description

Outdoor UTP Cat5E LAN Cable Waterprooft Copper

Conductor 305m per Roll

Specifications for reference (we can do the cable as your reqiuments)

Product Name: UTP CAT5E Outdoor Cable

Manufacturer code: BLG052401A

Category: CAT5E cables

Manufacturer: BLG

High quality Cat 5e Ethernet cable for all local area networks

connections. The Cat 5e cable is suitable for Fast Fast

Ethernet and Gigabit networks. The RoHS-certified product is

individually wrapped in plastic bag with product code and

the type of product labeling.

All Cat5e / 6 / 6A cables imported by Microdata

the wires are made of copper (Bare Copper, BC) and not in them

no messy performance-impairing, endurance

lower or lower fire safety

Technical information:

• Cable type: Cat 5e UTP

• Conductor : 24AWG BC/CCA

• Insulation: 0.9mm HDPE

• Rip cord: Yes

• Jacket Material: PE

Conductor Insulation Core Number Filler Jacket
AWG

Specification

(mm)

 Material

Thickness

(NOM.mm)

 Material

Thickness

(NOM.mm)

 OD (NOM.mm)
26 1/0.404 HD-PE 0.18 4P PE Cross PVC or LSNH 0.55 5.5
7/0.16 HD-PE 0.18 4P PE Cross PVC or LSNH 0.55 5.5
24 1/0.58 HD-PE 0.18 4P PE Cross PVC or LSNH 0.55 6.5
1/0.58 HD-PE 0.18 4P FM-PE Thin slice PVC or LSNH 0.55 6.0
7/0.203 HD-PE 0.18 4P PE Cross PVC or LSNH 0.55 6.2
7/0.203 HD-PE 0.18 4P FM-PE Thin slice PVC or LSNH 0.55 5.8

Frequency Return Loss Attenuation NEXT PSNEXT ELFEXT PSELFEXT Characteristic Impedance Transmission Delay
MHZ dB dB ≥dB dB ≥dB ≤dB ohm ≤ns/100m
1.0 23.0 2.0 65.3 62.3 64.0 61.0 100±15 570.0
4.0 23.0 4.1 56.3 53.3 52.0 49.0 100±15 552.0
10.0 23.0 6.5 50.3 47.3 44.0 41.0 100±15 545.4
16.0 23.0 8.2 47.2 44.2 39.9 36.9 100±15 543.0
20.0 23.0 9.3 45.8 42.8 38.0 35.0 100±15 542.0
31.25 21.0 11.7 42.9 39.9 34.1 31.1 100±15 540.4
62.5 18.0 17.0 38.4 35.4 28.1 25.1 100±15 538.6
100.0 16.0 22.0 35.3 32.3 24.0 21.0 100±15 537.6

CCA Cat5e Outdoor Waterproof Ethernet Cable HDPE Insulation 305m Per RollCCA Cat5e Outdoor Waterproof Ethernet Cable HDPE Insulation 305m Per Roll
