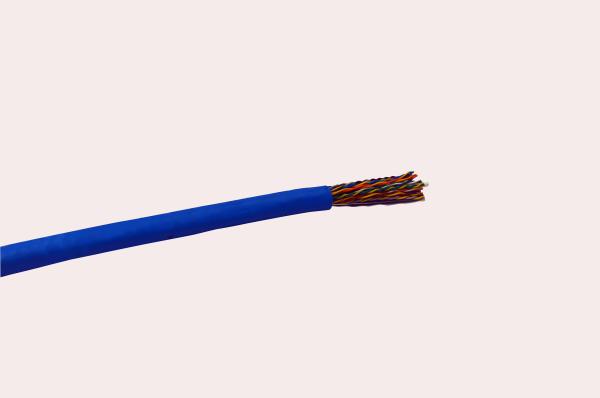

25PRS 350MHZ U/UTP Ethernet Lan Cable CAT5E 24AWG for Network Communication
25PRS 350MHZ U/UTP Ethernet Lan Cable CAT5E 24AWG for Network Communication
25PRS 350MHZ U/UTP Ethernet Lan Cable CAT5E 24AWG for Network Communication
25PRS 350MHZ U/UTP Ethernet Lan Cable CAT5E 24AWG for Network Communication
Specifications
Brand Name :
YYS
Model Number :
25PRSCAT5E
Certification :
ETL UL CPR
Place of Origin :
CHINA
MOQ :
10KF
Packaging Details :
305M/PULL BOX, 500FT/BOX
Flame retard :
CMR
Approved :
ETL UL
Compliant :
RoSH
Description

25PRS 350MHZ U/UTP Ethernet Lan Cable CAT5E 24AWG for Network Communication

Cat5e cable Application:

1. Computer Network Cabling Project

2. Broadband Network Communication

3. Digital ISDN Network and ATM 155Mbps Network

4. Ethernet Network

5. Audio an

Cable Construction

Conductor Solid Bare Copper
AWG 24
Conductor Dia. (±0.005mm) 0.505
Insulation PE
Assembly Dia.(mm) 10.50
Jacket PVC
Outer Dia.(±0.30mm) 12.50
Rip Cord Per request

Insulations Colors

The color of the wire pair in cables Pair17 Orange-Yellow
Pair1 Blue-White Pair9 Brown-Red Pair18 Green-Yellow
Pair2 Orange-White Pair10 Gray-Red Pair19 Brown-Yellow
Pair3 Green-White Pair11 Blue-Black Pair20 Gray-Yellow
Pair4 Brown-White Pair12 Orange-Black Pair21 Blue-Violet
Pair5 Gray-White Pair13 Green-Black Pair22 Orange-Violet
Pair6 Blue-Red Pair14 Brown-Black Pair23 Green-Violet
Pair7 Orange-Red Pair15 Gray-Black Pair24 Brown-Violet
Pair8 Green-Red Pair16 Blue-Yellow Pair25 Gray-Violet

Mechanical Characteristics:

Test Object Jacket
Test Material FR-PVC
Before Tensile Strength (Mpa) >=13.8
Aging Elongation (%) >=100
Aging Condition (oCxhrs) 100x168
After Tensile Strength (Mpa) >=85% of unaged
Aging Elongation (%) >=50% of unaged
Cold Bend(-20±2oCx4hrs) No crack

Performance

1.0-150.0MHz Delay Skew (ns/100m) <=45
Pair-to-Ground Capacitance Unbalance (pF/100m) <=330
Max. Conductor DC Resistance 20oC (ohms/km) 93.8
Resistance Unbalance (%) <=5

Frequency Return loss Attenuation NEXT
(MHz) (Min dB) Max (dB/100m) (Min dB)
0.772 16.7 1.8 67.0
1 17.0 2.0 65.3
4 18.8 4.1 56.3
8 19.7 5.8 51.8
10 20.0 6.5 50.3
16 20.0 8.2 47.3
20 20.0 9.3 45.8
25 19.3 10.4 44.3
31.25 18.6 11.7 42.9
62.5 16.5 17.0 38.4
100 15.1 22.0 35.3
Frequency PSNEXT ELFEXT Delay
(MHz) Min (dB) Min (dB/100m) Max (ns/100m)
0.772 64.0 63.0 574.0
1 62.3 60.8 570.0
4 53.3 48.7 552.0
8 48.8 42.7 546.0
10 47.3 40.8 545.0
16 44.3 36.7 543.0
20 42.8 34.7 542.0
25 41.3 32.8 541.0
31.25 39.9 30.9 540.0
62.5 35.4 24.8 538.0
100 32.3 20.8 537.0

FAQ
1. Q: What kind of cable do you produce?
We specialize in producing all kinds of LAN cable,Speaker cable, Security Cable Especially CAT5E,Cat6, Cat6A UTP/ S/FTP, CMP, CMR,CM,CMX, CL2,CL3,FPLP, VDSL,ASDL,etc.
2. what's your MOQ?

A: Our MOQ is 10 pieces per item. Free samples can be sent for your quality evaluation.


3. Q: What’s your delivery time?
Normally, our delivery time is 7-15 days after receiving deposit. Base on the quantity of the order.


4. Q: What are your payment terms?
We accept T/T, L/C. Western Union,Other payments accept through negotiation.

5. Q: What is your manner of packing?
The color box , cartons and Wooden Drum

6. Q: Can your factory customize cables based on customer’s samples?
Yes, we can. OEM is welcomed. Our R&D team is strong in developing cable. Our regular customers got great profit from these outstanding cables
