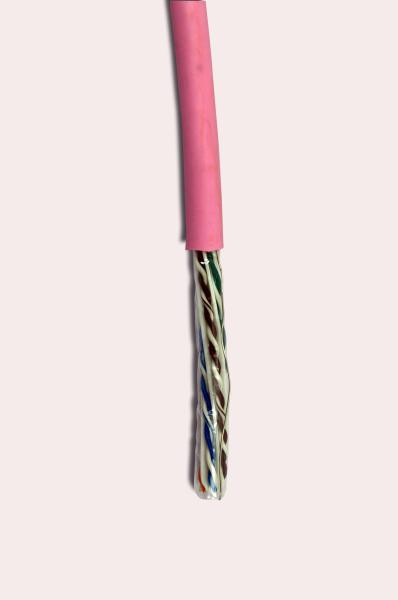

CMR Flame Retard Cable UTP Cat 6a , 4 Pair Ethernet Lan Network Cable
CMR Flame Retard Cable UTP Cat 6a , 4 Pair Ethernet Lan Network Cable
Specifications
Brand Name :
YYS
Model Number :
CAT6A UTP CMR
Certification :
ETL,CE,CPR
Place of Origin :
CHINA
MOQ :
10KF
Supply Ability :
1000KF
Delivery Time :
3-4 WEEKS
Packaging Details :
DRUM PACK
CAT6A :
100% PASS FLUKE 1800 TEST
CMR :
FLAME RETARD
SPEED :
REACH UP TO 10G
Conductor :
BARE COPPER
Description

CMR Flame Retard Cable UTP Cat 6a , 4 Pair Ethernet Lan Network Cable

Category 6A performs at improved specifications, in particular in the area of alien crosstalk as compared to Cat 6 UTP (unshielded twisted pair), which exhibited high alien noise in high frequencies.

CONSTRUCTION

Conductor Solid Bare Copper
AWG 23
Conductor Dia. (+/-0.005mm) 0.57
Jacket FR-PVC
Outer Dia.(±0.20mm) 7.00


COLOR

The color of the wire pair in cables
A:Blue-White with Blue
B:Orange-White with Orange
C:Brown-White with Brown
D:Green-White with Green


ELECTRICAL CHARACTERISTICS

1.0-100MHz Impedance (ohms) 100 ± 12
100-350MHz Impedance (ohms) 100 ± 15
350-600.0MHz Impedance (ohms) 100 ± 22
Delay SKEW: 25ns/100M (MAX)
Max. Propagation Delay: 534+36 ns/100m
Pair-to-Ground Capacitance Unbalance (pF/100m) <=330
Max. Conductor DC Resistance 20oC (ohms/km) 93.8
Resistance Unbalance (%) <=3.5
Nominal velocity of propagation(NVP) 72%


MECHANICAL PROPERTIS

Test Object Jacket
Test Material PVC
Before Tensile Strength (Mpa) >=13.8
Aging Elongation (%) >=100
Aging Condition (oCxhrs) 100x168
After Tensile Strength (Mpa) >=75% of unaged
Aging Elongation (%) >=75% of unaged
Cold Bend(-20±2oCx4hrs) No crack
300hours weatherometer test PASS


Transmission properties

Frequency Return loss Attenuation NEXT
(MHz) (Min dB) Max (dB/100m) (Min dB)
1 20.0 2.1 74.3
4 23.0 3.8 65.3
8 24.5 5.3 60.8
10 25.0 5.9 59.3
16 25.0 7.5 56.2
20 25.0 8.4 54.8
25 24.3 9.4 53.3
31.25 23.6 10.5 51.9
62.5 21.5 15.0 47.4
100 20.1 19.1 44.3
200 18 27.6 43.8
250 17.3 31.1 42.3
300 16.8 34.3 41.1
400 15.9 40.1 39.3
500 15.2 45.3 37.8
600 15 50.1 36.6
Frequency PSNEXT ELFEXT Delay
(MHz) Min (dB) Min (dB/100m) Max (ns/100m)
1 72.3 71.8 570.0
4 63.3 59.8 552.0
8 58.8 53.7 546.7
10 57.3 51.8 545.4
16 54.2 47.7 543.0
20 52.8 45.8 542.0
25 51.3 43.8 541.2
31.25 49.9 41.9 540.4
62.5 45.4 35.9 538.6
100 42.3 31.8 538.0
200 37.8 25.8 537
250 36.3 23.5 536
300 35.1 22.3 536
400 33.3 19.8 536
500 32 17.8 536
600 31.5



DESCRIPTION
• 23 AWG 4 Pair U/UTP 10G Category 6A cable tested to ANSI/TIA 568-C.2 for 10Gbps @500Mhz premium grade, high performance for top level network cabling for maximum headroom and bandwidth. Available in Wood Reel for easier installation.

FEATURES AND BENEFITS
• Category 6A performs at improved specifications, particularly in the area of alien crosstalk. Category 6A make use of their higher standards by allowing full 10GBASE-T transmission speeds of up to 10Gbps, at 500MHz of signal bandwidth, over 100 meters (330 ft)
• Improved cable temperature rating (750 C Plenum) for greater protection against increased operating temperatures and for high-wattage applications
• The internal separator optimizes each pair for superior electrical performance and maintains flexibility. This unique spline stabilizes each pair to create a smaller, round cable profile

APPLICATIONS
• IEEE 802.3 10G Base-T, 1000Base-T, 100Base-TX, 10Base-T, PoE, PoE+ • ANSI/TIA 854: 1000Base-TX
• CDDI, Token Ring, ATM
• Digital Video
• Broadband and Baseband Analog Video

STANDARD COMPLIANCES
• ANSI/TIA 568-C.2
• ANSI/TIA 862 (Building Automation)
• ISO/IEC 11801 Ed. 2.0 (Class EI)
• ICEA 8-102-700 (Category 6 or 5E)
• REACH Compliant • CPR Compliant (Fully Comply to 305/2011 & EN 50575:2014-09)
• RoHS Compliant Directive 2002/95/EG

CMR Flame Retard Cable UTP Cat 6a , 4 Pair Ethernet Lan Network Cable

FAQ
1. Q: What kind of cable do you produce?
We specialize in producing all kinds of LAN cable,Speaker cable, Security Cable Especially CAT5E,Cat6, Cat6A UTP/ S/FTP, CMP, CMR,CM,CMX, CL2,CL3,FPLP, VDSL,ASDL,etc.
2. what's your MOQ?

A: Our MOQ is 10 pieces per item. Free samples can be sent for your quality evaluation.
3. Q: What’s your delivery time?
Normally, our delivery time is 7-15 days after receiving deposit. Base on the quantity of the order.
4. Q: What are your payment terms?
We accept T/T, L/C. Western Union,Other payments accept through negotiation.
5. Q: What is your manner of packing?
The color box , cartons and Wooden Drum
6. Q: Can your factory customize cables based on customer’s samples?
Yes, we can. OEM is welcomed. Our R&D team is strong in developing cable. Our regular customers got great profit from these outstanding cables
