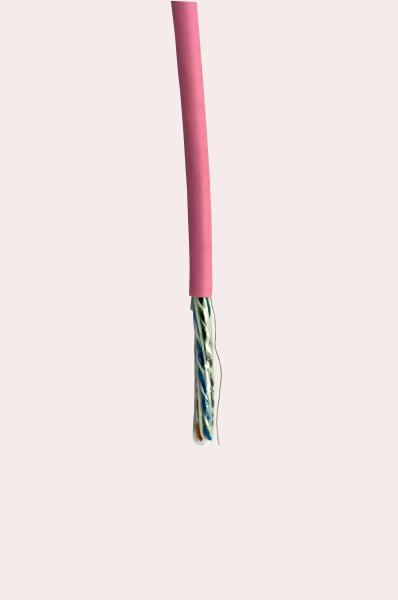

Communication Cat6a UTP Cable , Network 23 AWG 4 Pair CMP Lan Cable
Communication Cat6a UTP Cable , Network 23 AWG 4 Pair CMP Lan Cable
Specifications
Brand Name :
YYS
Model Number :
CAT6A U/UTP CMP
Certification :
ETL,CE,CPR
Place of Origin :
CHINA
MOQ :
10KF
Supply Ability :
1000KF
Delivery Time :
3-4 WEEKS
Packaging Details :
DRUM PACK
CAT6A :
100% PASS FLUKE 1800 TEST
CMP :
FLAME RETARD
SPEED :
REACH UP TO 10G
Description

Big Payout Cat6a U/Utp Cmp Lan Cable Can Pass Fluke 1800 Test 10g At 500mhz Communication Cable

DESCRIPTION
• 23 AWG 4 Pair U/UTP 10G Category 6A cable tested to ANSI/TIA 568-C.2 for 10Gbps @500Mhz premium grade, high performance for top level network cabling for maximum headroom and bandwidth. Available in Wood Reel for easier installation.
FEATURES AND BENEFITS
• Category 6A performs at improved specifications, particularly in the area of alien crosstalk. Category 6A make use of their higher standards by allowing full 10GBASE-T transmission speeds of up to 10Gbps, at 500MHz of signal bandwidth, over 100 meters (330 ft)
• Improved cable temperature rating (750 C Plenum) for greater protection against increased operating temperatures and for high-wattage applications
• The internal separator optimizes each pair for superior electrical performance and maintains flexibility. This unique spline stabilizes each pair to create a smaller, round cable profile

CONSTRUCTION

ConductorSolid Bare Copper
AWG23
Conductor Dia. (+/-0.005mm)0.58
JacketPVC (CMP)
Outer Dia.(±0.20mm)8.15



COLOR

The color of the wire pair in cables
A:Blue-White with Blue
B:Orange-White with Orange
C:Brown-White with Brown
D:Green-White with Green


ELECTRICAL CHARACTERISTICS

1.0-100MHz Impedance (ohms)100 ± 12
100-350MHz Impedance (ohms)100 ± 15
350-600.0MHz Impedance (ohms)100 ± 22
Delay SKEW:25ns/100M (MAX)
Max. Propagation Delay:534+36 ns/100m
Pair-to-Ground Capacitance Unbalance (pF/100m)<=330
Max. Conductor DC Resistance 20oC (ohms/km)93.8
Resistance Unbalance (%)<=3.5
Nominal velocity of propagation(NVP)72%


MECHANICAL PROPERTIS

Test Object Jacket
Test Material PVC
BeforeTensile Strength (Mpa) >=13.8
AgingElongation (%) >=100
Aging Condition (oCxhrs) 100x168
AfterTensile Strength (Mpa)>=75% of unaged
AgingElongation (%)>=75% of unaged
Cold Bend(-20±2oCx4hrs) No crack
300hours weatherometer test PASS


Transmission properties

FrequencyReturn lossAttenuationNEXTACRF
(MHz)(Min dB)Max (dB/100m)(Min dB)(dB/100m)
120.02.174.371.8
423.03.865.359.8
824.55.360.853.7
1025.05.959.351.8
1625.07.556.247.7
2025.08.454.845.8
2524.39.453.343.8
31.2523.610.551.941.9
62.521.515.047.435.9
10022.019.144.331.8
2002027.643.825.8
25019.331.142.323.8
30018.834.341.122.3
40018.040.139.319.8
5001745.337.817.8
60016.650.136.6--
7501656.835.2--
FrequencyPSNEXTELFEXTDelay--
(MHz)Min (dB)Min (dB/100m)Max (ns/100m)
172.371.8570.0
463.359.8552.0
858.853.7546.7
1057.351.8545.4
1654.247.7543.0
2052.845.8542.0
2551.343.8541.2
31.2549.941.9540.4
62.545.435.9538.6
10042.331.8538.0
20041.825.8537
25040.323.5536
30039.122.3536
40037.319.8536
50035.817.8536
60034.6----
75033.2----



APPLICATIONS
• IEEE 802.3 10G Base-T, 1000Base-T, 100Base-TX, 10Base-T, PoE, PoE+ • ANSI/TIA 854: 1000Base-TX
• CDDI, Token Ring, ATM
• Digital Video
• Broadband and Baseband Analog Video

STANDARD COMPLIANCES
• ANSI/TIA 568-C.2
• ANSI/TIA 862 (Building Automation)
• ISO/IEC 11801 Ed. 2.0 (Class EI)
• ICEA 8-102-700 (Category 6 or 5E)
• REACH Compliant • CPR Compliant (Fully Comply to 305/2011 & EN 50575:2014-09)
• RoHS Compliant Directive 2002/95/EG

Communication Cat6a UTP Cable , Network 23 AWG 4 Pair CMP Lan Cable

FAQ
1. Q: What kind of cable do you produce?
We specialize in producing all kinds of LAN cable,Speaker cable, Security Cable Especially CAT5E,Cat6, Cat6A UTP/ S/FTP, CMP, CMR,CM,CMX, CL2,CL3,FPLP, VDSL,ASDL,etc.
2.what's your MOQ?

A: Our MOQ is 10 pieces per item. Free samples can be sent for your quality evaluation.
3. Q: What’s your delivery time?
Normally, our delivery time is 7-15 days after receiving deposit. Base on the quantity of the order.
4. Q: What are your payment terms?
We accept T/T, L/C. Western Union,Other payments accept through negotiation.
5. Q: What is your manner of packing?
The color box , cartons and Wooden Drum
6. Q: Can your factory customize cables based on customer’s samples?
Yes, we can. OEM is welcomed. Our R&D team is strong in developing cable. Our regular customers got great profit from these outstanding cables
