Signal Control Access Control Cable Multi Core Fire Resistant Long Service Life
Signal Control Access Control Cable Multi Core Fire Resistant Long Service Life
Signal Control Access Control Cable Multi Core Fire Resistant Long Service Life
Signal Control Access Control Cable Multi Core Fire Resistant Long Service Life
Specifications
Brand Name :
YYS
Model Number :
ACCCMP1802
Certification :
ETL UL CPR
Place of Origin :
CHINA
MOQ :
10KF
Packaging Details :
305M/Drum, 500FT/Drum
Flame retard :
CMP
Approved :
ETL UL
Compliant :
UL 444, ANSI/TIA/EIA-568C.2-10
Suitable :
signal control
Description

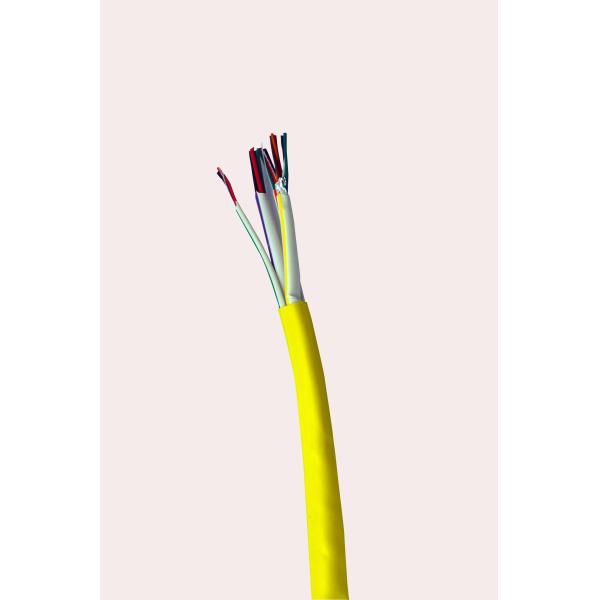

Access Control Cable(4cx18awg+4cx22awg+2cx22awg+3p22awg)CMP

Cable Construction

Conductor A Stranded Bare Copper
AWG 3PAIRS X 22
Conductor Dia. (+/-0.005mm) 7/0.24
Insulation A LOW SMOKE FR PVC
Average Thickness(mm) 0.200
Min. Point Thickness(mm) 0.170
Insulation Dia.(±0.05mm) 1.15
Twisted Pair Dia.(±0.02mm) 2.3
white-green, red-black, orange-brown
AL-FOIL Overlapping>25%
DRAIN WIRE 7/0.18TC
PE-TAPE Overlapping>25%
INNER JACKET A LOW SMOKE FR PVC
WHITE COLOR (with yellow strip) OD:5.10+/-0.10mm
Conductor B Stranded Bare Copper
AWG 4CX 18
Conductor Dia. (+/-0.008mm) 7/0.38
Insulation B LOW SMOKE FR PVC
Average Thickness(mm) 0.200
Min. Point Thickness(mm) 0.170
Insulation Dia.(±0.05mm) 1.55
4 CORES ASSEMBLY(RED,BLACK,WHITE,GREEN)
INNER JACKET B LOW SMOKE FR PVC
WHITE COLOR (with purple strip) OD:4.70+/-0.10mm

Conductor C Stranded Bare Copper
AWG 4CX 22
Conductor Dia. (+/-0.008mm) 7/0.24
Insulation C LOW SMOKE FR PVC
Average Thickness(mm) 0.200
Min. Point Thickness(mm) 0.170
Insulation Dia.(±0.05mm) 1.15
4 CORES ASSEMBLY(RED,BLACK,WHITE,GREEN)
INNER JACKET C LOW SMOKE FR PVC
WHITE COLOR (with red strip) OD:3.8+/-0.10mm
Conductor D Stranded Bare Copper
AWG 2CX 22
Conductor Dia. (+/-0.008mm) 7/0.24
Insulation D LOW SMOKE FR PVC
Average Thickness(mm) 0.200
Min. Point Thickness(mm) 0.170
Insulation Dia.(±0.05mm) 1.15
2 CORES ASSEMBLY(RED,BLACK,)
INNER JACKET D LOW SMOKE FR PVC
WHITE COLOR (with green strip) OD:3.2+/-0.10mm
Assembly(A+C+B+D)
OUT JACKET( yellow color) LOW SMOKE FR PVC
DIA . 11.5+/-0.30mm

Mechanical Characteristics:

Test Object Jacket
Test Material FR-PVC
Before Tensile Strength (Mpa) >=13.8
Aging Elongation (%) >=100
Aging Condition (oCxhrs) 100x168
After Tensile Strength (Mpa) >=75% of unaged
Aging Elongation (%) >=50% of unaged
Cold Bend(-20±2oCx4hrs) No crack

FAQ
1. Q: What kind of cable do you produce?
We specialize in producing all kinds of LAN cable,Speaker cable, Security Cable Especially CAT5E,Cat6, Cat6A UTP/ S/FTP, CMP, CMR,CM,CMX, CL2,CL3,FPLP, VDSL,ASDL,etc.
2. what's your MOQ?

A: Our MOQ is 10 pieces per item. Free samples can be sent for your quality evaluation.


3. Q: What’s your delivery time?
Normally, our delivery time is 7-15 days after receiving deposit. Base on the quantity of the order.


4. Q: What are your payment terms?
We accept T/T, L/C. Western Union,Other payments accept through negotiation.

5. Q: What is your manner of packing?
The color box , cartons and Wooden Drum

6. Q: Can your factory customize cables based on customer’s samples?
Yes, we can. OEM is welcomed. Our R&D team is strong in developing cable. Our regular customers got great profit from these outstanding cables
