850nm 300m SC GBIC Transceiver Module 10G X2 SR MM Compatible With Cisco
850nm 300m SC GBIC Transceiver Module 10G X2 SR MM Compatible With Cisco
850nm 300m SC GBIC Transceiver Module 10G X2 SR MM Compatible With Cisco
850nm 300m SC GBIC Transceiver Module 10G X2 SR MM Compatible With Cisco
Specifications
Brand Name :
Linkopto , or OEM
Model Number :
EX285X-4SCD03
Certification :
CE, FCC, ROHS, TUV, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Get latest price
Payment Terms :
T/T, WU, PayPal, Moneygram, L/C
Supply Ability :
20,000pcs per week
Delivery Time :
1~3 working days
Packaging Details :
10pcs/ plastic tray or individual
Product Name :
10G X2 Transceiver
Model Name :
EX285X-4SCD03
Wavelength :
850nm
Data Rate :
10Gbps
Transmission Distance :
300m
Connector Type :
Duplex SC
DDM :
with
Working Environment :
Commercial 0~70℃
Compatibility :
Cisco, HP, H3C, Alcatel-Lucent, MikroTik, Juniper, Huawei, ZTE, Zyxel, etc
Description

X2-10G-SR Optional X2 Converter to SFP10G SR

GBIC Transceiver 10G X2 SR MM 850nm 300m SC Compatible with Cisco

Features

Ø X2 MSA Compliant

Ø Support of IEEE802.3ae up to 300m (OM3 MMF)

Ø Power Consumption 1.8W (typ.)

Ø Vertical Cavity Surface Emitting Laser at 850nm (VCSEL)

Ø Adaptable Power Supply (APS:+1.2V)

Ø SC duplex connector

Ø Hot pluggable 70-pin connector with XAUI electrical interface

Ø Management and control via MDIO 2-wire interface

Ø Compatible with RoHS

Ø Temperature Range 0 to 70°C

Applications

Ø 10GE Ethernet switches and routers

Ø 10GE Core-routers

Ø 10GE Storage

Ø Other 10Gbps Ethernet Transmission System

Description

X2 10G SR 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 300m Transmission with a vertical cavity surface emitting laser (VCSEL). Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XENPAK MSA 3.0.

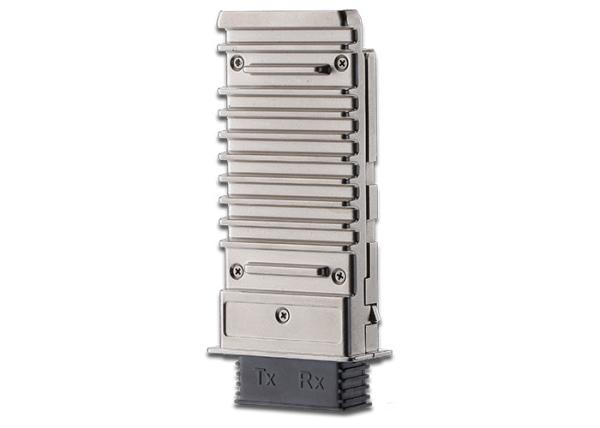

Mechanical Dimensions:

850nm 300m SC GBIC Transceiver Module 10G X2 SR MM Compatible With Cisco850nm 300m SC GBIC Transceiver Module 10G X2 SR MM Compatible With Cisco850nm 300m SC GBIC Transceiver Module 10G X2 SR MM Compatible With Cisco

Related Products List

Item No. Description
SFP-BX-U-3 1.25G Tx1310nm/Rx1550nm 3km DOM BiDi SFP LC
SFP-BX-D-3 1.25G Tx1550nm/Rx1310nm 3km DOM BiDi SFP LC
SFP-2GBX-U-S20 2.5G Tx1310nm/Rx1550nm 20km DOM BiDi SFP SC
SFP-2GBX-D-S20 2.5G Tx1550nm/Rx1310nm 20km DOM BiDi SFP SC
SFP-B10G27-40 BIDI SFP+40km, TX1270nm RX 1330 10G LC
SFP-B10G33-40 BIDI SFP+40km, TX1330nm RX1270 10G -LC
CW-SFP10G-ZR47 Duplex LC 10G 1470nm 80km CWDM SFP+,
CW-SFP10G-ZR61 Duplex LC 10G 1610nm 80km CWDM SFP+,
DW-SFP10G-ZR57 Duplex LC 10G C57 1531.90nm 80km DWDM SFP+,
DW-SFP10G-ZR58 Duplex LC 10G C58 1531.12nm 80km DWDM SFP+,
SFP-10G-SR Multimode Dual LC 10G 850nm 300m SR SFP+
XFP-10G-LR Dual LC 10G 1310nm 20km LR XFP+
SFP-10G-ER Dual LC 10G 1550nm 40km ER SFP+
SFP-10G-ZR Dual LC 10G 1550nm 80km ZR SFP+
SFP-10G-ZR100 Dual LC 10G 1550nm 100km ZR SFP+
Compatible SFP/SFP+ Compatible Cisco ASR 1001-X 1002-X
D-Link, Zyxel XGS-2210-28 and zyxel XGS-4600-32
EPON OLT PX20+ 1.25G/1.25G Tx1490nm/Rx1310nm EPON OLT SFP PX20+
Compatible Chinese OLT
