Mini Cisco Fiber Gbic Module 10G X2 Transceiver Pluggable Low Power Dissipation
Mini Cisco Fiber Gbic Module 10G X2 Transceiver Pluggable Low Power Dissipation
Mini Cisco Fiber Gbic Module 10G X2 Transceiver Pluggable Low Power Dissipation
Mini Cisco Fiber Gbic Module 10G X2 Transceiver Pluggable Low Power Dissipation
Specifications
Brand Name :
Linkopto , or OEM
Model Number :
EX2CxxX-3SCD40
Certification :
CE, FCC, ROHS, TUV, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Get latest price
Payment Terms :
T/T, WU, PayPal, Moneygram, L/C
Supply Ability :
20,000pcs per week
Delivery Time :
1~3 working days
Packaging Details :
10pcs/ plastic tray or individual
Product Name :
10G X2 Transceiver
Model Name :
EX2CxxX-3SCD40
Wavelength :
CWDM 1470~1610nm
Data Rate :
10G
Transmission Distance :
40km
Connector Type :
SC
DDM :
with
Working Environment :
Commercial 0~70℃
Compatibility :
Cisco, HP, H3C, Alcatel-Lucent, MikroTik, Juniper, Huawei, ZTE, Zyxel, etc
Description

PN: EX2CxxX-3SCD40

GBIC Transceiver 10G X2 CWDM 1470~1610nm 40km SC Compatible with Cisco

Features

Ø XAUI Electrical Interface: 4 Lanes @ 3.125Gbit/s

Ø Cooled CWDM EML laser
Ø Hot Z-Pluggable
Ø SC-Duplex Optical Receptacle
Ø MDIO, DOM Support
Ø Pin Photo-detector
Ø Compliant to X2 MSA 3.0
Ø Power dissipation < 4W
Ø Mechanical Footprint: 4.76” L x 1.42” W x 0.46” H
Ø Compliant to IEEE 802.3ae 10GBASE-ER Application

Ø Case operating temperature: 0 to 70 °C

Applications

Ø IEEE 802.3ae as 10GBASE-ER

Ø X2 MSA Release3.0

Description

0Gb/s X2 transceiver module EX2CXX92-3SCD40 is a hot pluggable in the Z-direction module that is usable in typical router line card applications, Storage, IP network and LAN and compliant to X2 MSA. The EX2CXX92-3SCD40 is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver, XAUI interface, Mux and De-mux with clock and data recovery (CDR).This version of ETU-LINK Inc. transceiver line uses an cooled CWDM EML Laser Diode to achieve 40km over standard single mode fiber as 10GBASE-ER of the IEEE 802.3ae.

Mini Cisco Fiber Gbic Module 10G X2 Transceiver Pluggable Low Power Dissipation

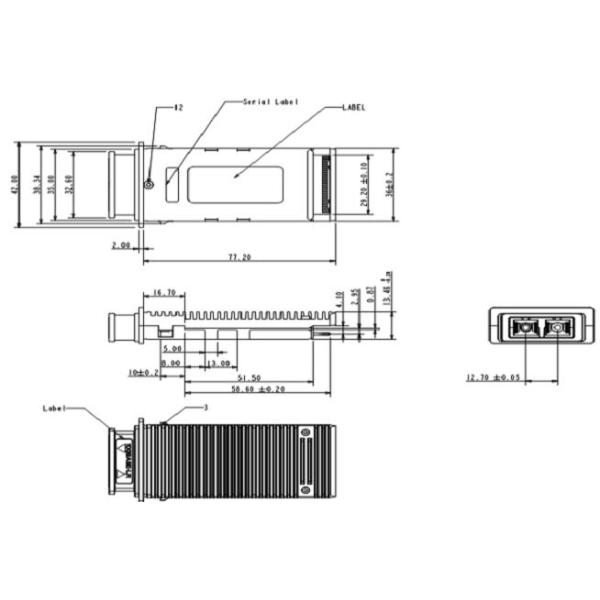

Mechanical Dimensions:

Mini Cisco Fiber Gbic Module 10G X2 Transceiver Pluggable Low Power Dissipation

Quality Control

Mini Cisco Fiber Gbic Module 10G X2 Transceiver Pluggable Low Power DissipationMini Cisco Fiber Gbic Module 10G X2 Transceiver Pluggable Low Power Dissipation

ETU Package

Mini Cisco Fiber Gbic Module 10G X2 Transceiver Pluggable Low Power Dissipation

Related Products List

Item No. Description
SFP-BX-U-3 1.25G Tx1310nm/Rx1550nm 3km DOM BiDi SFP LC
SFP-BX-D-3 1.25G Tx1550nm/Rx1310nm 3km DOM BiDi SFP LC
SFP-2GBX-U-S20 2.5G Tx1310nm/Rx1550nm 20km DOM BiDi SFP SC
SFP-2GBX-D-S20 2.5G Tx1550nm/Rx1310nm 20km DOM BiDi SFP SC
SFP-B10G27-40 BIDI SFP+40km, TX1270nm RX 1330 10G LC
SFP-B10G33-40 BIDI SFP+40km, TX1330nm RX1270 10G -LC
CW-SFP10G-ZR47 Duplex LC 10G 1470nm 80km CWDM SFP+,
CW-SFP10G-ZR61 Duplex LC 10G 1610nm 80km CWDM SFP+,
DW-SFP10G-ZR57 Duplex LC 10G C57 1531.90nm 80km DWDM SFP+,
DW-SFP10G-ZR58 Duplex LC 10G C58 1531.12nm 80km DWDM SFP+,
SFP-10G-SR Multimode Dual LC 10G 850nm 300m SR SFP+
XFP-10G-LR Dual LC 10G 1310nm 20km LR XFP+
SFP-10G-ER Dual LC 10G 1550nm 40km ER SFP+
SFP-10G-ZR Dual LC 10G 1550nm 80km ZR SFP+
SFP-10G-ZR100 Dual LC 10G 1550nm 100km ZR SFP+
Compatible SFP/SFP+ Compatible Cisco ASR 1001-X 1002-X
D-Link, Zyxel XGS-2210-28 and zyxel XGS-4600-32
EPON OLT PX20+ 1.25G/1.25G Tx1490nm/Rx1310nm EPON OLT SFP PX20+
Compatible Chinese OLT
