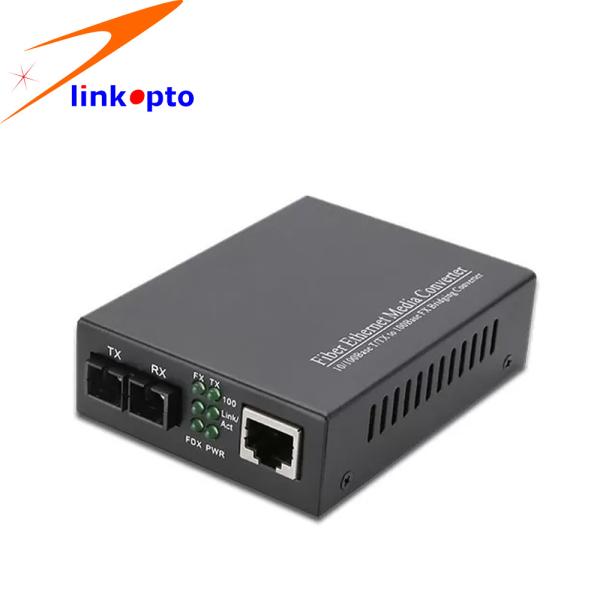

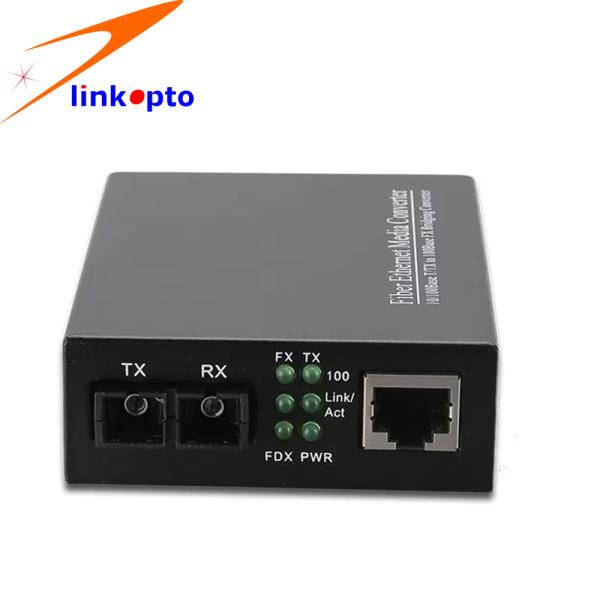

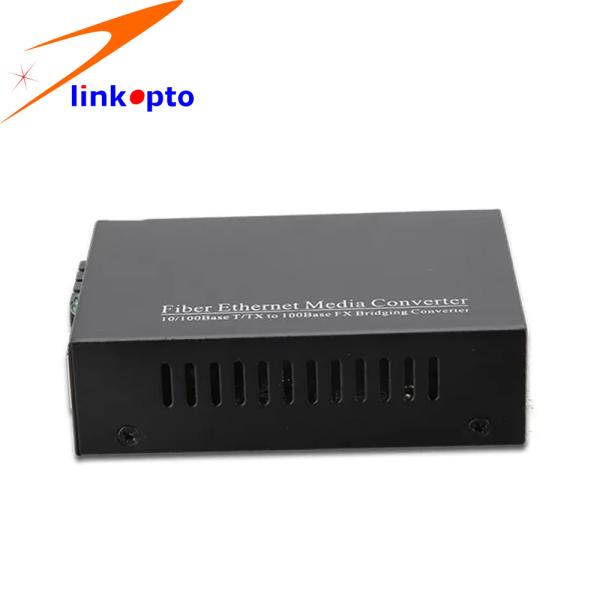

Cyber Bars MM SFP Media Converter 10 / 100 / 1000M Dual Fiber 1310nm Wavelength
Cyber Bars MM SFP Media Converter 10 / 100 / 1000M Dual Fiber 1310nm Wavelength
Cyber Bars MM SFP Media Converter 10 / 100 / 1000M Dual Fiber 1310nm Wavelength
Cyber Bars MM SFP Media Converter 10 / 100 / 1000M Dual Fiber 1310nm Wavelength
Cyber Bars MM SFP Media Converter 10 / 100 / 1000M Dual Fiber 1310nm Wavelength
Cyber Bars MM SFP Media Converter 10 / 100 / 1000M Dual Fiber 1310nm Wavelength
Cyber Bars MM SFP Media Converter 10 / 100 / 1000M Dual Fiber 1310nm Wavelength
Cyber Bars MM SFP Media Converter 10 / 100 / 1000M Dual Fiber 1310nm Wavelength
Specifications
Brand Name :
Linkopto , or OEM
Model Number :
Li-1100-M2
Certification :
CE, FCC, ROHS, TUV, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Get latest price
Payment Terms :
T/T, WU, PayPal, Moneygram, L/C
Supply Ability :
20,000pcs per week
Delivery Time :
3-7 working days
Packaging Details :
1pc/carton box
Product Name :
Media converter
Model Name :
Li-1100-S20
UTP Datarate :
10/100/1000M
Transmission Distance :
20km
Connector Type :
SC
Wavelength :
1310nm
UTP Port :
1 port RJ45
Working Environment :
Commercial 0~70℃
Description

PN: EM-1100-M2

Media Converter 10/100/1000M Dual fiber 1310nm MM Media Converter 2km SC

Description

The Linkopto EM-1100 Series of Ethernet media converters with internal power supply are 10/100/1000Mbps auto-sensing and utilize fiber optics to extend the physical distance range of typical Ethernet links (100m) to 1Km max. on MMF and 100Km max. on SMF.

Features

Ø 1600byte super data packet transmission

Ø Full duplex-flow control, Half duplex-back pressure

Ø Link fault pass through (LFPT)

Ø 10/100/1000Mbps autosensing, auto-MDI/MDIX

Ø Full- positioned LEDs to indicate power and network status

Applications

Ø Telecommunication Networks

Ø Schools, Offices, Cyber bars

Technical Index:

Parameter Specifications
Access mode 10/100/1000Mbps
Standard IEEE802.1 10Base-T, IEEE802.3u 1000Base-TX, IEEE802.3 1000Base-FX
Wavelength 1550nm
Distance

Category-5 twisted pair: 100m

Fiber:multi-mode 50/125,62.5/125μm(the max distance up to 550m)

Fiber:Single -mode 8/125,8.7/125,9/125,10/125μm(the max distance up to 20-80km)
Port

One RJ45 port:

For connecting STP/UTP category-5 twisted pairs

One optical port:

Multi-mode, dual fiber: SC (50, 62.5/125μm)

Single mode, dual fiber: SC (9/125μm)
Conversion means Media conversion
MAC address table 1K
Buffer space 256kbit
Flow control

Full duplex: flow control;

Half duplex: back pressure
Delay Store-and-forward: 9.6μs; cut-through: 0.9μs
BER <19-9
MTBF 100,000 hours
LED indicator PWR (power supply), FX LINK (optical link action), TP LINK1000 (twisted pair link1000M), TP LINK100 (twisted pair link 100M), TP ACT (twisted pair packet forwarding)
Power supply External 5VDC input
Power consumption 4W
Operating temperature -10~55ºC
Operating humidity 5%~90%
Maintaining temperature -40~70ºC
Maintaining humidity 5% ~ 90% non-condensing
Dimensions

26mmx 70mm x 95mm

Quality Control

Cyber Bars MM SFP Media Converter 10 / 100 / 1000M Dual Fiber 1310nm WavelengthCyber Bars MM SFP Media Converter 10 / 100 / 1000M Dual Fiber 1310nm WavelengthCyber Bars MM SFP Media Converter 10 / 100 / 1000M Dual Fiber 1310nm Wavelength

LP-MC35B20U LPT-MC35B20U Fiber Media Converter SMF, 1310nm/1550nm 20km SC Fixed, 1000Base-BX SFP to 10/100/1000Base-T RJ45, AC 100V~240V
LP-MC53B20D LPT-MC53B20D Fiber Media Converter SMF, 1550nm/1310nm 20km SC Fixed, 1000Base-BX SFP to 10/100/1000Base-T RJ45, AC 100V~240V
