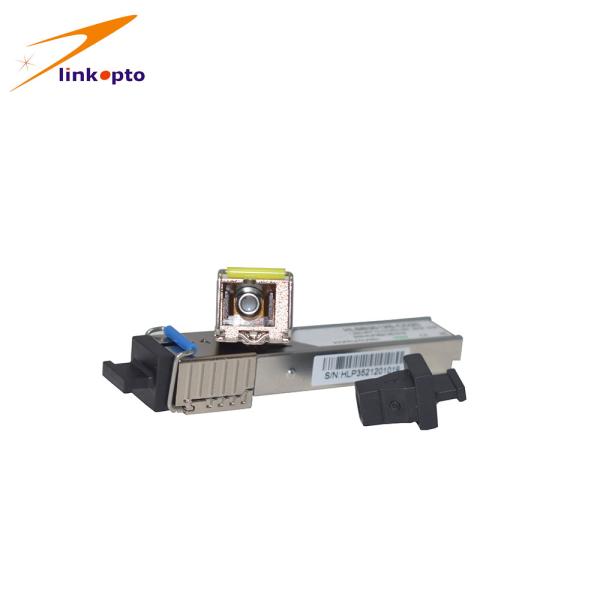

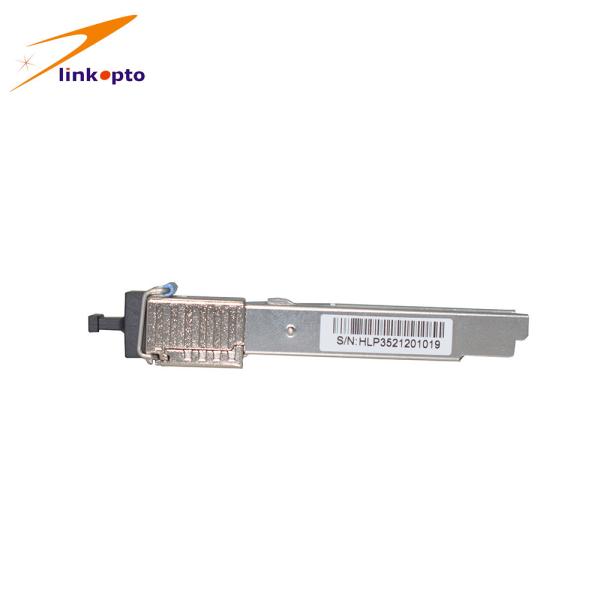

1.25G BIDI SFP Modules 40km Simplex SC Connectors For Cisco CE Certification
1.25G BIDI SFP Modules 40km Simplex SC Connectors For Cisco CE Certification
1.25G BIDI SFP Modules 40km Simplex SC Connectors For Cisco CE Certification
1.25G BIDI SFP Modules 40km Simplex SC Connectors For Cisco CE Certification
Specifications
Brand Name :
Linkopto , or OEM
Model Number :
LPSB3512-3SCD40
Certification :
CE, FCC, ROHS, TUV, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Get latest price
Payment Terms :
T/T, WU, PayPal, Moneygram, L/C
Supply Ability :
20,000pcs per week
Delivery Time :
1~3 working days
Packaging Details :
10pcs/ plastic tray or individual
Product Name :
BIDI SFP Transceiver
Model Name :
LPSB3512-3SCD40
Wavelength :
Tx1310/Rx1550nm
Data Rate :
1.25G
Transmission Distance :
40km
Connector Type :
Simplex SC
DDM :
Yes
Working Environment :
Commercial 0~70℃
Compatibility :
Cisco, HP, H3C, Alcatel-Lucent, MikroTik, Juniper, Huawei, ZTE, Zyxel, etc
Description

1.25G SFP BIDI Tx1310/Rx1550nm 40km Simplex SC Connectors for Cisco

Features

Ø Dual data-rate of 1.25Gbps/1.063Gbps operation

Ø 1310nm DFB laser and PIN photodetector for 40km transmission

Ø Compliant with SFP MSA and SFF-8472 with simplex SC receptacle

Ø Digital Diagnostic Monitoring:Internal Calibration or External Calibration

Ø Compatible with SONET OC-24-LR-1

Ø Compatible with RoHS

Ø +3.3V single power supply

Ø Operating case temperature range:

0 °C to +70 °C (Commercial)

-40 °C to +85 °C (Industrial)

Applications

Ø Gigabit Ethernet

Ø Fiber Channel

Ø Switch to Switch interface

Ø Switched backplane applications

Ø Router/Server interface

Ø Other optical transmission systems

Description

Linkopto SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of

1.25Gbps/1.0625Gbps and 40km transmission distance with SMF.

linkopto transceiver consists of three sections: DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

1.25G BIDI SFP Modules 40km Simplex SC Connectors For Cisco CE Certification

Quality Control

1.25G BIDI SFP Modules 40km Simplex SC Connectors For Cisco CE Certification1.25G BIDI SFP Modules 40km Simplex SC Connectors For Cisco CE Certification

Package

1.25G BIDI SFP Modules 40km Simplex SC Connectors For Cisco CE Certification

Related products list

Item No. Description
SFP-BX-U-10 1.25G Tx1310nm/Rx1550nm 10km DOM BiDi SFP LC
SFP-BX-D-10 1.25G Tx1550nm/Rx1310nm 10km DOM BiDi SFP LC
SFP-2GBX-U-S20 2.5G Tx1310nm/Rx1550nm 20km DOM BiDi SFP SC
SFP-2GBX-D-S20 2.5G Tx1550nm/Rx1310nm 20km DOM BiDi SFP SC
SFP-B10G27-40 BIDI SFP+40km, TX1270nm RX 1330 10G LC
SFP-B10G33-40 BIDI SFP+40km, TX1330nm RX1270 10G -LC
CW-SFP10G-ZR47 Duplex LC 10G 1470nm 80km CWDM SFP+,
CW-SFP10G-ZR61 Duplex LC 10G 1610nm 80km CWDM SFP+,
DW-SFP10G-ZR57 Duplex LC 10G C57 1531.90nm 80km DWDM SFP+,
DW-SFP10G-ZR58 Duplex LC 10G C58 1531.12nm 80km DWDM SFP+,
SFP-10G-SR Multimode Dual LC 10G 850nm 300m SR SFP+
XFP-10G-LR Dual LC 10G 1310nm 20km LR XFP+
SFP-10G-ER Dual LC 10G 1550nm 40km ER SFP+
SFP-10G-ZR Dual LC 10G 1550nm 80km ZR SFP+
SFP-10G-ZR100 Dual LC 10G 1550nm 100km ZR SFP+
Compatible SFP/SFP+ Compatible Cisco ASR 1001-X 1002-X
D-Link, Zyxel XGS-2210-28 and zyxel XGS-4600-32
EPON OLT PX20+ 1.25G/1.25G Tx1490nm/Rx1310nm EPON OLT SFP PX20+
Compatible Chinese OLT
