SC TX1490nm RX1310nm Epon Fiber Optic Module 1.25G Gigabit
SC TX1490nm RX1310nm Epon Fiber Optic Module 1.25G Gigabit
Specifications
Brand Name :
Linkopto , or OEM
Model Number :
Epon OLT PX20++ 1.25G 20KM TX1490nm/RX1310nm
Certification :
CE, FCC, ROHS, TUV, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Get latest price
Payment Terms :
T/T, WU, PayPal, Moneygram, L/C
Supply Ability :
20,000pcs per week
Delivery Time :
3~7 working days
Packaging Details :
10pcs/ plastic tray or individual
Model Name :
Epon OLT PX20++ 1.25G 20KM TX1490nm/RX1310nm
Wavelength :
TX1490nm/RX1310nm
Data Rate :
1.25G
Transmission Distance :
20KM
Connector Type :
SC
DDM :
with
Working Environment :
Commercial 0~70℃
Compatibility :
Cisco, HP, H3C, Alcatel-Lucent, MikroTik, Juniper, Huawei, ZTE, Zyxel, etc
Fiber Connector :
SC
No. of Fiber :
2
Description

EPON OLT PX20++ + Tx7 dB , Enhanced, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC

Features:

Single Fiber Transceiver with single mode SC connector

1310nm burst-mode 1.25Gbps transmitter with FP laser

1490nm continuous-mode 1.25Gbps receiver with PIN-TIA

Single 3.3V power supply

Reset burst-mode receiver design

Burst mode signal detect output which is LVTTL compatible.

Burst mode received signal strength indication (RSSI) output

20Km Reach 28dB link budget

Complies with ITU-T G984.2 Class B+

Digital diagnostic interface compliant with SFF-8472 Rev 9.4 ,

Complies with RoHS directive (2002/95/EC)

Applications:

Gigabit Ethernet Passive Optical Network (GEPON) ONUSC TX1490nm RX1310nm Epon Fiber Optic Module 1.25G Gigabit

PON Series
Type Description
EPON OLT PX20+ EPON OLT PX20+, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature 0ºC ~ +70ºC
EPON OLT PX20++ EPON OLT PX20++ Enhanced, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature 7DB
GPON OLT B+ GPON OLT B+, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature
GPON OLT C+ GPON OLT C+, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature
GPON OLT C++ GPON OLT C++, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP, BIDI SC/UPC Receptacle, Commercial Temperature
GPON OLT 7dBm GPON OLT C++ Enhanced, 20km, TX 1490nm 2.488Gbps, RX 1310nm 1.244Gbps, SFP+, BIDI SC/UPC Receptacle, Commercial Temperature
GPON ONU SFP GPON ONU SFP, G.984.5, 20km, Tx 1310nm 1.244G, Rx 1490nm 2.488G, SFP form-factor, SC/UPC receptacle connector, Industrial temperature, BEN low active
EPON ONU SFP EPON ONU SFP, G.984.2, 20km, Tx 1310nm 1.25G, Rx 1490nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature
GPON ONU STICKER B+ SFP ONU SFP MAC/ Tx1310/Rx1490 DFB+APD 1.25G/2.5G

Quality Control

SC TX1490nm RX1310nm Epon Fiber Optic Module 1.25G Gigabit

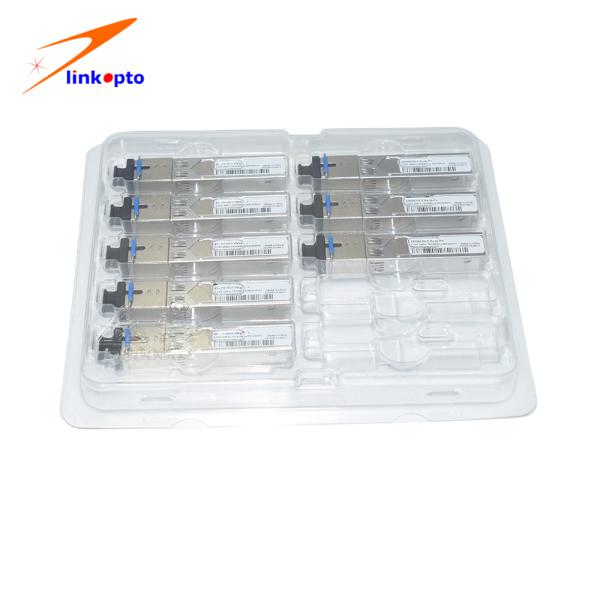

LINKOPTO Package

SC TX1490nm RX1310nm Epon Fiber Optic Module 1.25G Gigabit
