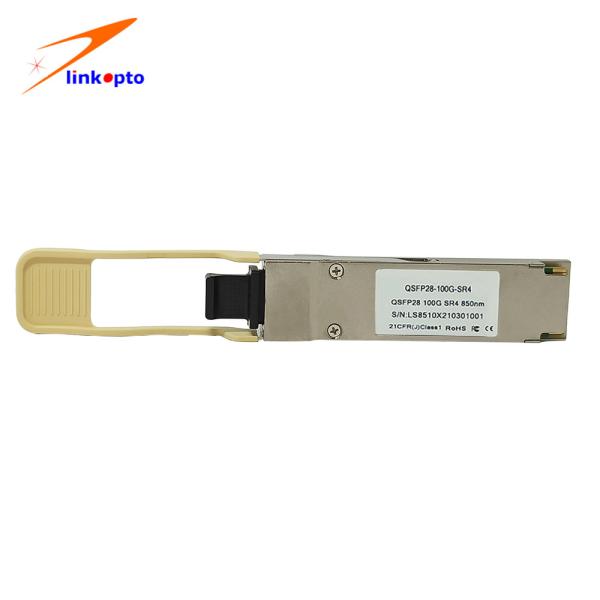

PN: QSFP28 100G SR4 850nm

QSFP28 Module Optical QSFP28 100G SR4 850nm

Features

4 independent full-duplex channels
Up to 25Gb/s data rate per channel
QSFP28 MSA compliant
Compliant to IEEE 802.3bm 100GBASE-SR4
Up to 100m OM4 MMF transmission
Operating case temperature: 0 to 70oC
Single 3.3V power supply
Maximum power consumption 2.5W
MTP/MPO optical connector
RoHS-6 compliant

FAQ

Q:Do you sell second-hand products?

A:No.All our products are brand new,we never use second-hand components.

Q:What payment terms do you accept?

A:T/T,Paypal,Western Union are acceptable.

Q:What are the shipping ways can you offer?

A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

Q:Do your products come with warranty?

A:Yes,We provide 3 years warranty for all our products from the date of shipment.

Q:What devices can your products compatible with?

A:Our products are compatible with Mainstream switches.

Q:How to place an order?

A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.

Applications

Ø 40GBASE-SR4 Ethernet Links

Ø Infiniband QDR and DDR interconnects

Ø Client-side 40G Telecom connections

Description

This product is a 40Gb/s transceiver module designed for optical communication applications compliant

to 40GBASE-SR4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s

electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel

for 40Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 40Gb/s

optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of

electrical data.

The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as

members of the LAN WDM wavelength grid defined in IEEE 802.3ba

The product is designed with form factor, optical/electrical connection and digital diagnostic interface

according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest

external operating conditions including temperature, humidity and EMI interference.
