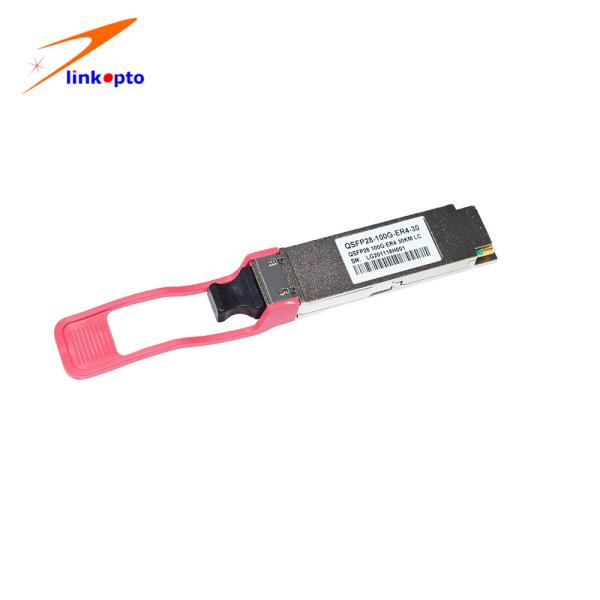

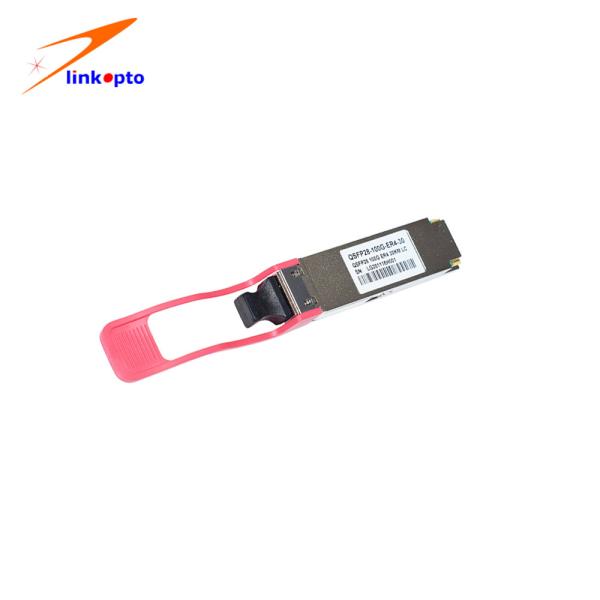

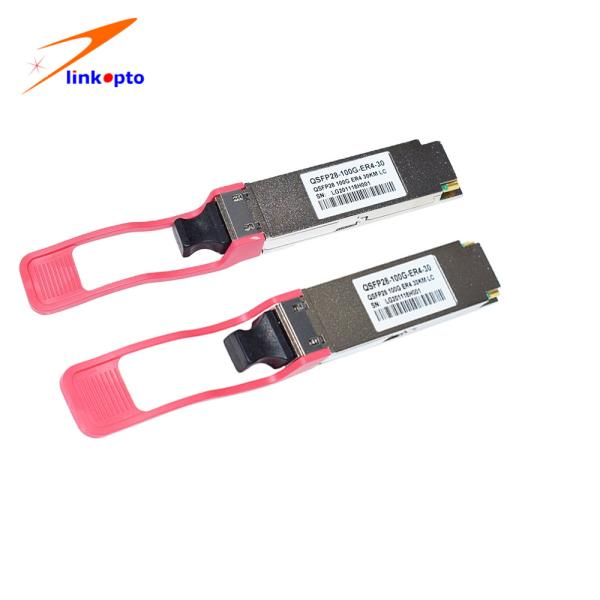

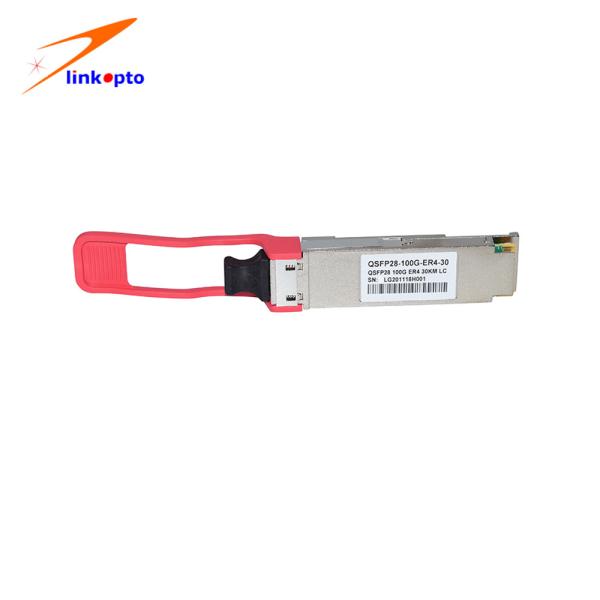

30KM QSFP28 ER4 Lite 100G Optical Transceiver Hot Pluggable Dual LC LAN WDM
30KM QSFP28 ER4 Lite 100G Optical Transceiver Hot Pluggable Dual LC LAN WDM
30KM QSFP28 ER4 Lite 100G Optical Transceiver Hot Pluggable Dual LC LAN WDM
30KM QSFP28 ER4 Lite 100G Optical Transceiver Hot Pluggable Dual LC LAN WDM
30KM QSFP28 ER4 Lite 100G Optical Transceiver Hot Pluggable Dual LC LAN WDM
30KM QSFP28 ER4 Lite 100G Optical Transceiver Hot Pluggable Dual LC LAN WDM
30KM QSFP28 ER4 Lite 100G Optical Transceiver Hot Pluggable Dual LC LAN WDM
30KM QSFP28 ER4 Lite 100G Optical Transceiver Hot Pluggable Dual LC LAN WDM
30KM QSFP28 ER4 Lite 100G Optical Transceiver Hot Pluggable Dual LC LAN WDM
30KM QSFP28 ER4 Lite 100G Optical Transceiver Hot Pluggable Dual LC LAN WDM
Specifications
Brand Name :
Linkopto
Model Number :
QSFP28-100G-ER4Lit
Certification :
CE RoHS
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
USD1450pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
6000pcs/days
Delivery Time :
5-8 work days
Packaging Details :
neutral packing, retail packing, plastic packing,carton box, etc
Wavelength :
4LAN WDM
Data Rate :
100G
Connector :
LC
Application :
Telecommunication
No. of Fiber :
4
Distance :
30KM
Warranty :
3 years
DDM :
YES
Description

30KM 100G QSFP28 ER4 Lite Optical Transceiver Hot Pluggable Dual LC LAN WDM, APD

QSFP28-100G-ER4Lit

This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-ER4 Lite standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.up to 112Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals , up to 112Gb/s optical input and then converts them to 4 output channels of electrical data.

The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM EA-DFB transmitters and high sensitivity APD receivers provide superior performance for 100Gigabit Ethernet applications up to 40km links with FEC.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Features:

Up to 30km reach for G.652 SMF without FEC
Up to 40km reach for G.652 SMF with FEC
LC duplex connector
Operating case temperature: 0 to 70°C
Maximum power consumption 4.5W

Applications:

  • Telecommunications
  • 100GBASE-ER4 Ethernet Links
  • Datacenter and Enterprise networking
  • Cellular infrastructure
  • Access routers and switches
  • Servers
  • Switches
  • Storage
  • ToR Rack

OEM and ODM:

OEM/ODM order is available

Shipment:

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.

Guarantee:
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What we supply:

Provide The Easiest And Fastest Network Fiber Communication, Data Center etc. Solutions.

SFP+ DAC, SFP+ Transceivers,QSFP+ DAC, QSFP+ AOC, QSFP+Transceivers and optical networks. CWDM/DWDM Mux/Demux Solutions.

Best Price,Best Quality,Fast Delivery!30KM QSFP28 ER4 Lite 100G Optical Transceiver Hot Pluggable Dual LC LAN WDM30KM QSFP28 ER4 Lite 100G Optical Transceiver Hot Pluggable Dual LC LAN WDM30KM QSFP28 ER4 Lite 100G Optical Transceiver Hot Pluggable Dual LC LAN WDM30KM QSFP28 ER4 Lite 100G Optical Transceiver Hot Pluggable Dual LC LAN WDM
