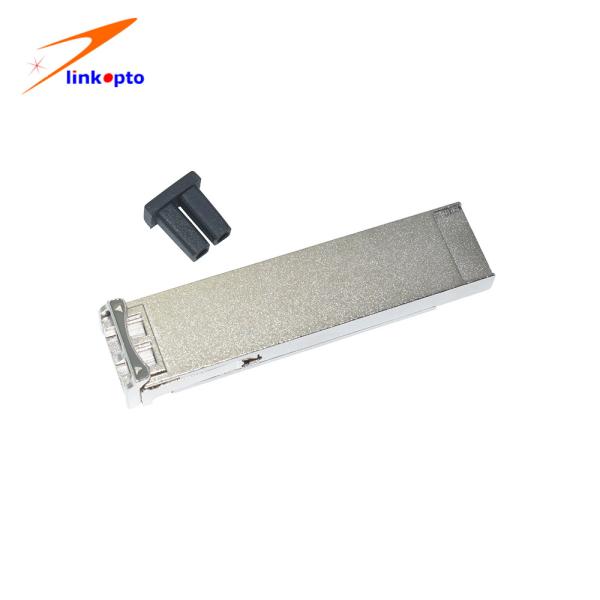

FCC 40KM Duplex LC DWDM C29 10G XFP Module With DDM
FCC 40KM Duplex LC DWDM C29 10G XFP Module With DDM
FCC 40KM Duplex LC DWDM C29 10G XFP Module With DDM
FCC 40KM Duplex LC DWDM C29 10G XFP Module With DDM
FCC 40KM Duplex LC DWDM C29 10G XFP Module With DDM
FCC 40KM Duplex LC DWDM C29 10G XFP Module With DDM
Specifications
Brand Name :
Linkopto , or OEM
Model Number :
40KM DWDM 10G XFP C29
Certification :
CE, FCC, ROHS, TUV, ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Get latest price
Payment Terms :
T/T, WU, PayPal, Moneygram, L/C
Supply Ability :
20,000pcs per week
Delivery Time :
3-7 working days
Packaging Details :
10pcs/ plastic tray or individual
Product Name :
10G XFP Transceiver / dwdm xfp transceiver
Model Name :
40KM DWDM 10G XFP C29
Wavelength :
DWDM C29
Data Rate :
10G
Transmission Distance :
40km
Connector Type :
Duplex LC
DDM :
with
Working Environment :
Commercial 0~70℃
Compatibility :
Cisco, HP, H3C, Alcatel-Lucent, MikroTik, Juniper, Huawei, ZTE, Zyxel, etc
Application :
FTTX
Warranty :
3 years
Description

PN: 40KM DWDM 10G XFP C29

10G DWDM XFP Transceiver 10G XFP DWDM C-band ITU-T 1534.64~1561.83nm 40km Duplex LC

Features

Ø Wavelength selectable to C-band ITU-T grid wavelengths

Ø Suitable for use in 100GHz channel spacing DWDM systems

Ø XFP MSA Rev 4.5 Compliant

Ø Data rate from 9.95Gbps to 11.3Gbps

Ø No Reference Clock required

Ø Cooled EML and PIN receiver

Ø link length up to 40km

Ø Low Power Dissipation 3.5W Maximum

Ø XFI and lineside loopback Mode Supported

Ø -5ºC to 70ºC Operating Case Temperature

Ø Diagnostic Performance Monitoring of module temperature,

Ø Supply Voltages, laser bias current, transmit optical power, and receive optical power

Ø RoHS6 compliant (lead free)

Applications

Ø SONET OC-192 & SDH STM 64

Ø 10GBASE ER/EW

Ø 40km 10G Fiber Channel

Ø DWDM Networks

Description

LINKOPTO XDXX92-3LCD40 Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for 10G DWDM SDH, 10GBASE-ER/EW and 10G Fiber- Channel applications.

The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. LINKOPTO DWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
