150pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor
150pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor
150pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor
150pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor
150pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor
150pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor
150pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor
150pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCC02
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
12~15 working days
Packaging Details :
Bulk, Tape
Capacitance :
150pF
Voltage :
24KVDC
Tolerance :
±20%
Operating Temperature :
-25~+85℃
Specification :
TMCC02-151K24KVB
Applications :
high-voltage live display sensors
Package :
Bulk
Description

150pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor

Performance Characteristics
1. Made of SrTiO3 ceramic material.
2. High product life.
3. Low bias characteristics.
4. Low dielectric loss.
5. High withstand voltage.
6. Capacity accuracy 10%

Applications

This series of products are high-voltage capacitors for high-voltage live display sensors, suitable for APG process and vacuum casting process.

Basic Parameters

Ceramic Dielectric Properties
NO.
Ceramic
Dielectric
Operating
temperature
Range(℃)
Insulation
Resistance
( MΩ)
Dissipation
factor
Temperature
characteristics
1
Y5T
-25~+85℃
≥100000
≤0.5%
+22%,-33%

150pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor

Product code
Tolerance
Withstand voltage
(AC:kv/1min)
Partial discharge
(kv﹤10pc)

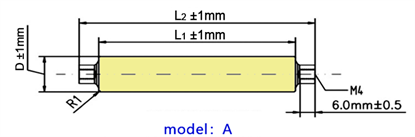

Size By M4 nut(mm)
D
L1
L2
7KV-20PF
±10%
50
8
12
32.5
44.5
7KV-50PF
±10%
50
8
12
30
42
7KV-100PF
±10%
50
8
12
31
43
7KV-220PF
±10%
50
8
15.3
34
46
12KV-150PF
±10%
75
14.4
15.3
50
62
12KV-200PF
±10%
75
14.4
16.5
45
65
24KV-10PF
±10%
95
39.6
14
60
72
24KV-15PF
±10%
95
39.6
14
60
72
24KV-20PF
±10%
95
39.6
14
60
72
24KV-50PF
±10%
95
39.6
14
60
72
24KV-75PF
±10%
95
39.6
14
60
72
24KV-150PF
±10%
95
39.6
16.5
61
80
36KV-16PF
±10%
15.5
70
84
36KV-40PF
±10%
12
78
90

150pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor

150pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

150pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor

Our series of strong products of capacitors and resistors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

Any more details, kindly contact us freely!
