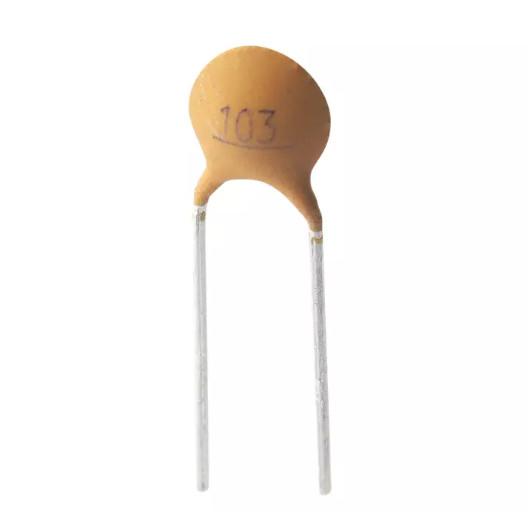

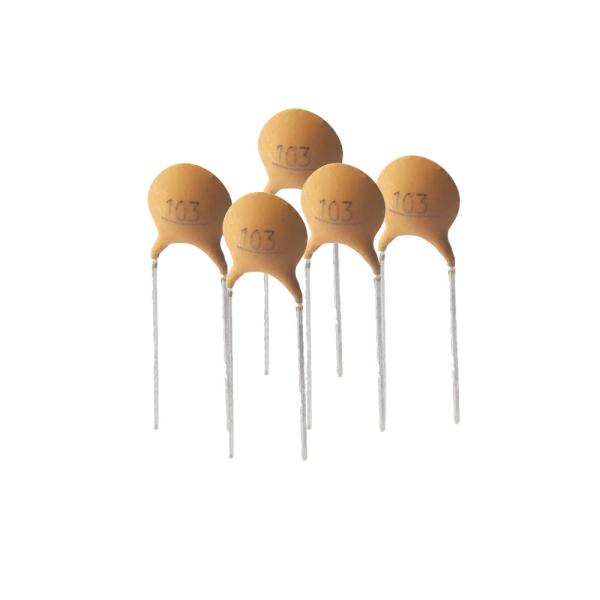

103M50V Low Voltage Dip Ceramic Disc Capacitor For Vibration Frequency Circuit
103M50V Low Voltage Dip Ceramic Disc Capacitor For Vibration Frequency Circuit
103M50V Low Voltage Dip Ceramic Disc Capacitor For Vibration Frequency Circuit
103M50V Low Voltage Dip Ceramic Disc Capacitor For Vibration Frequency Circuit
103M50V Low Voltage Dip Ceramic Disc Capacitor For Vibration Frequency Circuit
103M50V Low Voltage Dip Ceramic Disc Capacitor For Vibration Frequency Circuit
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCC01
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
10000pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
15~20 working days
Packaging Details :
Bulk, Tape
Capacitance :
10nF
Voltage :
50V
Pitch :
5mm
Tolerance :
+/-20%
Description

103M50V Low Voltage Dip Ceramic Disc Capacitor For Vibration Frequency Circuit

Features

Low dissipation factor, high reliability factor

Small volume, low remnant inductance

Many types of temperature characteristics

Standard of Application

GB5971 detailed specification for electronic components fixed ceramic capacitors type TMCC01

Quick View

Brand: ETOPMAY

P/N: TMCC01-103M50VP5B

Capacitance: 10nF

Voltage:50V

Tolerance:±20%(M)

Package QTY:1000pcs /bags

Color: Earthy Yellow

Specification

No Item specification
1 Operating temperature -25 ~ 85 ºC
2 capacitance(Cr)and quality factor
testing condition		 25 ºC ,1Vrms ,1MHZ
(≥1000PF , 1KHZ)
3 Quality factor (Q) Cr < 30pf , Q≥400+20Cr
Cr ≥30pf ,Q≥1000
4 Rated voltage(Ur) 50,100VDC
5 Voltage proof 2.5Ur
6 Insulation resistance (IR) At rated voltage,IR ≥10000MΩ
7 Temperature coefficient COH , SL

Capacitance and Dimension Chart

Rated
voltage
(VDC)		 Dimension(mm) Temperature coefficient group Lead size(mm) Taping style
Diameter
Dmax		 Thickness
Tmax		 COH(NP0) SL(P100-1000) Space
F		 Diameter
d
Nominal capacitance(pf)



50/100		 5.0


3.0		 0.5~56 0.5~220 2.5±0.5
5.0±1.0		 0.5±0.05
0.6±0.06		 F
5.5 62~75 330~390
6.5 82~110 470~560
7.5 120~160 680~820 5.0±1.0
8.5 180~200 1000
10.0 200~300 1200
11.0 330~360
Capacitance toletance ±0.25pf ,±0.5pf,
±5%,±10%

Package
Bulk

103M50V Low Voltage Dip Ceramic Disc Capacitor For Vibration Frequency Circuit

103M50V Low Voltage Dip Ceramic Disc Capacitor For Vibration Frequency Circuit

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

103M50V Low Voltage Dip Ceramic Disc Capacitor For Vibration Frequency Circuit

Our series of strong products of capacitors and resistors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

Any more details, kindly contact us freely!
