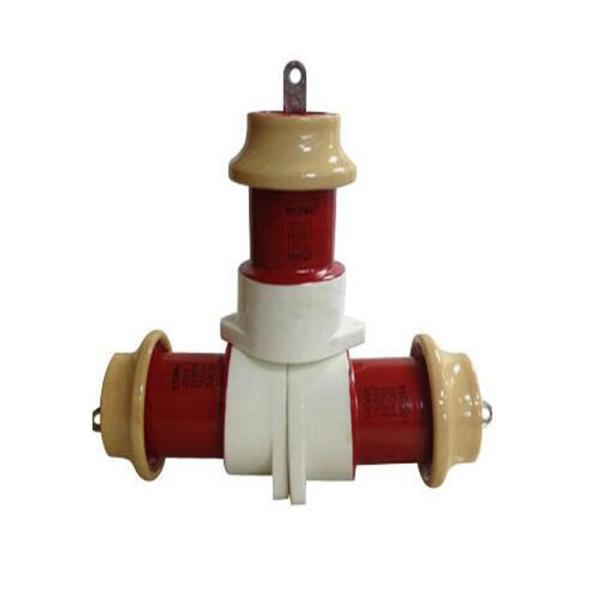

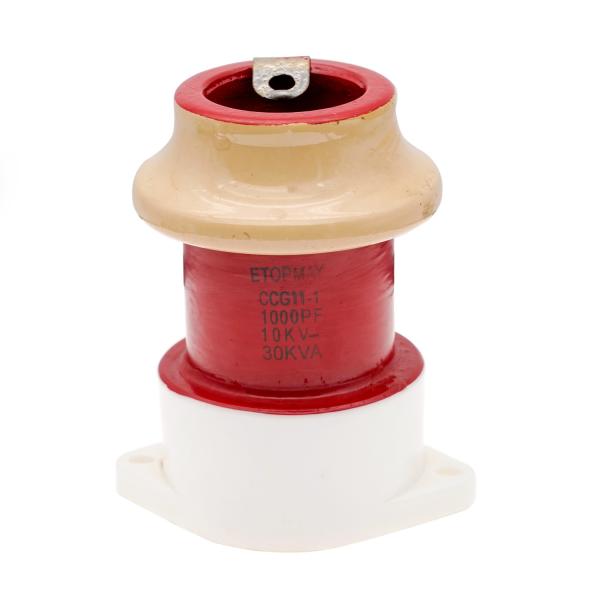

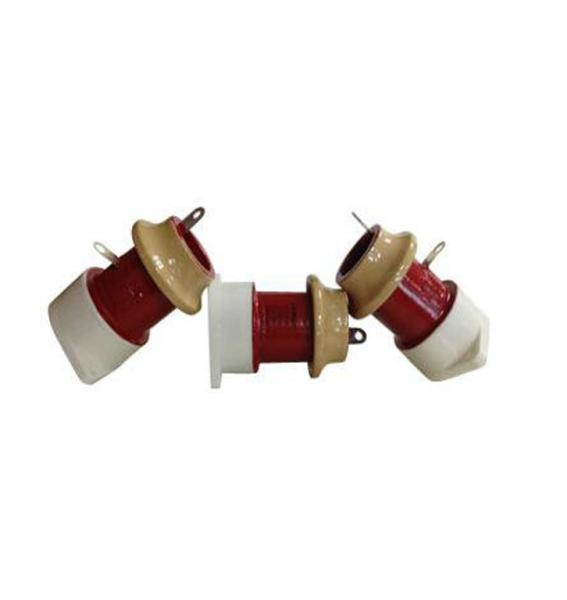

CCG11-1 bottle shaped High Power Ceramic Capacitor 1000pF 10KV

CCG11 is one of high voltage and high power ceramic capacitior. It has the characteristics of high voltage resistance, low dielectric loss, high reactive power, good high frequency performance, long service life and easy installation. This product is mainly used in high frequency electric furnace, plastic thermal bonding machine and radio communication equipment.

Features

High pressure resistance, low loss

Good frequency characteristics, with high stability

Insulation resistance, long use time

Applications

Radio Communication Equipment

Plastic thermal bonding machine

High Power , High Frequency electrical curcuits

Technical Parameters:

1. Typical dissipation factor: ≤0.0008；
2. Volume resistivity: ≥10000MΩ；
3. Permissible variation of rated capacitance: K(+/-10%)；
4. Temperature range: -40/+85/04；
5. Rated temperature: +85℃；
6. Maximum relative humidity: 75%;
7. Test voltage: 2 times of rated voltage if the rated voltage≤15KV or 1.5 times of rated voltage if the rated voltage>15KV.

Dimensions
