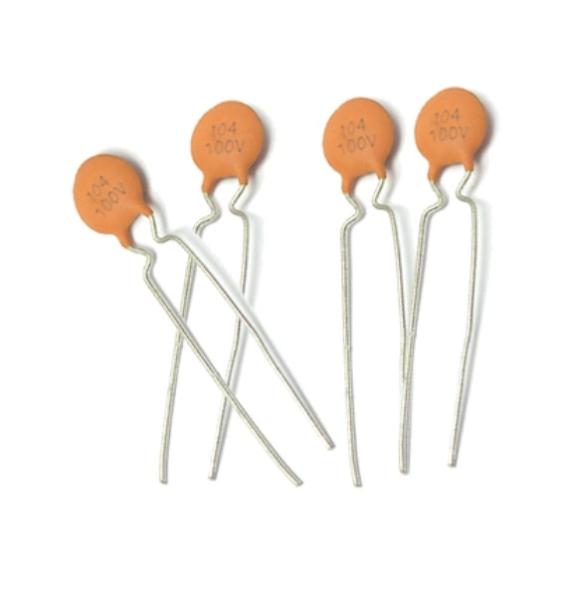

Low Frequency Radial Ceramic Disc Capacitor 100nF 100V P2.54mm
Low Frequency Radial Ceramic Disc Capacitor 100nF 100V P2.54mm
Low Frequency Radial Ceramic Disc Capacitor 100nF 100V P2.54mm
Low Frequency Radial Ceramic Disc Capacitor 100nF 100V P2.54mm
Low Frequency Radial Ceramic Disc Capacitor 100nF 100V P2.54mm
Low Frequency Radial Ceramic Disc Capacitor 100nF 100V P2.54mm
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCC01
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
10000pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
15~20 working days
Packaging Details :
Bulk, Tape
Capacitance :
100nF
Voltage :
100V
Pitch :
2.54mm, 5.08mm
Tolerance :
+80%, -20%
Description

Low Frequency Radial Ceramic Disc Capacitor 100nF 100V P2.54mm

Temperature compensation dics ceramic capacitors have a ceramic that is formulated to provide a predictable linear capacitance change versus temperature .This predictable linear capacitance change allows the temperature compensating disc capacitors to be used in circuits such as tuned circuits .

Features

Low dissipation factor, high reliability factor

Small volume, low remnant inductance

Many types of temperature characteristics

Standard of Application

GB5971 detailed specification for electronic components fixed ceramic capacitors type TMCC01

Specification

No Item specification
1 Operating temperature -25 ~ 85 ºC
2 capacitance(Cr)and quality factor
testing condition		 25 ºC ,1Vrms ,1MHZ
(≥1000PF , 1KHZ)
3 Quality factor (Q) Cr < 30pf , Q≥400+20Cr
Cr ≥30pf ,Q≥1000
4 Rated voltage(Ur) 50,100VDC
5 Voltage proof 2.5Ur
6 Insulation resistance (IR) At rated voltage,IR ≥10000MΩ
7 Temperature coefficient COH , SL

Capacitance and Dimension Chart

Rated
voltage
(VDC)		 Dimension(mm) Temperature coefficient group Lead size(mm) Taping style
Diameter
Dmax		 Thickness
Tmax		 COH(NP0) SL(P100-1000) Space
F		 Diameter
d
Nominal capacitance(pf)



50/100		 5.0


3.0		 0.5~56 0.5~220 2.5±0.5
5.0±1.0		 0.5±0.05
0.6±0.06		 F
5.5 62~75 330~390
6.5 82~110 470~560
7.5 120~160 680~820 5.0±1.0
8.5 180~200 1000
10.0 200~300 1200
11.0 330~360
Capacitance toletance ±0.25pf ,±0.5pf,
±5%,±10%

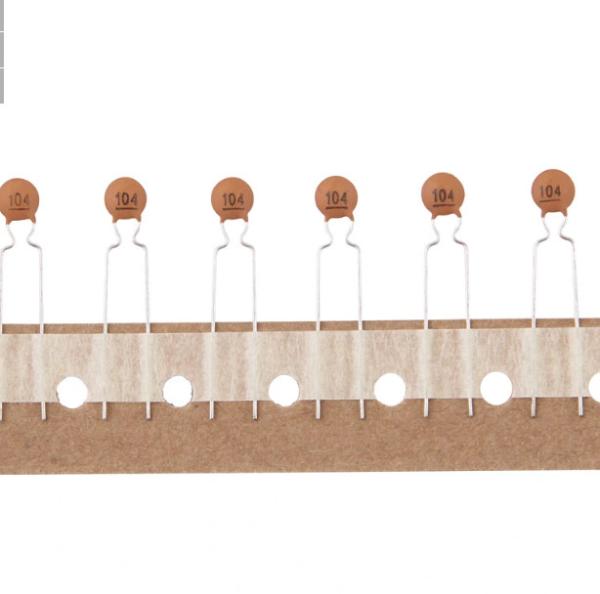

Package
Bulk, Ammo&Tape

Low Frequency Radial Ceramic Disc Capacitor 100nF 100V P2.54mm

Low Frequency Radial Ceramic Disc Capacitor 100nF 100V P2.54mm

Low Frequency Radial Ceramic Disc Capacitor 100nF 100V P2.54mm

Our series of strong products of capacitors and resistors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

Any more details, kindly contact us freely!
