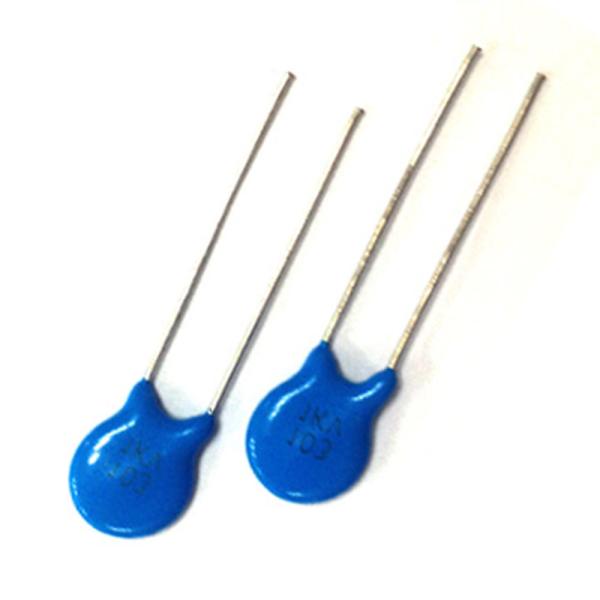

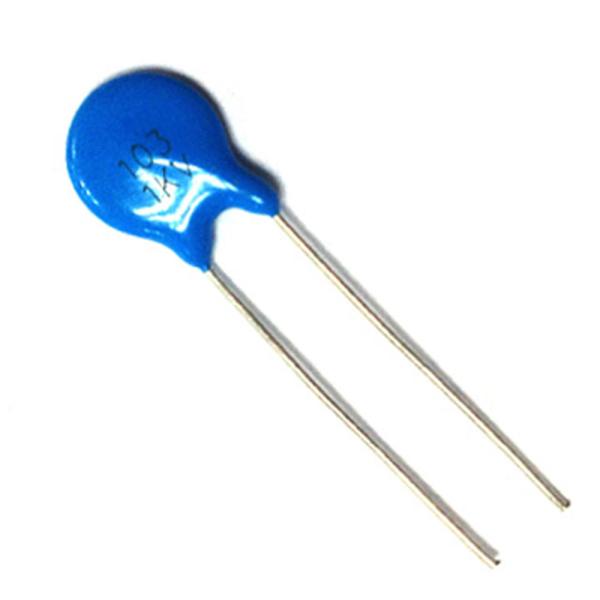

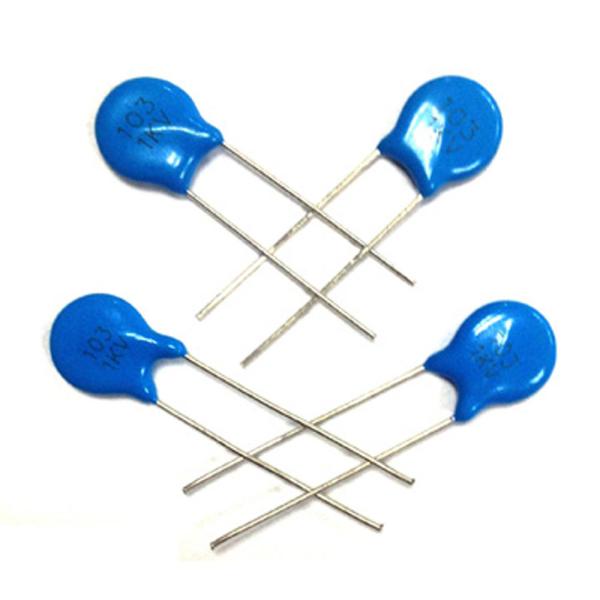

Blue HV 103K1KV Ceramic Disc Capacitor 10nF 1000V 10% Y5V P5mm
Blue HV 103K1KV Ceramic Disc Capacitor 10nF 1000V 10% Y5V P5mm
Blue HV 103K1KV Ceramic Disc Capacitor 10nF 1000V 10% Y5V P5mm
Blue HV 103K1KV Ceramic Disc Capacitor 10nF 1000V 10% Y5V P5mm
Blue HV 103K1KV Ceramic Disc Capacitor 10nF 1000V 10% Y5V P5mm
Blue HV 103K1KV Ceramic Disc Capacitor 10nF 1000V 10% Y5V P5mm
Blue HV 103K1KV Ceramic Disc Capacitor 10nF 1000V 10% Y5V P5mm
Blue HV 103K1KV Ceramic Disc Capacitor 10nF 1000V 10% Y5V P5mm
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCC02
Certification :
SGS( RoHS)
Place of Origin :
China
MOQ :
10000pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
12~15 working days
Packaging Details :
Bulk, Tape
Capacitance :
10nF
Rated Voltage :
1000V
Tolerance :
+-20%
Material :
Y5V
Pitch :
5mm
Diameter :
10mm
Description

Blue HV 103K1KV Ceramic Disc Capacitor 10nF 1000V 10% Y5V P5mm

Features

High pressure resistance, low loss

Good frequency characteristics, with high stability

Special series structure is suitable for high voltage and long-term reliability

High current climbing rate and suitable for high current loop non-inductive structure

Insulation resistance, long use time

Specification

TOPMAY Part No TMCC02-103M1KVP5B
Rated Voltage 1000VDC
Capacitance 10nF
Tolerance +-20%
Material Type Y5V (Temperature. Characteristic: +22%,-82%)
Color

Blue Epoxy coating
Pitch 5mm(±1mm)
Diameter 10mm ±1mm
Operating Temperature Range –25℃～+105℃
Testing Using Condition Temperature: 15~35℃ 1KHz Humidity: 45%~ 75% Atmospheric pressure: 86~106Kpa
Withstand voltage 2000VDC voltage applied for 1 ~ 5 seconds without abnormality
Insulation resistance 60 seconds at DC 500V, I.R.≥ 6000 MΩ
Dissipation Factor( DF) ≤0.035

Applications

High voltage ceramic capacitors are used in high stability oscillating circuits as circuit capacitors and pad capacitors. And its main role is to remove high-frequency interference, so it is suitable for anion products, such as laser, X-ray machine, control equipment, igniter, transformer, power equipment, electrostatic spraying and other mechanical and electrical equipment need high voltage and high frequency.

Remarking

There are clear capacitance value code and voltage

Blue HV 103K1KV Ceramic Disc Capacitor 10nF 1000V 10% Y5V P5mm

Blue HV 103K1KV Ceramic Disc Capacitor 10nF 1000V 10% Y5V P5mm


Our series of strong products of capacitors and resistors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

Any more details, kindly contact us freely!
