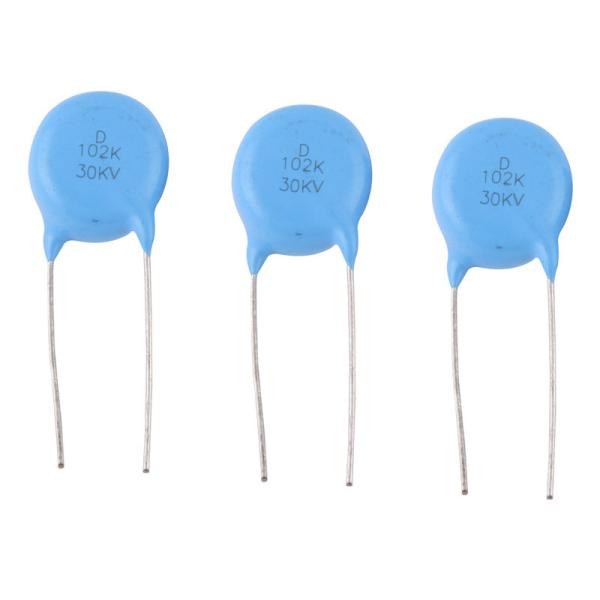

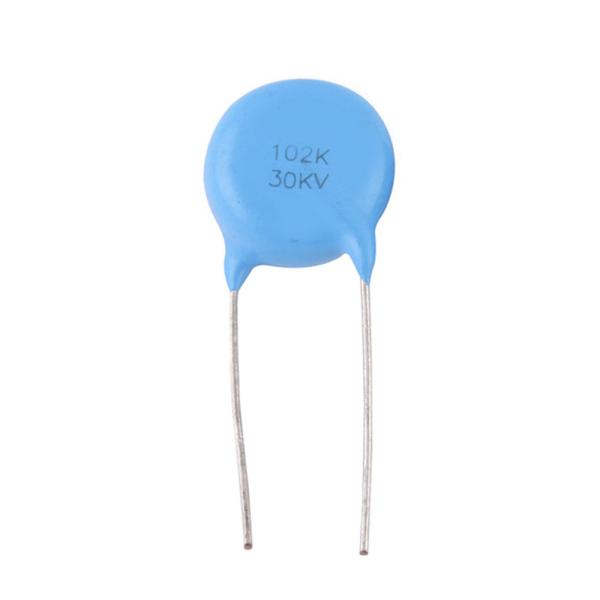

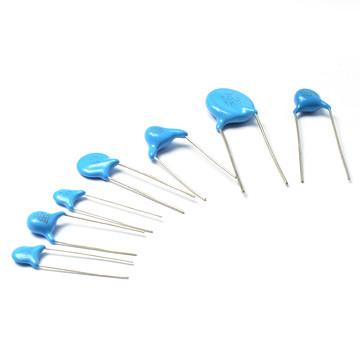

High Frequency Ceramic Capacitor 102 30KV For Welding Machine

High voltage ceramic capacitors is to belong to a kind of ceramic capacitors, are used to high dielectric constant of ceramics (barium titanate - titanium oxide) squeezed into a circular tube, the wafer or disk as a medium, coated metallic film (usually in the form of silver electrode through high heat sintering, tin copper clad steel wire, surface coating to protect the enamel, or with epoxy resin coating. The shape is blue wafer shape. Generally used in power systems, such as power system metering, energy storage, partial voltage and other products will use high voltage ceramic capacitors.

Part Number	TMCC02-102K30KVP10B		Specification	0.001uF 30KV
			Diameter	17mm±0.5mm
			Thickness	10.2mm±0.5mm
			Lead Length	25mm±1.0mm
			Pitch	12mm±0.5 mm
			Lead Diameter	0.8mm±0.05mm
			Coated Lead Length	3mm max
Material Characteristics		Electrical Performance
Y5T		Rated voltage: DC 30KV Standard Capacitance Range: 900pF~1100pF Testing Condition: (a) Testing Voltage: 36KV (b) Frequency: 1KHz (c) Temperature: 25℃±2℃ (d) Humidity: 70% Capacitance Tolerance: ±10% Loss Tangent: tg ≤0.3% Insulation Resistance (IR) ≥10000MΩmin High Voltage Withstand Testing: DC 1.2 times high voltage, no breakdown or flashover

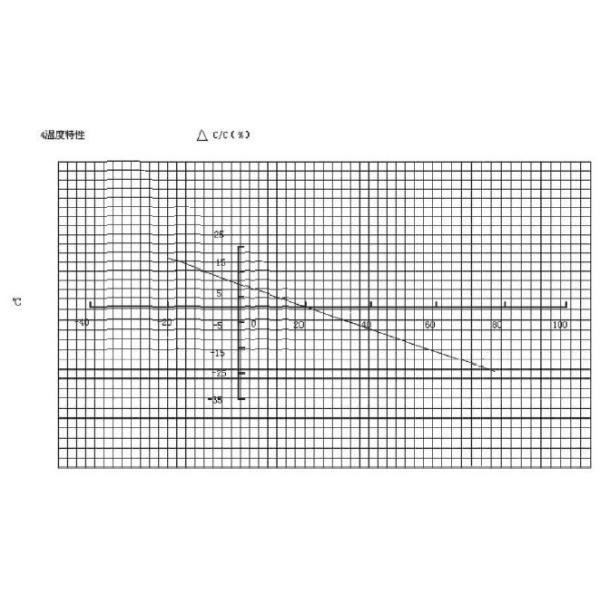

Temperature Change rate
Packing Way		Inner packing: Plastic bag Outer packing: Carton
Storage condition		Temperature: 0~40℃ Humidity: ＜80% RH
Standard		SJ/T10995-96 GB9599-88

About Y5T ceramic
Y5T is a Class II General Ceramics with good performance. It’s temperature variation of capacitance is within +20/-33% from -25°C to

+85°C. Dissipation factor is less than 1%, insulation resistance is over 100 000MΩ.

Ceramic Dielectric Properties

Precautions

(1) During transportation and storage

• Do not transport or store where the capacitor will be exposed to high temperature or high humidity.
• Do not expose to poisonous gases such as H₂SO₄, HCL or HNO₃.
• Avoid excessive impact such as that caused by falling.

(2) During operation

• Avoid contact with electrolytes such as perspiration. Do not touch with bare hands.
• Avoid excessive impact such as that caused by falling.
• Do not solder on stud terminals.
• Do not re-machine the terminals.

(3) Usage

• When the capacitor is used for high-speed pulses such as with laser, make sure that the impressed voltage (peak-to-peak volt-age) is within the capacitor’s rated specifications.
• Make sure that the capacitor is not exposed to radiant heat from chambers or transformers.
