High Frequency Polypropylene Film Capacitor For EMI Filtering X2 0.68uF 275VAC LS22.5mm
High Frequency Polypropylene Film Capacitor For EMI Filtering X2 0.68uF 275VAC LS22.5mm
High Frequency Polypropylene Film Capacitor For EMI Filtering X2 0.68uF 275VAC LS22.5mm
High Frequency Polypropylene Film Capacitor For EMI Filtering X2 0.68uF 275VAC LS22.5mm
High Frequency Polypropylene Film Capacitor For EMI Filtering X2 0.68uF 275VAC LS22.5mm
High Frequency Polypropylene Film Capacitor For EMI Filtering X2 0.68uF 275VAC LS22.5mm
Specifications
Brand Name :
ETOPMAY
Model Number :
TMCF18
Certification :
SGS( RoHS), UL
Place of Origin :
China
MOQ :
5000pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
12~15 working days
Packaging Details :
Bulk, Tape
Capacitance :
0.68uF
Voltage :
275VAC
Lead Space :
22.5mm
Tolerance :
+/-10%
Weight :
26.5mm
Height :
19mm
Thickness :
10mm
Climatic Category :
40/110/21
Description

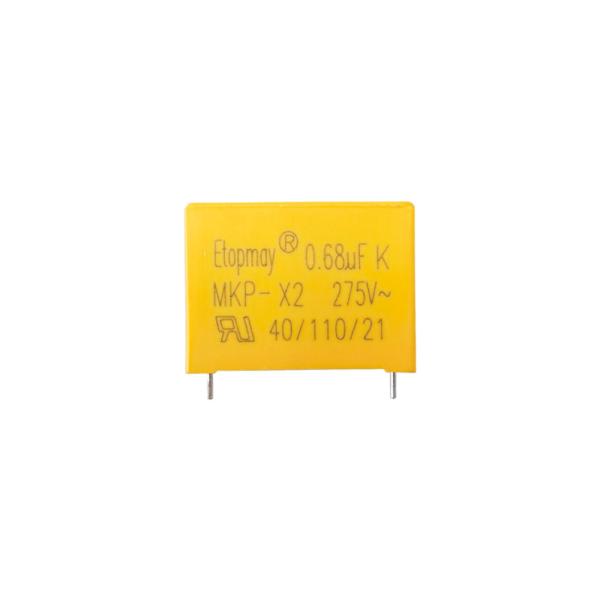

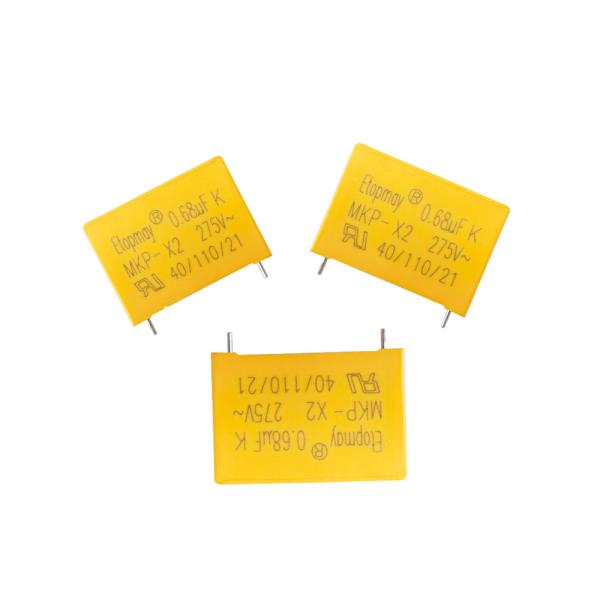

High Frequency Polypropylene Film Capacitor for EMI Filtering X2 0.68uF 275VAC LS22.5mm

The most conventional role of X2 safety capacitors is to resist electromagnetic interference. They are generally connected in series between the neutral and live wires, and are suitable for high frequency, DC, AC, coupling, and jumper pulse circuits.

Features

  • Box type provides the identical outer appearance
  • Very Low Loss at high frequency, suitable for high current
  • High Insulation resistance, long life due to self-healing effect
  • Withstanding 2.5kV impulse voltage, Class X2
  • As an across-the-line type noise suppression capacitor, and Suitable for AC purpose

Outline Drawing

Non-inductive, wound with metallized polypropylene film as the

dielectric/electrode with copper-clad steel leads and encapsulated in a plastic case sealed with epoxy resin.

Specifications

Reference Standard GB/T14472-1998 (IEC 60384-14)

High Frequency Polypropylene Film Capacitor For EMI Filtering X2 0.68uF 275VAC LS22.5mm
Climatic Category 40/110/21
Rated Voltage 275VAC
Capacitance Range 0.68uF
Capacitance Tolerance 10%(K)
Voltage Proof 4.3UR(5s)
Dissipation Factor

≤0.15% CR ≤ 1.0uF

≤0.3% CR >1.0uF(20℃ ,10KHz)

Insulation Resistance

(20℃ ,1min)

≥30000MΩ (CR≤ 0.33 uF)

≥10000S (CR＞0.33 uF)

Dimensions

Item W±0.5 H±0.5 T±0.5 D±0.05 L±1 P±0.5
X2 684K/330VAC 26.5 19.0 10 0.8 22 22.5

Part Number Naming Rule:

TMCF 18 _ 684 K 275V P22.5 B
Product Category Sub-Series 　 Capacitance Tolerance-10% Voltage Pitch Packing-bulk

High Frequency Polypropylene Film Capacitor For EMI Filtering X2 0.68uF 275VAC LS22.5mm

High Frequency Polypropylene Film Capacitor For EMI Filtering X2 0.68uF 275VAC LS22.5mm

High Frequency Polypropylene Film Capacitor For EMI Filtering X2 0.68uF 275VAC LS22.5mm

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

More details, Kindly contact us freely!
